Use
19

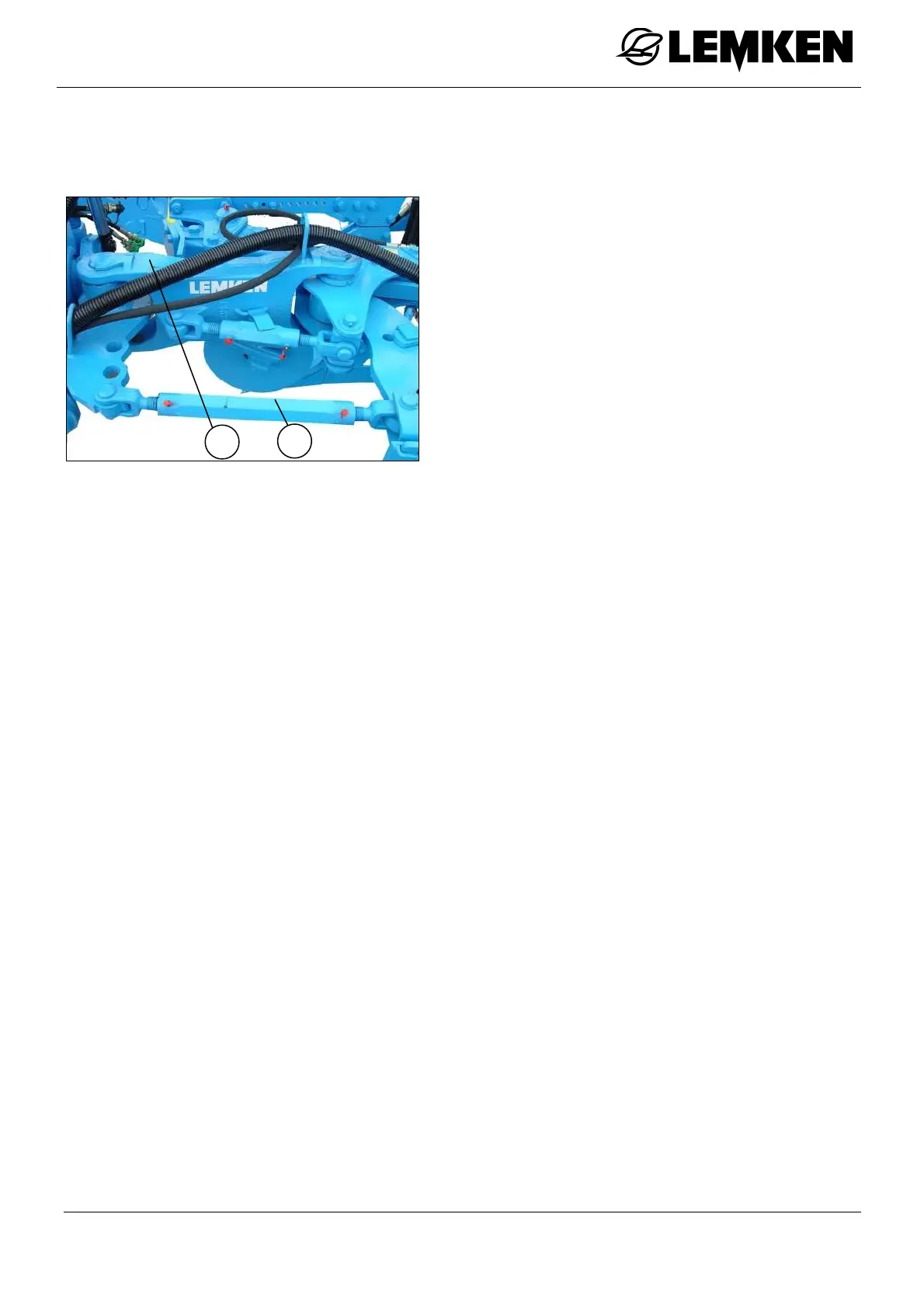

4.3 Adjustment of the outer Turnbuckle of the Adjustment Centre Op-
tiquick
The outer turnbuckle (2) has been adjusted
to the extreme to allow compact transport
on lorries. Adjust this turnbuckle to a length
similar to that of the main link (3). Final ad-
justments can take place in the field.
4.4 Length of the Top Link
Lower plough and adjust length of top link, so that the first body is approx. 1 to 3
cm higher than the rear one.
When the top link is fitted “in” the slotted hole, it must be adjusted with lowered
plough until the top link pin is unloaded but is still positioned in front of the slotted
hole and the plough is also 1 to 3 cm higher in front than in the rear.
4.5 Depth Control Wheel resp. Depth and Transport Wheel
Adjust the depth control wheel / depth and transport wheel to obtain the intended
working depth.
Swing the wheel rearwards against its stop and measure the vertical distance be-
tween wheel and ground. Make adjustments as required.
3
2
