8.13 Depth Control Wheel and Depth and Transport Wheel
8.13.1 General Instructions

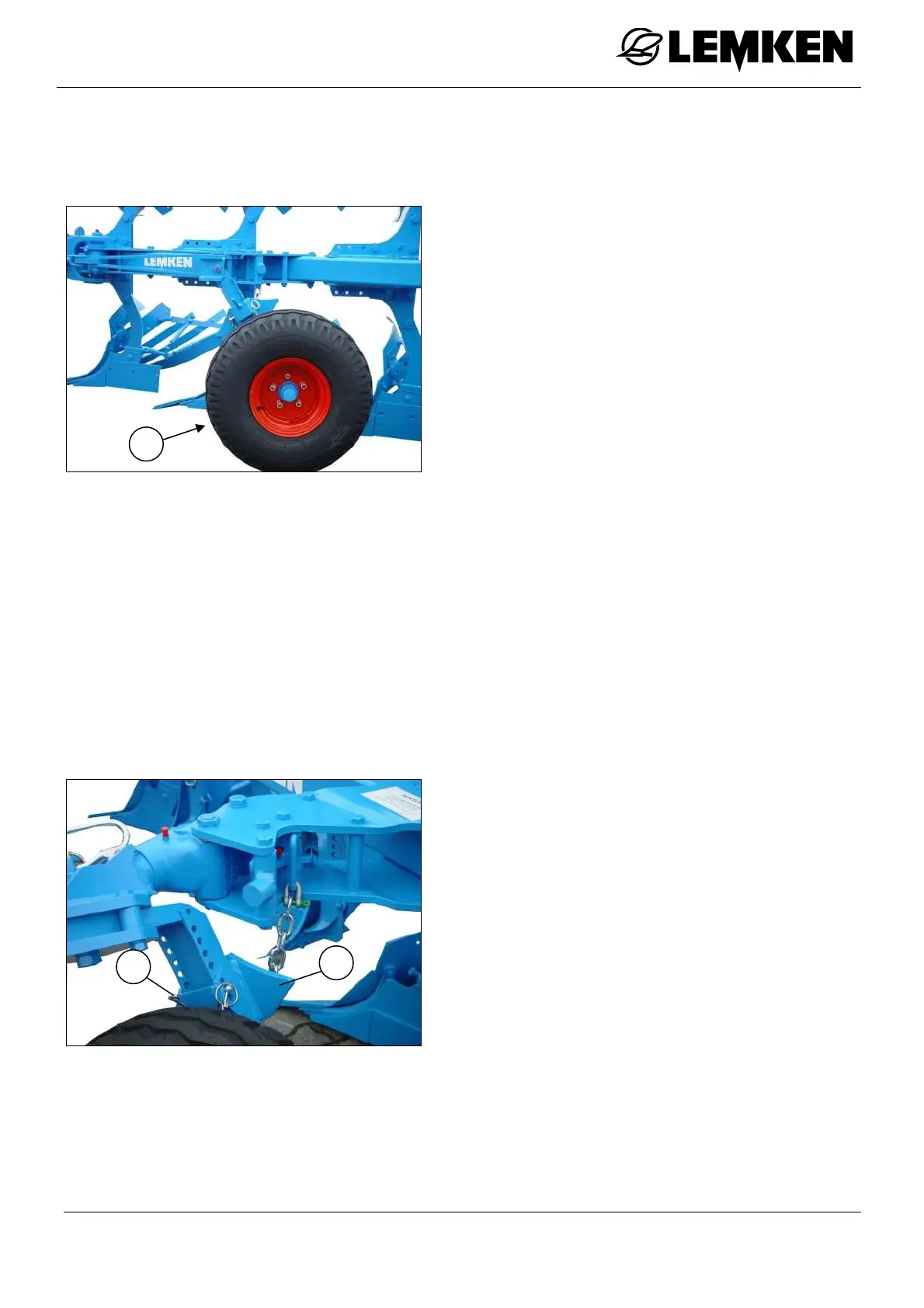

The plough is available with depth control
wheel (1) or depth and transport wheel.
The depth and transport wheel is required
when the front axle - especially for trans-
port - is unloaded too much and so the
steerability of the tractor is no more en-
sured.
The depth control wheel (1) respectively
the depth and transport wheel should work
as control wheel, only.
The tractor hydraulics must be adjusted in accordance to that.
To prevent that the working depth of the plough with Non-Stop overload safety
device (X-version) increases after tripping, the depth wheel should be loaded with
more weight of the plough.
8.13.2 Depth Adjustment
a) Version with pin adjustment
Slide stop (1) to adjust the working depth
after removing the adjuster pin (2).
Slide stop (1) down towards the wheel axle
to increase the working depth.
Slide stop (1) up towards the pivot axle to
decrease the working depth.
Fit adjuster pin (2) after adjustment and
secure.
1
1
2
