9 OVERLOAD SAFETY DEVICES
9.1 Shearbolt Device

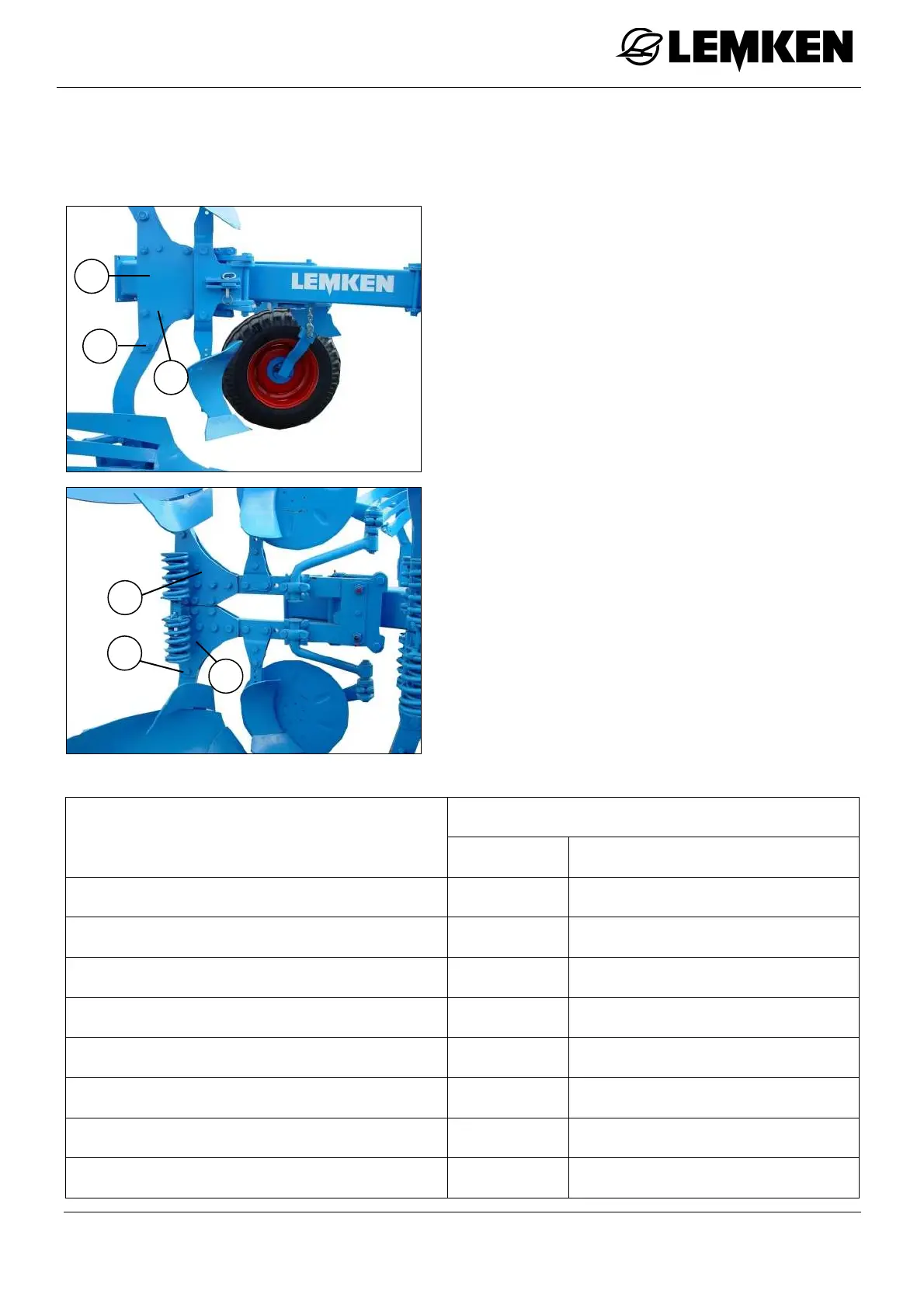

With the exception of the HX-version the
plough is fitted with shearbolts (1) inside
the leg brackets (2) as standard.
After a break of the shearbolt (1), swing
back the tripped plough body with lifted
plough after loosening the pivot bolt (3)
and removing the shearbolt sections.
Fit new shearbolt and tighten it together
with the pivot bolt (3).
Use only shearbolts of the following di-
mensions and quality, as only these bolts
ensure an efficient protection against dam-
age:
Shearbolt
Type of Plough
Part No Dimension
VariOpal 5 and 6 301 3407 M 12X70 8.8
VariOpal 5 X and 6 X 301 3399 M 12X65 10.9
VariOpal 7 and 8 301 3424 M 12X75 LS 57X15 - 10.9
VariOpal 7 X and 8 X 301 3595 M 14X70 LS 51X15 - 10.9
VariOpal 9 301 3992 M 16X100 LS 70X25 - 8.8
VariOpal 9 (35) 301 3596 M 14X75 LS 56X15 - 8.8
VariOpal 9 (40) 301 3607 M 14X85 LS 61X20 - 10.9
VariOpal 9 X 301 3595 M 14X70 LS 51X15 - 10.9
1
2
3
2
3
1
