8.7.2 Angle Adjustment

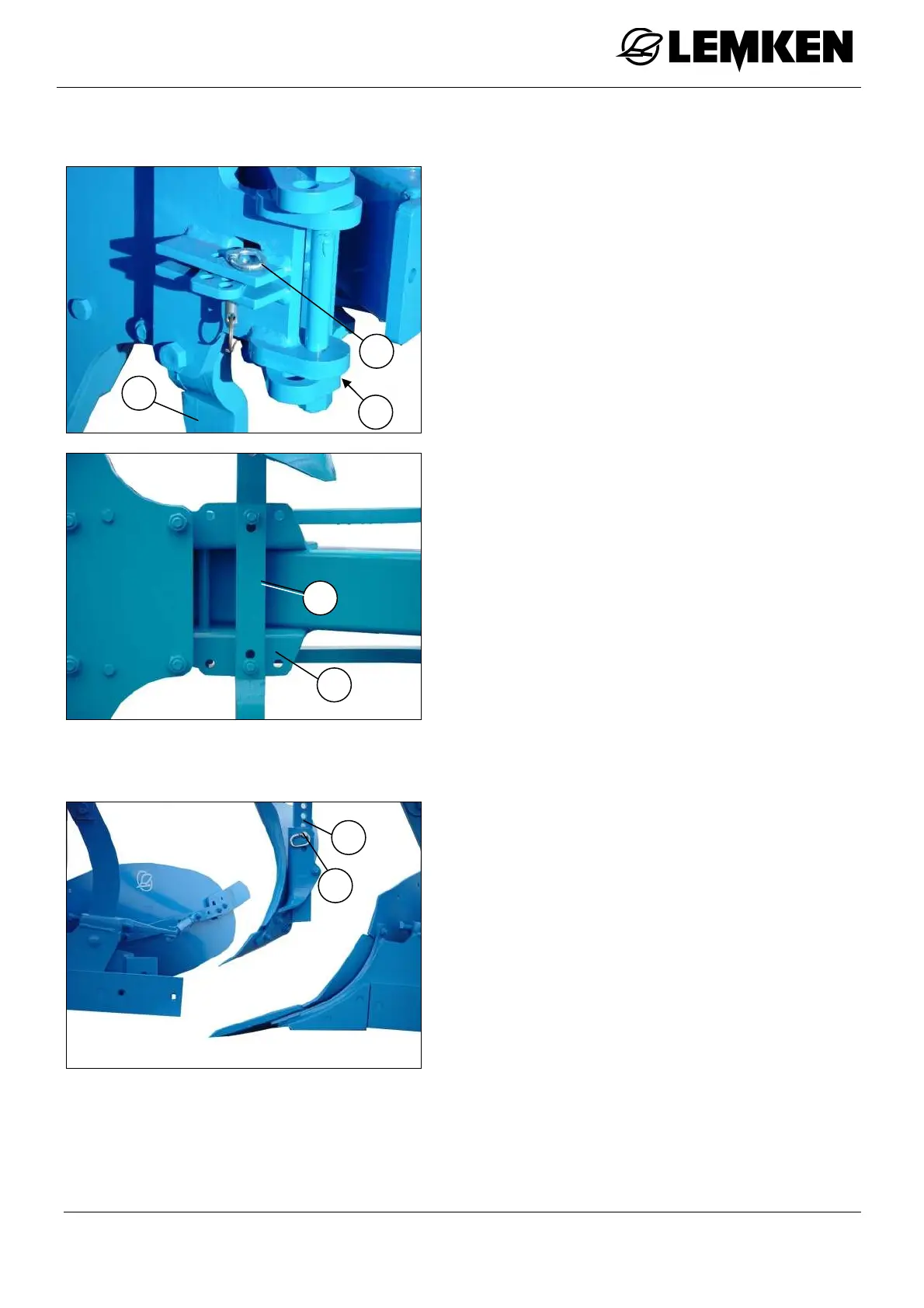

The angle of the skimmers which are fitted
with their flat stalk (4) directly to the stalk
bracket (5) or the beam of the X-ploughs,
cannot be changed.
Otherwise the angle is adjustable either
−
−−
− variably by means of clamp screws with
the skimmers with round stalk or
−
−−
− in steps by means of a pin (7) with
skimmers with flat stalks (4) and angle
adjustment (8).
8.7.3 Working Depth
With skimmers with flat stalk (4) the work-
ing depth will be adjusted by means of the
pin (9).
With skimmers with round stalk the work-
ing depth will be adjusted by means of
clamp screws. After that tighten clamp
screws carefully again.
7
4
8
4
5
4
9
