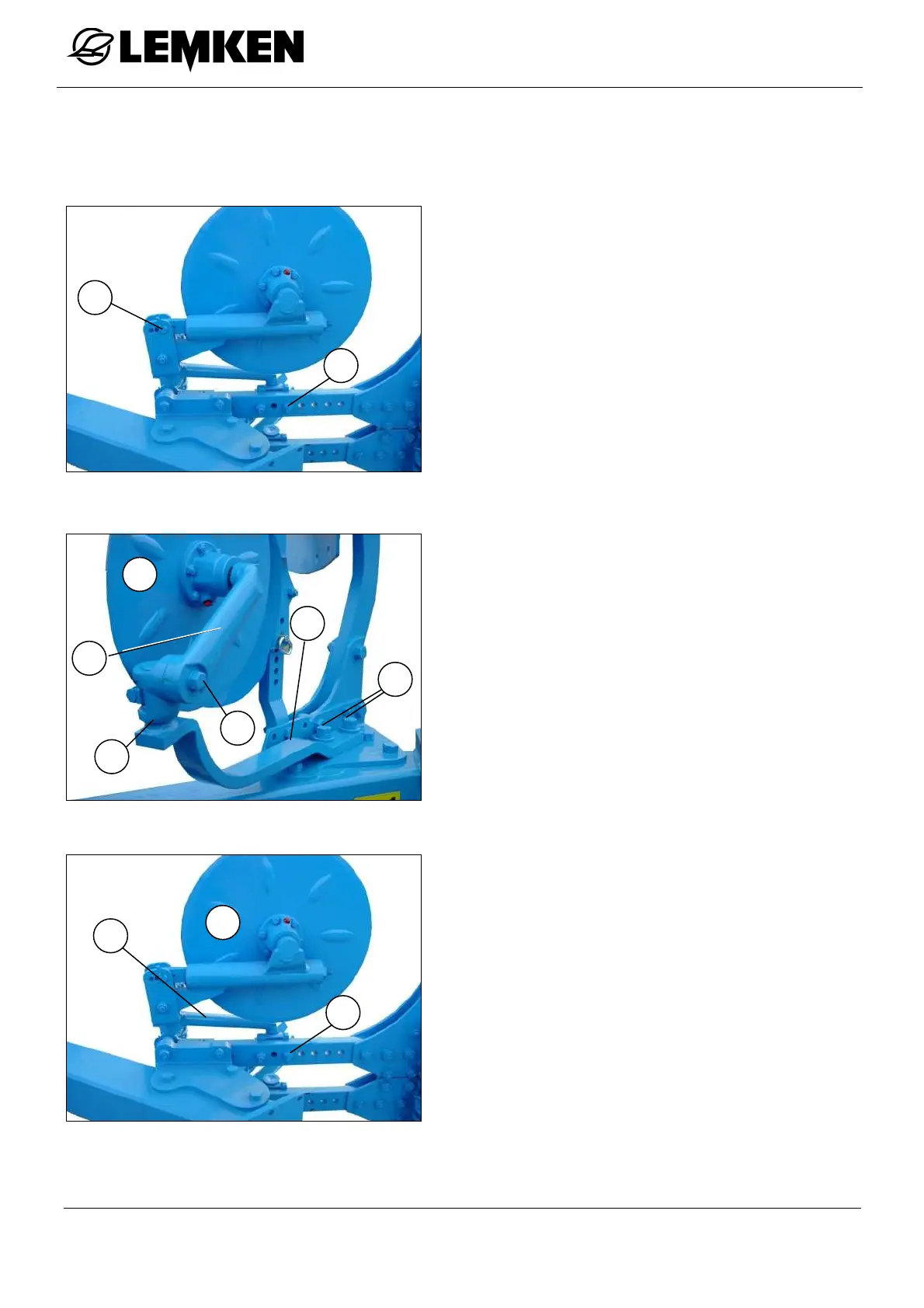

8.10 Disc Coulters
8.10.1 General Instructions
When fitted, disc coulters should be set to
a working depth of 7 - 9 cm and 2 -
to the landslide of the body. With the X-
ploughs the disc coulter will be fitted to the
beam by means of the holder and bolts (1).
The front bores in the beam are provided
for the disc coulters. If skimmers are fitted
the disc coulters must always be fitted in
front of the skimmers.
8.10.2 Working depth
Adjust the depth of the rigid disc coulter by
slackening the screw (2) and setting the
coulter arm (3) as required. Before tighten-
ing the screw (2), it must be ensured that
the serrations mesh correctly.
Use pin (5) to adjust the depth of the
spring-loaded disc coulters (X-ploughs).
8.10.3 Lateral distance
For the lateral adjustment of the disc coul-
ter (6), slacken bolts (1 resp. 8) and move
round or flat stalk (7) to give required set-
ting.
6
7
8
2
3
4
1
5
1
6
7
