Adjustments
41

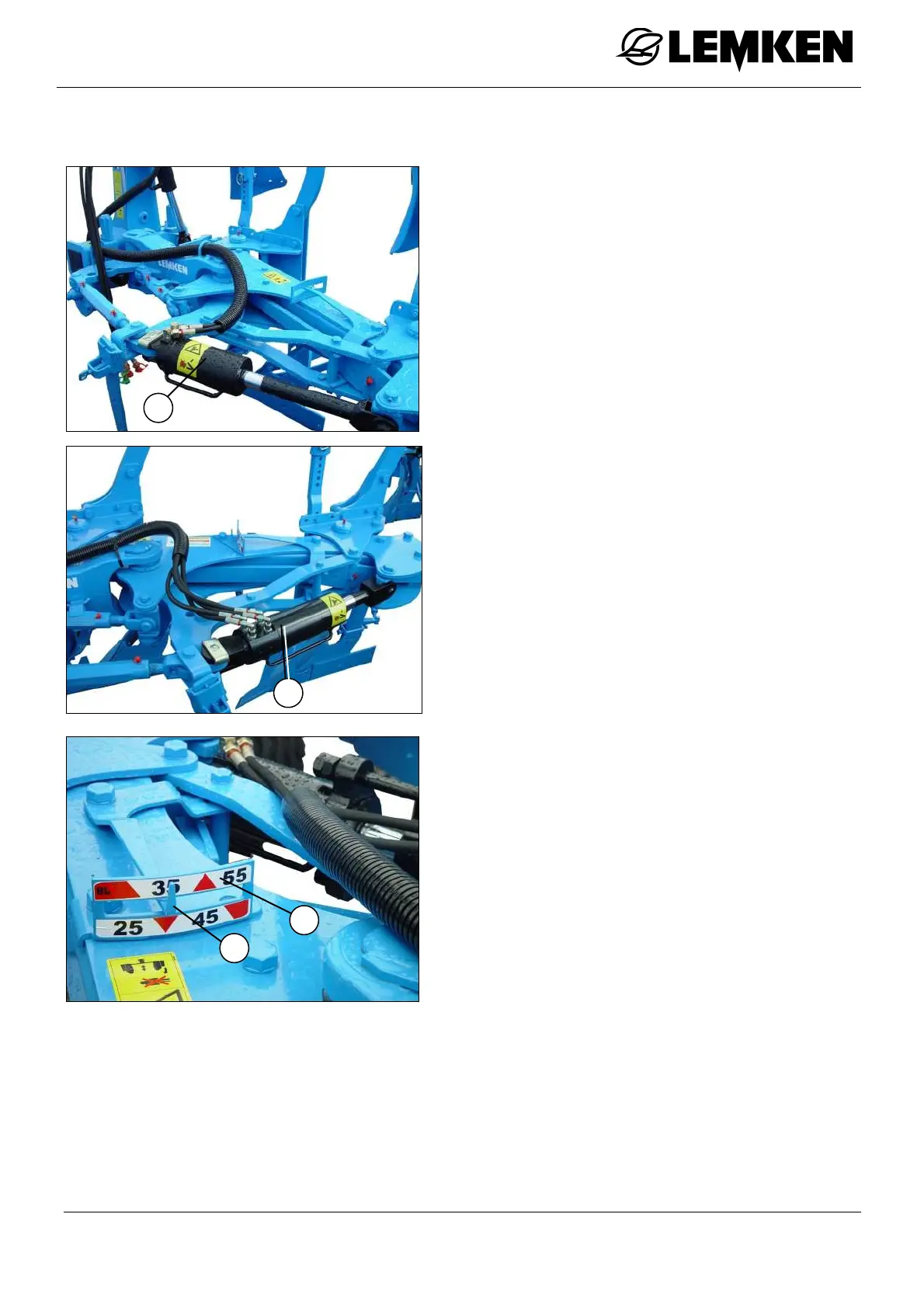

8.6.2 Working Width per Body
After the basic adjustment has been car-
ried through by means of the OPTIQUICK-
adjustment (Trulign), the working width per
body can be adjusted from the tractor seat
by means of a Memory ram (1) or an ad-
juster ram (2).
In connection with the Memory ram or the
adjuster ram
− open piston rod to decrease the working
width per body and
− close piston rod to increase the working
width per body!
The adjusted working width is shown on
the scale (4) by means of pointers (3).
