Adjustments
36
8.3 Angular adjustment
8.3.1 General information
When ploughing, the base blade should be almost vertical to the ground as seen
from the direction of travel. If this is not the case, then the angular adjustment
must be altered as described below.

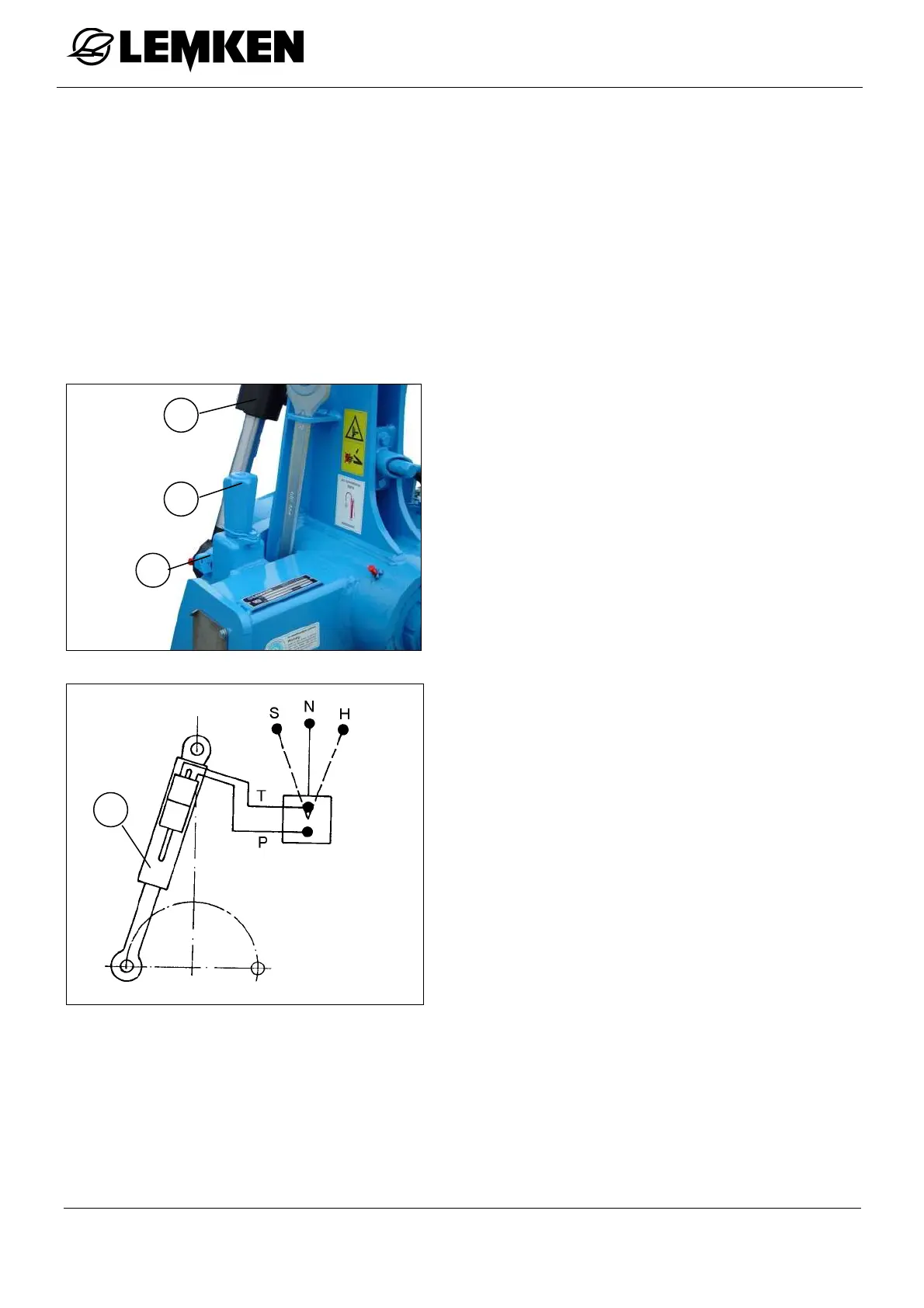

8.3.2 Angular adjustment (double acting)
a) Raise plough by several centimetres
(approx. 5 - 10 cm).
b) Briefly apply pressure to hydraulic hose
that leads to hose terminal P on the
slewing cylinder (1). While doing so the
stopper arm (2) moves a few centime-
tres away from the end stop.
c) Use adjusting nut (3) to set angular ad-
justment as follows.
d) Switch actuation lever on tractor control
unit to opposite pressure position. This
causes the plough frame and thus the
stopper arm (2) to turn back again.
e) Lower plough again.
Check whether the setting is good enough.
If not, repeat setting as described above.
1
1
