Adjustments
47

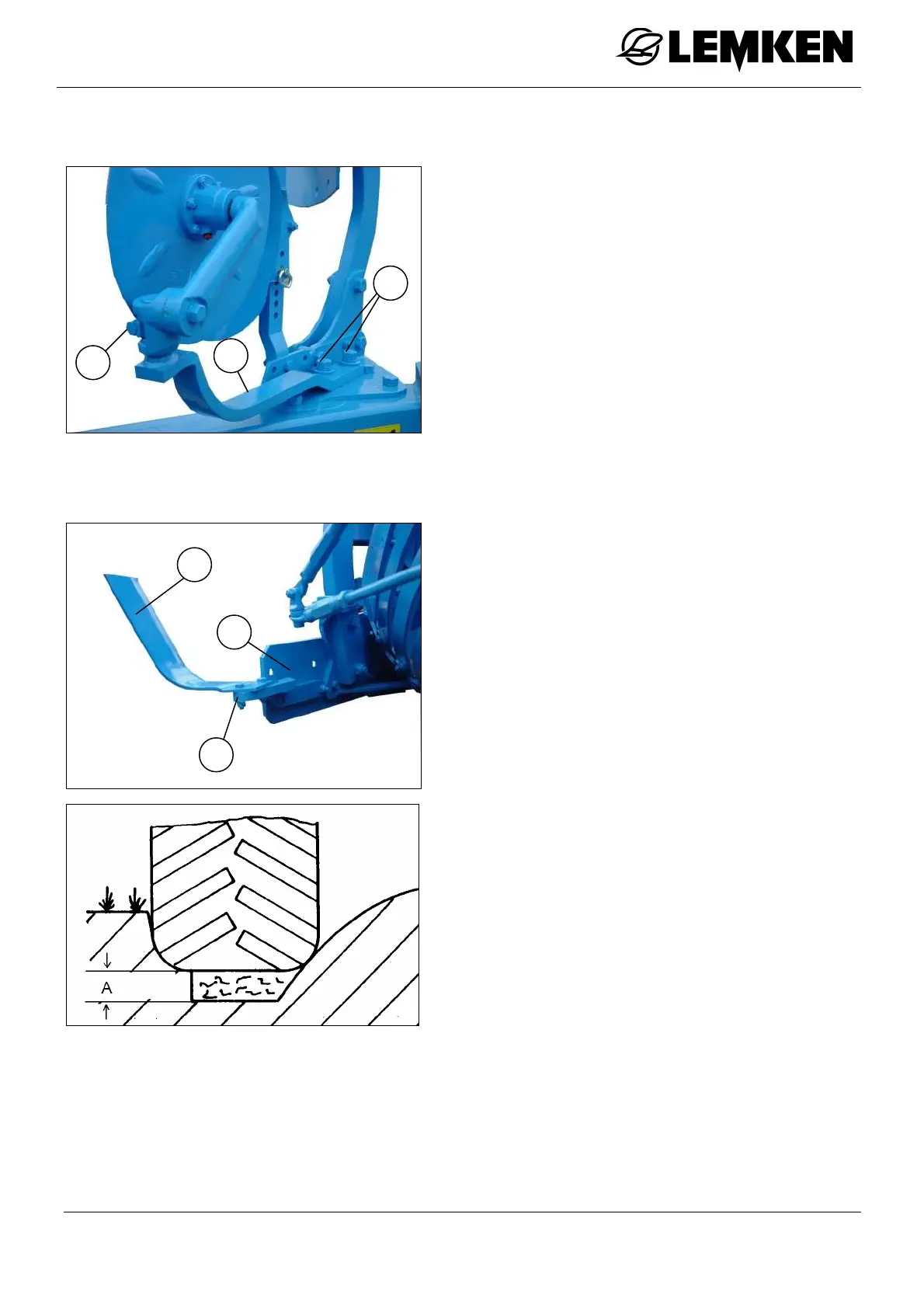

8.10.4 Swivelling limitation
By means of the adjustable stop (9) the
lateral swivelling range of the disc coulter
will be adjusted.
IMPORTANT: All slackened bolts and nuts
must be tightened carefully
after adjustment. Never
drive backwards with the
plough when the disc coul-
ters are still in the ground.
8.11 Wide Furrow Cutter
Fit wide furrow cutters (1) to the landslide
(2) of each rear body.
If the plough is equipped with C-bodies, to
each rear body the landslide (part No. 340
1450) must be fitted so that the holder (3)
of the wide furrow cutter can be fitted.
The wide furrow cutter increases the fur-
row of the rear bodies. It can be used in
light and medium soil conditions. The wide
furrow cutter provides a 15 cm wider but
less deep furrow.
In heavy soil conditions the ploughed land
may look uneven. This will be caused by
the 15 cm wider furrow of the rear body
compared to the others and the effect that
a part of the soil in the furrow will be re-
consolidated by the tractor tyres. Due to
that the next furrow slice will be positioned
a little shallower. This has only an inessen-
tial influence to the following working
passes.
9
7
8
2
1
3
