4.9.2 Height Adjustment of the Drawbar
The drawbar (1) can be set in two different
heigth positions.
Fundamentally the top position should be
chosen to reach a better entry of the
implement. The lower position should be
chosen, only when the implement cannot
be lifted sufficiently for the turning
procedure.

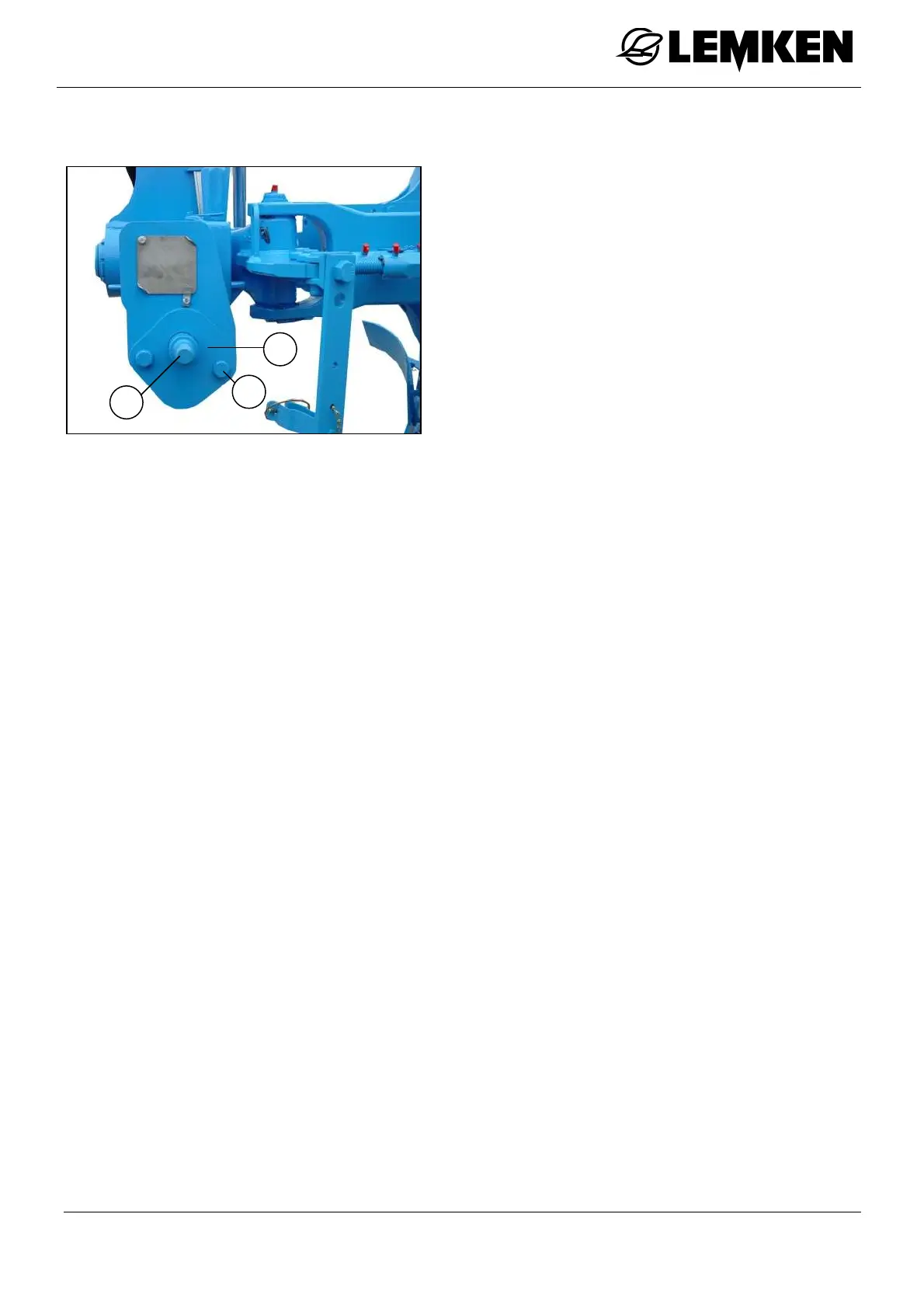

If it is required to change the position of the
drawbar, the bolts (2) must be loosened,
the plates (3) with drawbar turned by 180°
and then fitted again.
The nuts of the bolts (2) must be tightened
by a tightening torque of 580 Nm and
secured with Loctite.
