Use
22

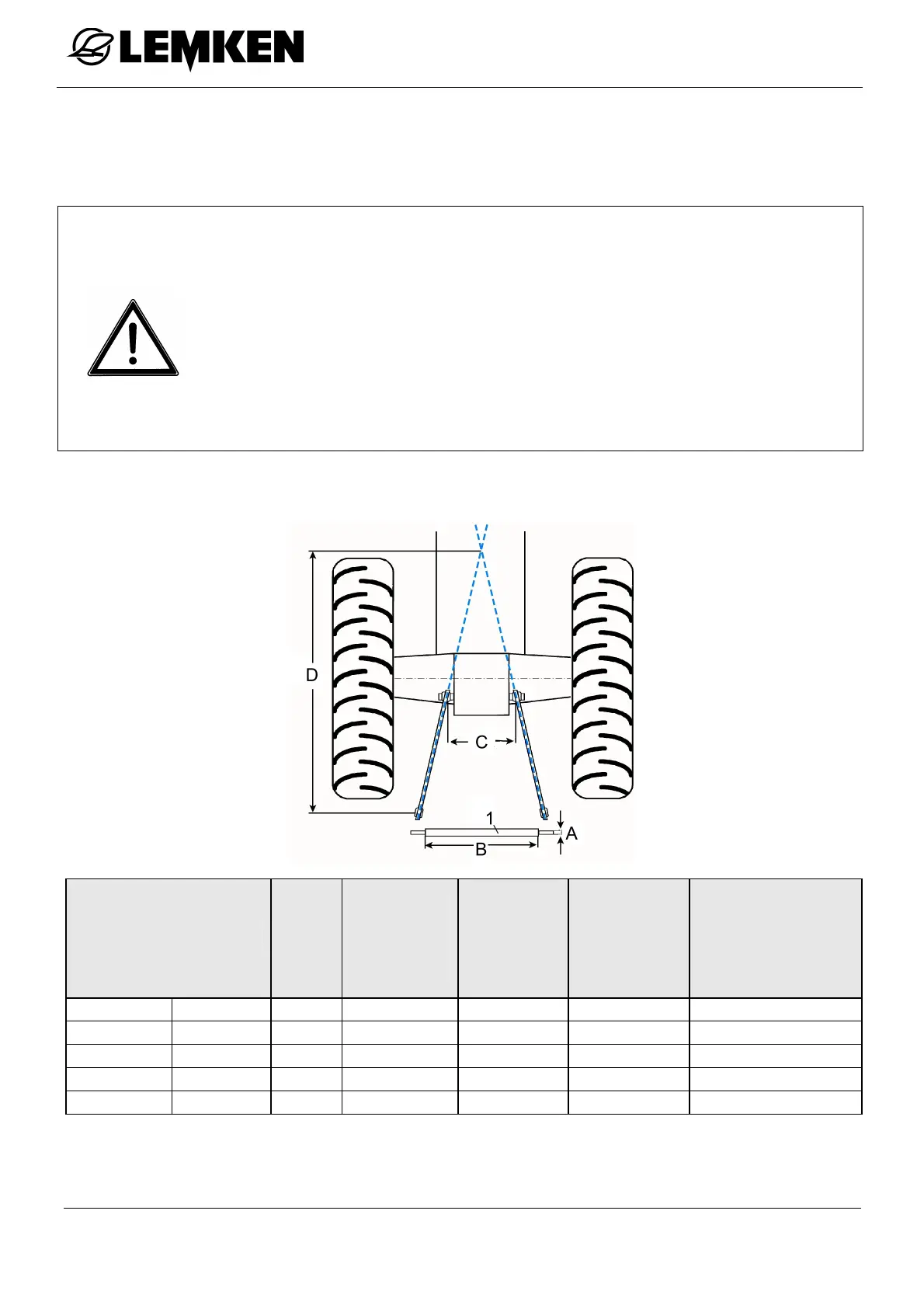

4.9 Three Point Attachment
4.9.1 General information
WARNING
Loss of the implement
The tractor's three-point linkage category and the category of the
draw rail and top link pin must match. Otherwise, the draw rail and
the top link pin may slip out of the linkage when driving over un-
even ground or due to vibrations.
• Always ensure that the three-point linkage category exactly
matches the diameter of the draw rail and the top link pins.
The maximum permissible tractor outputs and dimensions as per ISO 730-1 for
the corresponding category are available in the following table.
Tractor output Cat.
Pintle di-
ameter of
bar shaft
(mm)
Length of
bar shaft
(shoulder
distance)
(mm)
Tractor-lower
link distance
(mm)
Distance between
draw-in rail and
lower link intersect-
ing point extension
(mm)
kW HP A B C D
30 - 92 40 - 125 2 28 825 390 - 505 1800 - 2400
60 - 185 82 - 251 3N 36.6 825 390 - 505 1800 - 2400
60 - 185 82 - 251 3 36.6 965 480 - 635 1900 - 2700
110 - 350 150 - 476 4N 50.8 952 480 - 635 1900 - 2700
