Adjustments
39

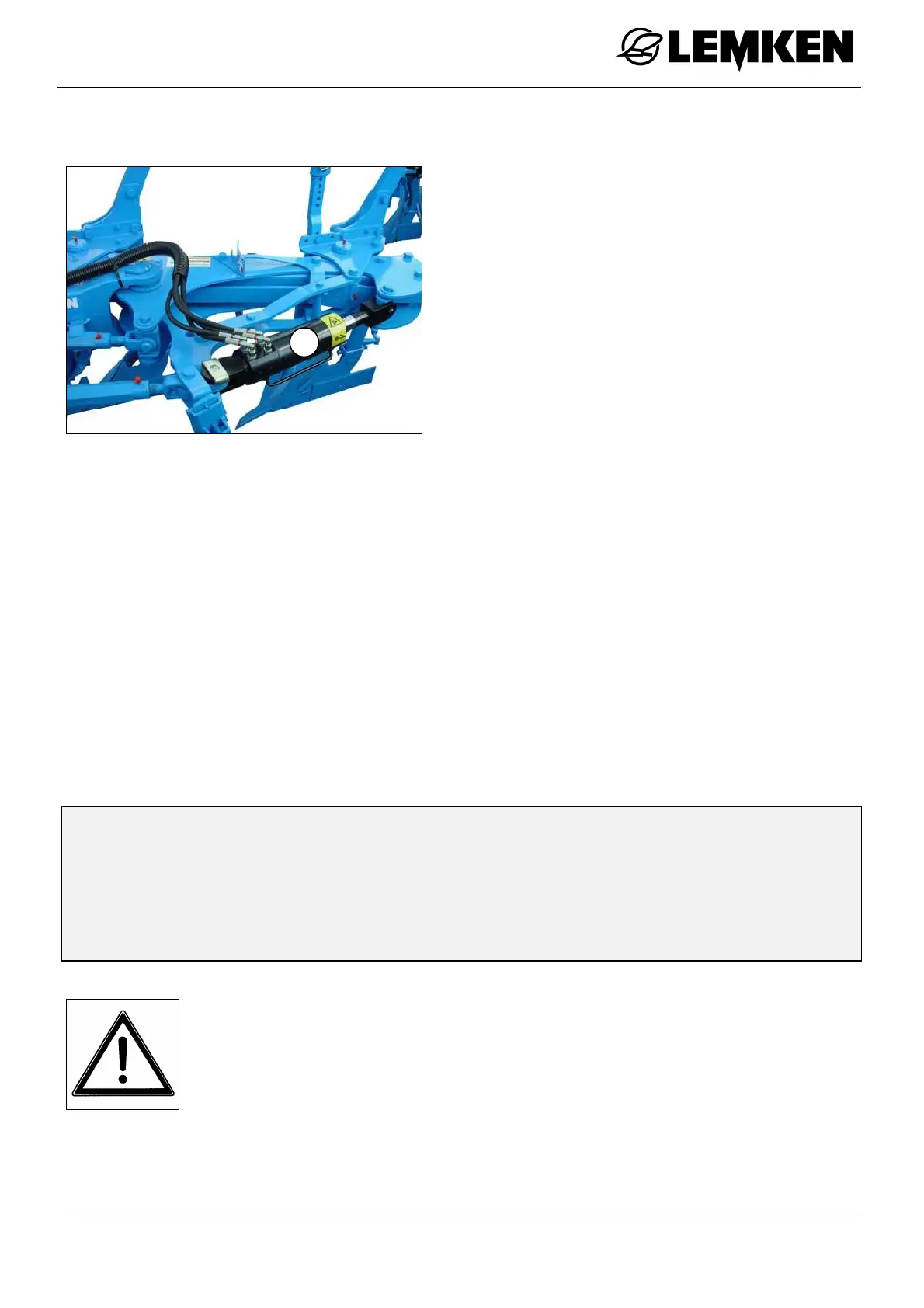

8.5 Hydraulic Frame Swing-in Assembly - Memory ram
The Memory ram is connected via 2 hoses
to the turnover ram and via 2 further hoses
with a separate double acting tractor spool
valve.
Independently it is possible with the Memory ram to (1)
− swing-in and -out the plough frame for sufficient clearance between plough and
ground during the turnover operation and
− to adjust the working width per body from the tractor seat. See "Working Width
per Body"!
For turning the plough frame set connection P of the turnover ram under pressure:
The plough frame swings-in, will be turned by approximately 180 ° and swings-out
again.
Set the connection P of the turnover ram under pressure until the plough frame is
turned completely and swings-out again!
IMPORTANT! When changing the working width the three-point linkage of the
tractor will be shifted laterally to adapt the front furrow width and
the tractor-plough-alignment. Therefore ensure that the check
chains or similar allows always sufficient lateral movement of the
lower links.
• Read and adhere to the General Safety Instructions as well as
to the Instructions 'Hydraulic Equipment'!
