Adjustments
52

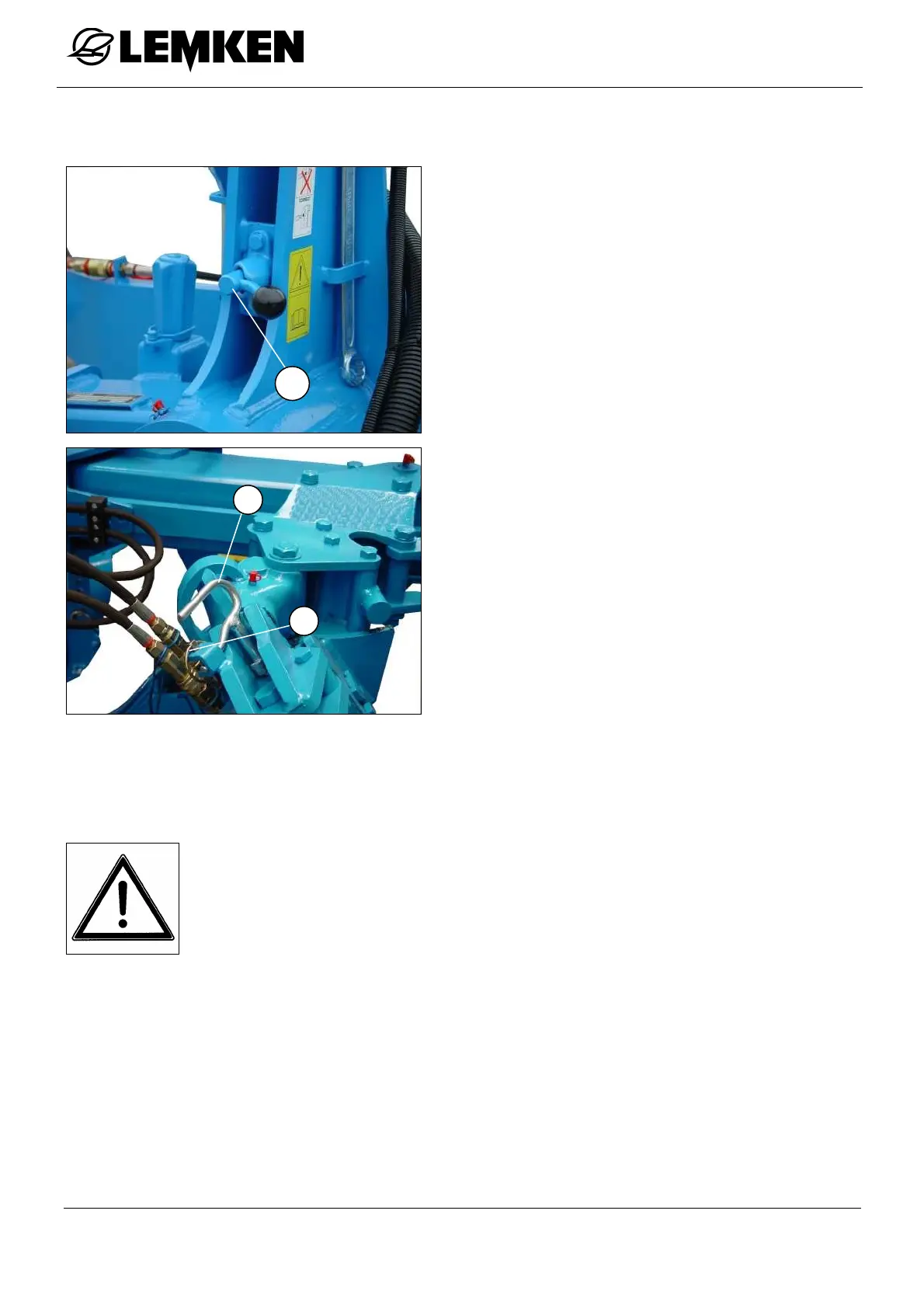

8.13.5 Converting uni wheel from transport position into working position
−
−−
− Connect and secure upper link to mast!
−
−−
− Raise plough slightly and swivel locking
pin (5) out through approx. 180°. The
handle must engage at the front into the
recess, to ensure that the locking pin
does not slide back again of its own ac-
cord!
−
−−
− Rotate plough into working position!
−
−−
− Remove pin (3), swivel uni wheel
through approx. 90° towards plough
frame and use pin (3) to lock it in this
position. Lock pin in place using split ring
(4)!
−
−−
− Connect chain to gear wheel again!
−
−−
− Remove protective caps from plug and
socket connectors, detach hydraulic
plugs and connect hydraulic hoses
again!
• Read and observe the General Safety Instructions as well as
the ‘Hydraulic System Safety Instructions’ and the ‘Tyre Safety
Instructions’!
• Risk of crushing and shearing in steering lock area, keep to a
safe distance!
• Never exceed the maximum air inflation pressures!
