8.2 Tractor/Plough Alignment

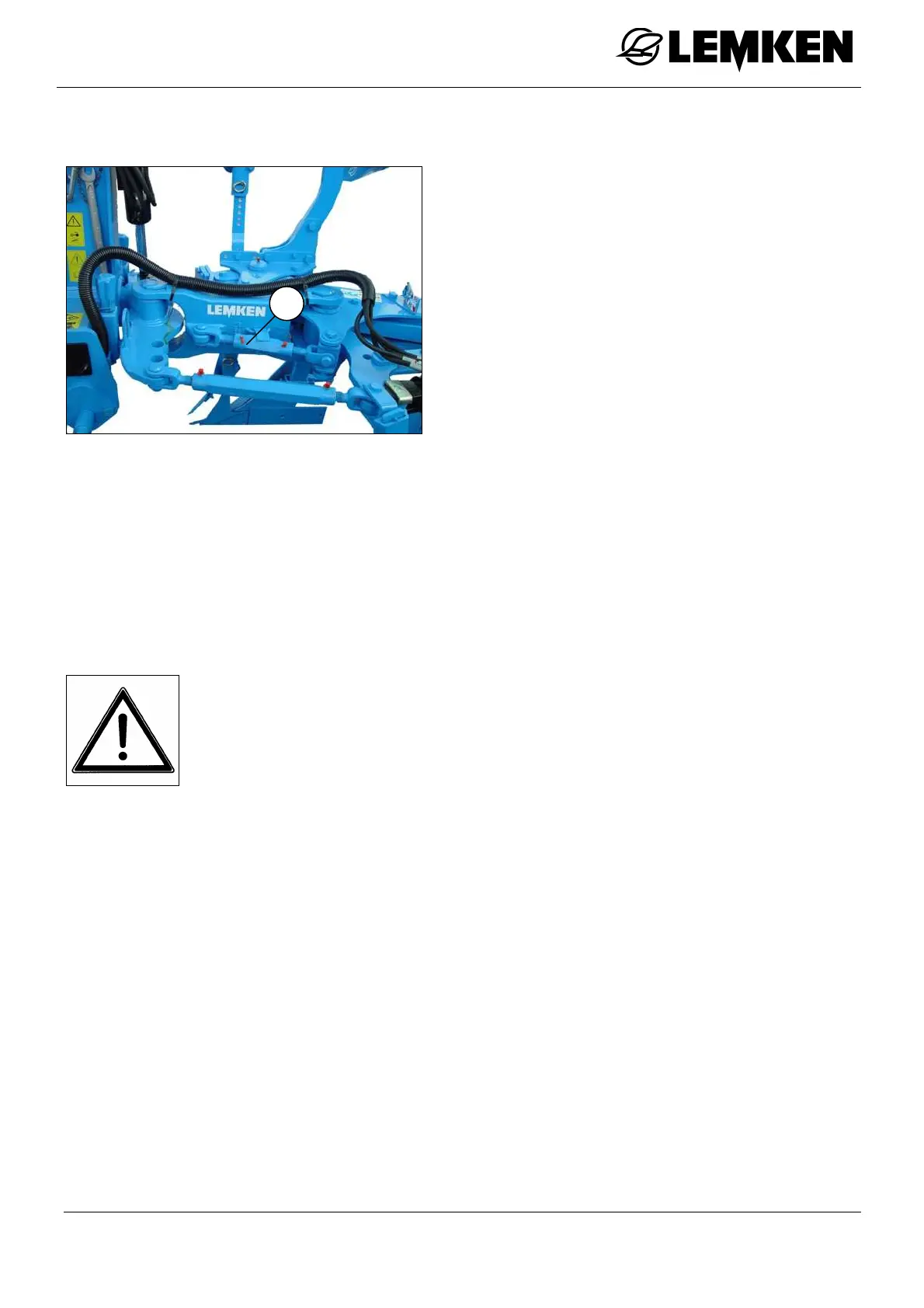

Adjust the tractor/plough alignment by
means of the inner turnbuckle (2), so that
there is no lateral draw.
Tractor pulls to the ploughed land
=> lengthen inner turnbuckle (2)!
Tractor pulls to the unploughed land
=> shorten inner turnbuckle (2)!
It is always positive to adjust the inner turnbuckle as short as possible (saving of
turning energy, low oil heating, higher lift height, lower landslide wear and lower
tractive-force requirement).
The inner turnbuckle is adjusted too short when the tractor runs into the ploughed
land, the lower links are no more free respectively the lower links or the headstock
touch parts of the tractor.
• Read and adhere to the Safety Instructions!
• There is a pinch point between hydraulic ram and adjuster slee-
ve. Keep distance!
• In combination with the hydraulic frame swing-in assembly the plough frame
swings-in first and then out again after turnover operation!
