Attachment Arm
60

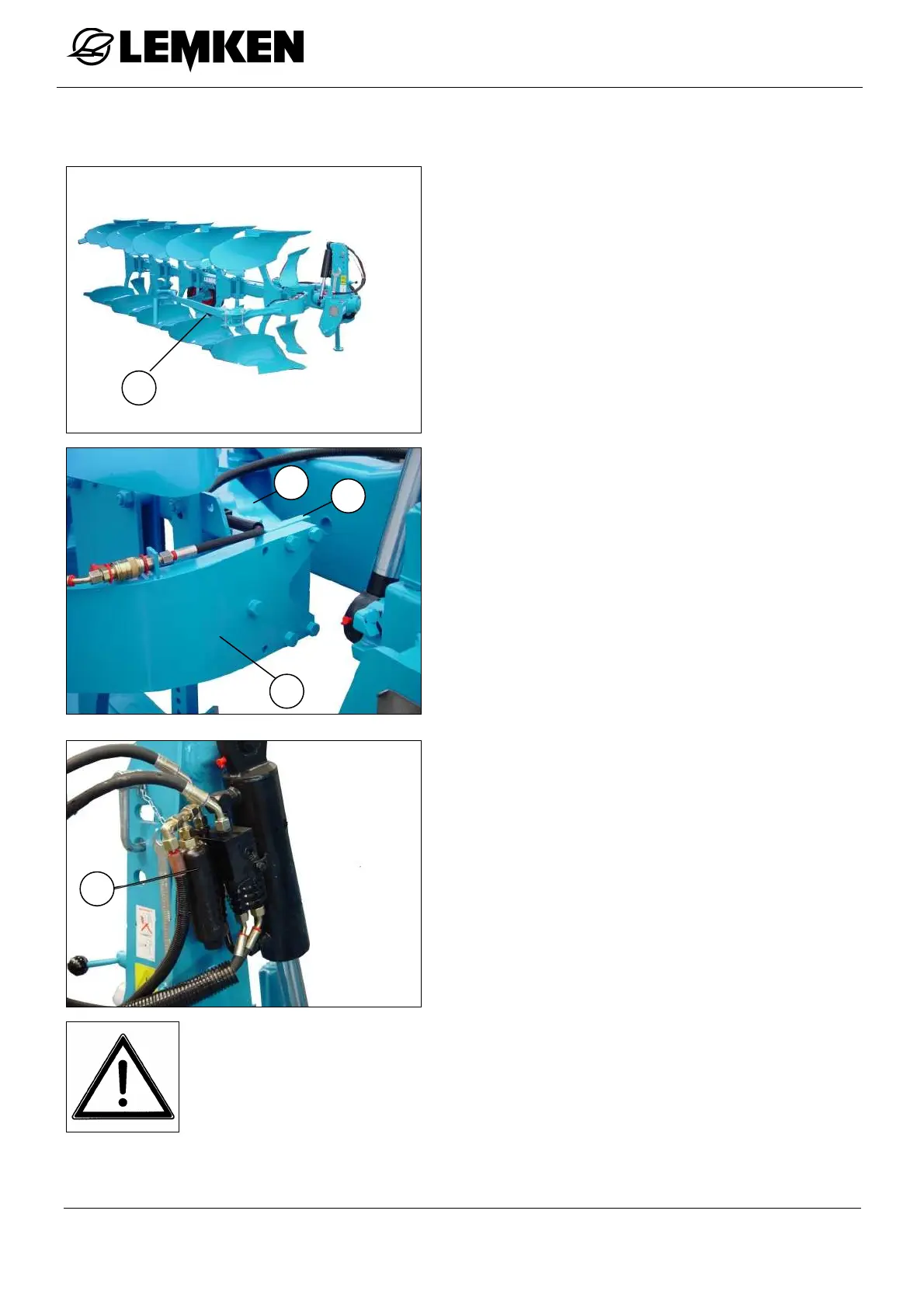

10 ATTACHMENT ARM
The attachment arm (1) will be fitted to the
flange (3) in front of the plough fame (4) by
means of the bracket (2).
See operating manual of the attachment
arm.
Attention!
In combination with tractors having a long
hydraulic pipe between spool valve and
hydraulic coupling, an hydro reservoir (5) is
required for the hydraulic assembly of the
attachment arm to prevent an unintentional
uncoupling of the attachment arm.
• Read and adhere to the General Safety Instructions!
• The attachment arm swings into catching position due to spring
force. Keep distance!
1
5
2
3
4
