Adjustments
48
8.12 Soil Looseners
8.12.1 Subsoilers

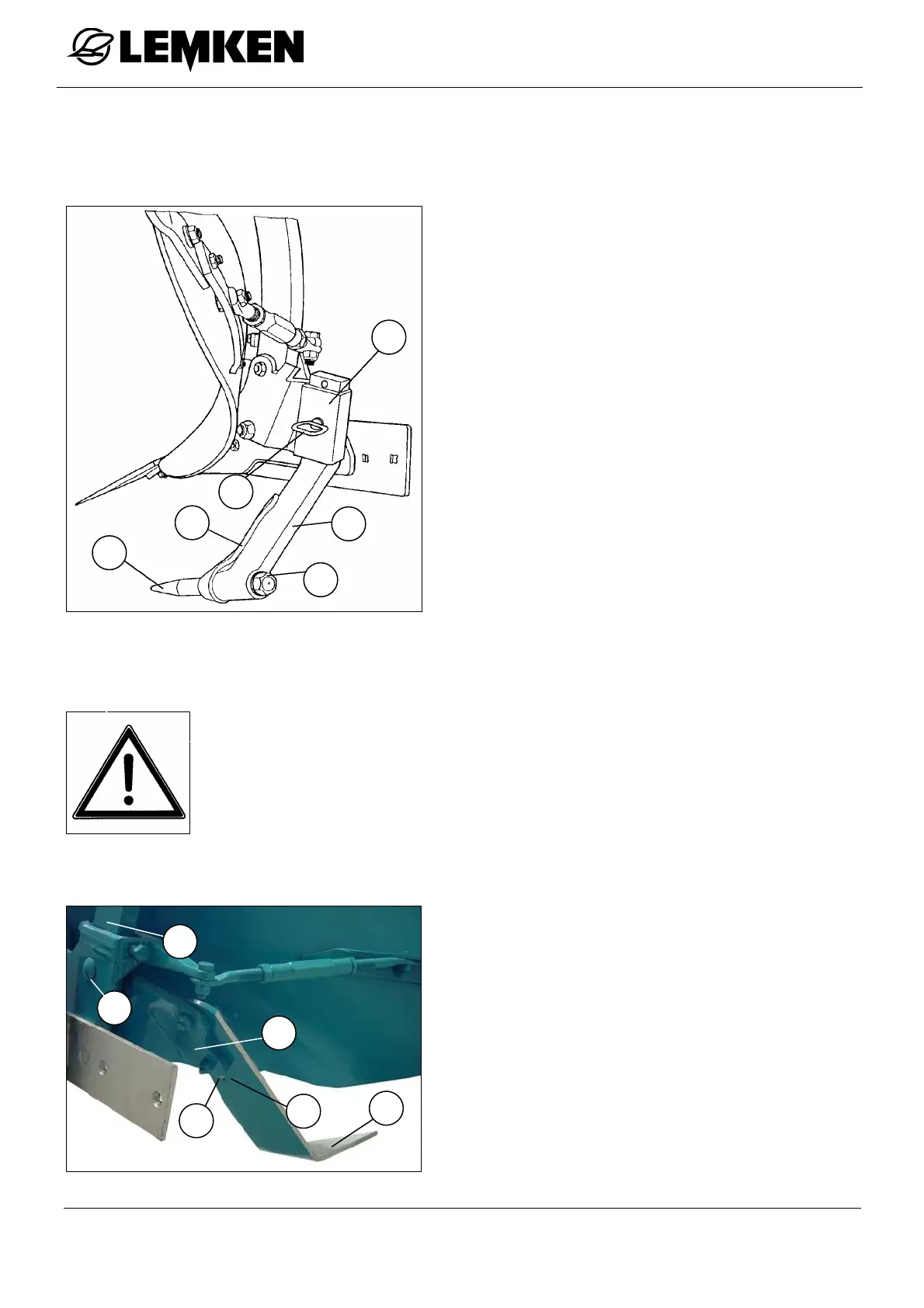

The subsoiler UD6 will be fitted as shown
in the sketch. By means of displacing the
stalk (1) the working depth of the subsoiler
can be adjusted.
Maximum working depth = 20 cm
Minimum working depth = 14 cm
For changing the working depth unsecure
pin (2) and remove.
Displace stalk (1) in the leg bracket (3) cor-
respondingly.
After the adjustment fit pin again and se-
cure.
The stalk (1) is protected by a shin (4). The
shin (4) and the tine (5) can be replaced
when worn after removal of nut (6).
• When parking a plough with subsoilers, the lower subsoilers
must be removed by removing pin (2) to ensure a safe parking.
8.12.2 Subsoiler Shares
The subsoiler share (1) will be fitted to the
leg (4) with its bracket (2) by means of
longer bolts (3). The bores (5) enable the
adjustment of the subsoiler share (6) for a
shallower working depth.
3
2
4
6
5
1
6
4
3
5
2
1
