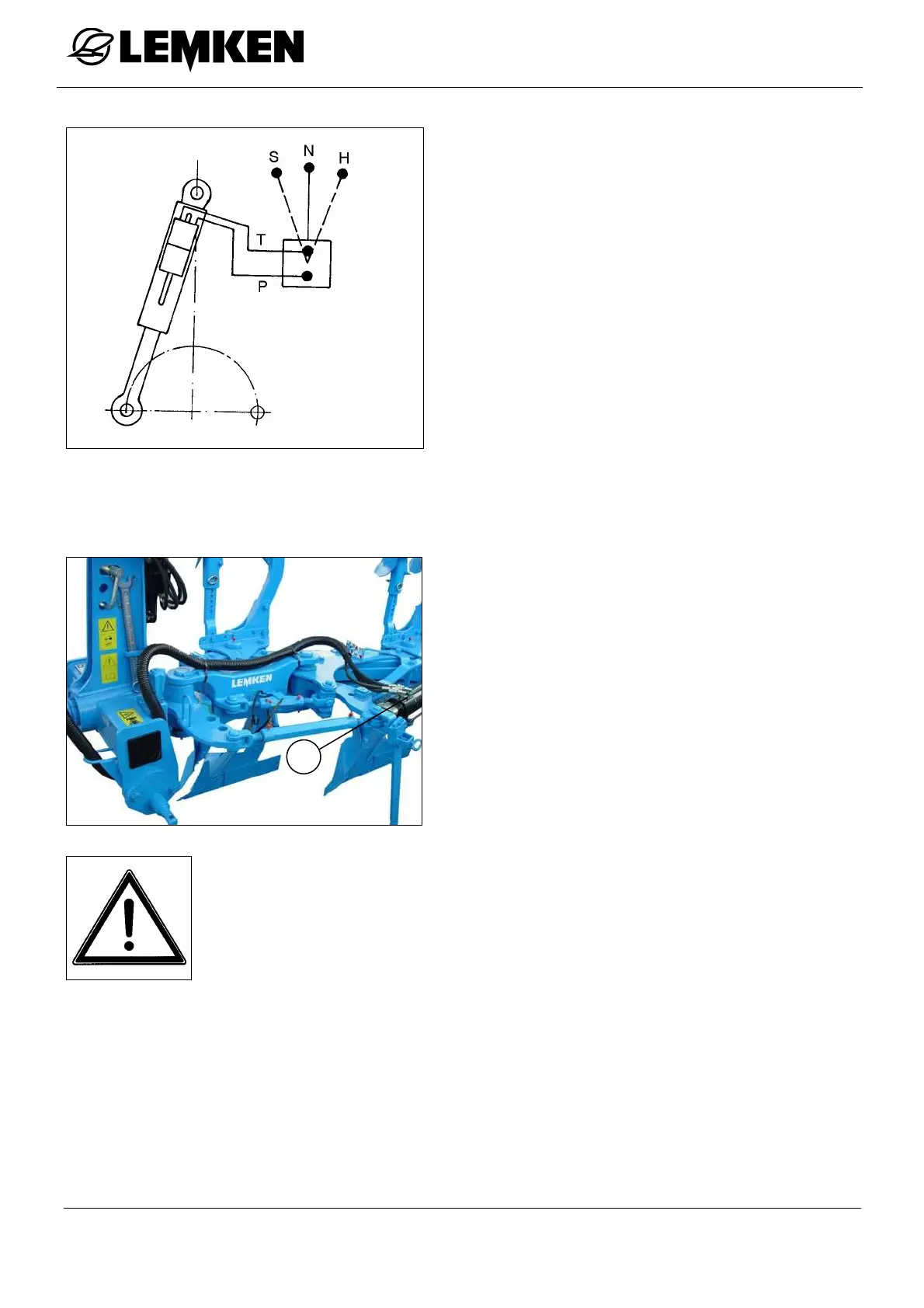

Turning the Plough Frame
28
− For the turning operation raise plough
completly!
− Switch control lever to "H": Plough frame
turns through about 180°!
− After completion of the turnover opera-
tion move the lever to the position ‘N’.
After 3 - 6 seconds the next turnover can
be started.
The next turnover can be started immedi-
ately when moving the lever to position ‘S’.
(This is only possible when connected to a
double acting service.)
Attention! In combination with hydraulic
frame swing-in assembly (3)
with a Memory ram the plough
frame swings-in before the first
turnover procedure and after
that out again!
• Read and adhere to the General Safety Instructions as well as
to the Instructions ‘Hydraulic Equipment’!
• Before each turnover procedure, it must be ensured that no
persons are standing in the turning and swinging area of the
plough!
• Operate turnover device from the tractor seat, only!
• Do not bend hydraulic hoses!
• Keep clean the hose connections!
• Pay attention to paragraph "ONLAND USE"!
