Mounting
Leuze electronic RSL 430 52
40
2
1
2
4
5
5
1
3
all dimensions in mm
1 Safety sensor
2 Template (markings on safety sensor)
3 Mounting location
4 Reference point for distance measurement and protective field radius
5 Area with unobstructed view; must remain free

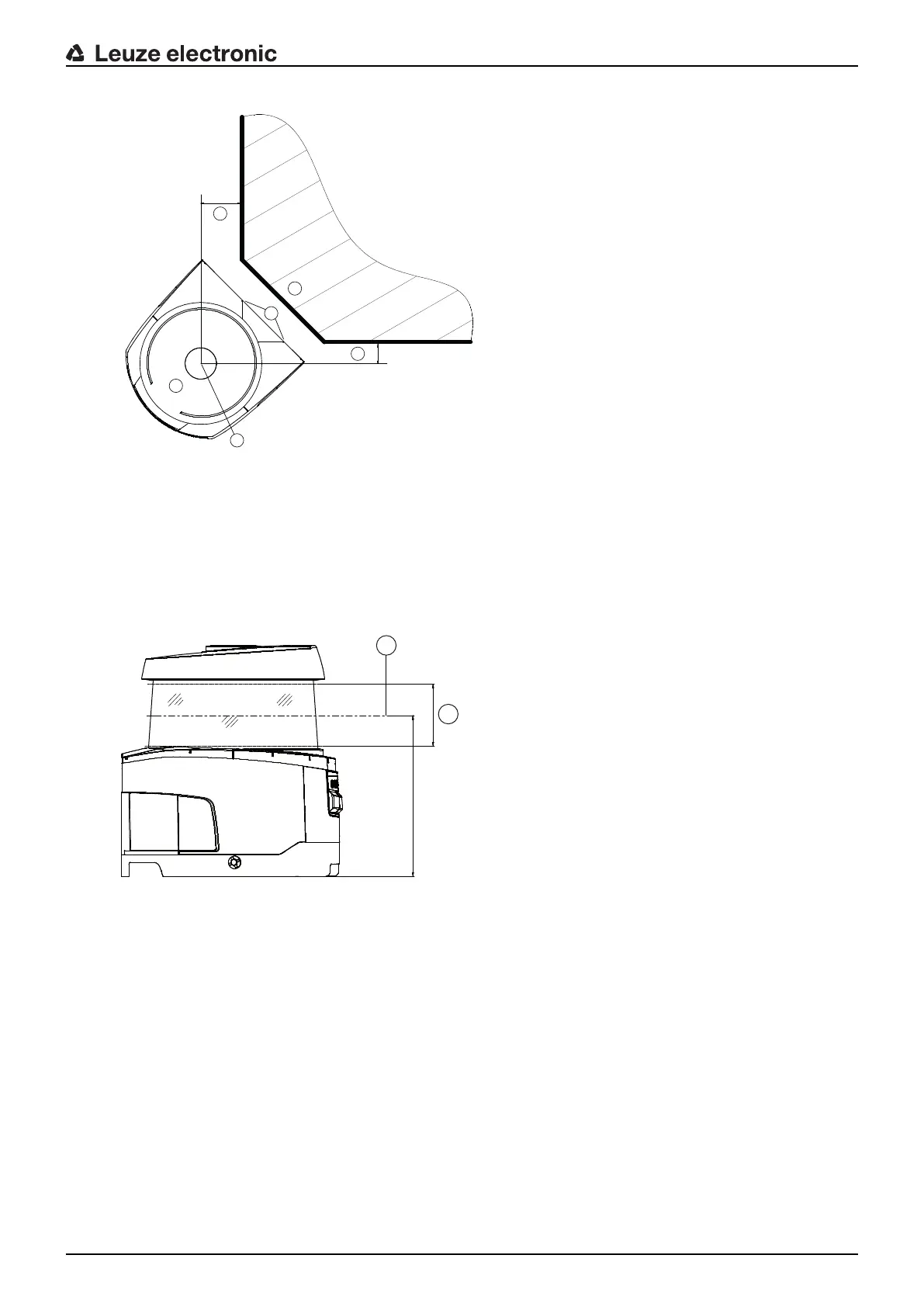

Fig.7.1: Mounting taking the scanning range of 270° into consideration
4
0
1
2
all dimensions in mm
1 Scan level
2 Area with unobstructed view; must remain free (40mm)
Fig.7.2: Mounting: area with unobstructed view
Ä Determine whether you are going to install the safety sensor with or without the mounting system.
During mounting, use the four supplied M5 screws or four similar screws with a diameter of 5mm, and
make certain that the mounting elements or mounting construction supports at least four times the
weight of the device with or without mounting system.
Ä Have the appropriate tools at the ready and mount the safety sensor.
Ä Install protective enclosures or safety bars if the safety sensor is in an exposed position.
Ä If there is a risk that the safety sensor will be used as a climbing aid, install a suitable physical cover
over the safety sensor.
