Lexmark T632 - Page 232

5-14 Service Manual
4060-xxx
J22 HVPS 1ATSERVO
2 TXCURPWM
3 TXENABLE
4 TDXPWM
5 +24V dc
6 CHGPWM
7Ground
8 DEVB
input sensor 9 Ground
10 INSENSE
cartridge sensor 11 +5V dc
12 TONER WHEEL
13 Ground
J23 (not used for non-network model)
J24 BLDC main drive motor 1 ON/OFF
2Ground
3 BLDC CLK
4 +5V dc
5MTR1
6DIR
7 BLDC HALL
8 BLDC LOCK
9Ground
10 Ground
11 +24V dc

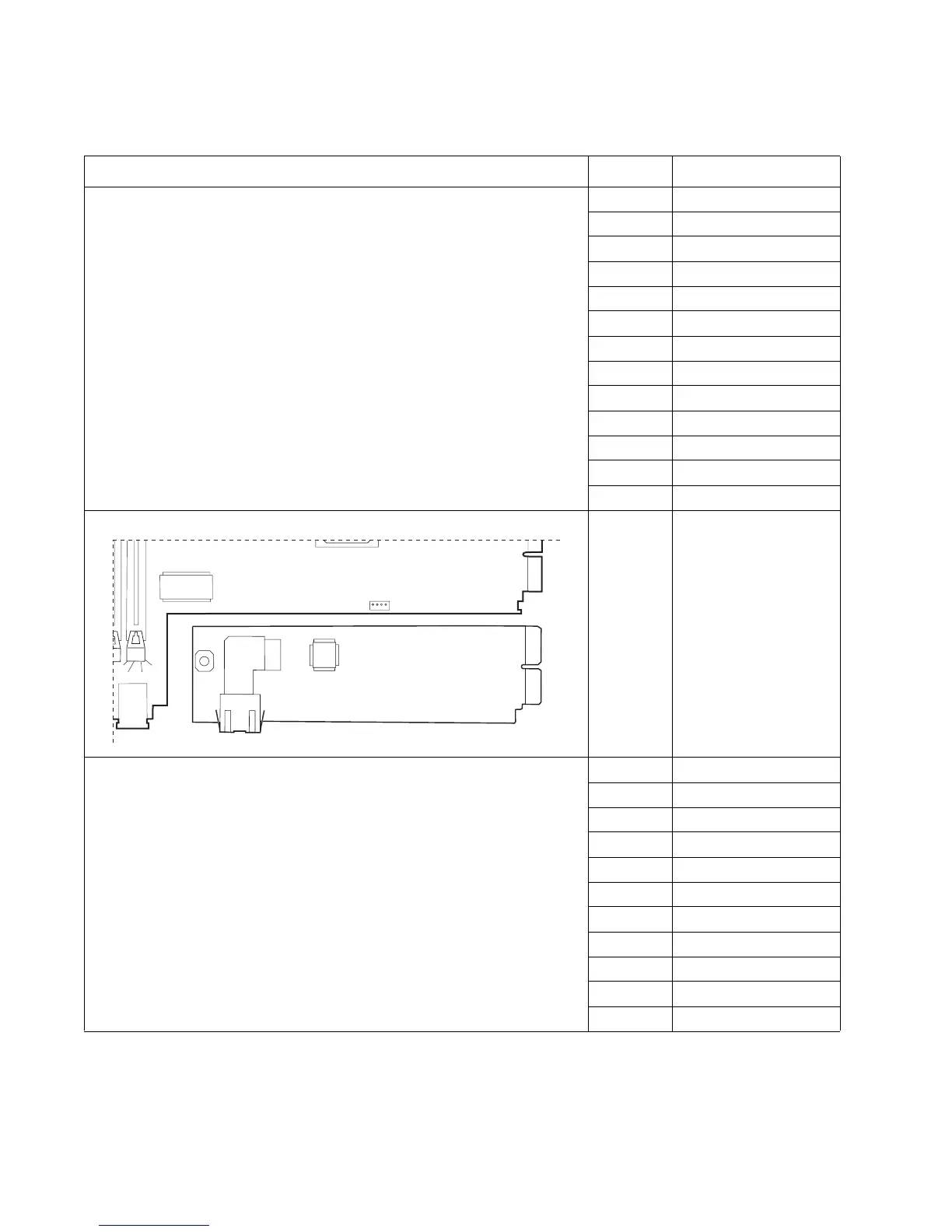

System board—non-network and network (see “System board—non-network” on page 5-10 or “System
board—network” on page 5-11)
Connector Pin no. Signal
99
1
49
100
50
J16
J23
