7-58 Service Manual
4060-xxx

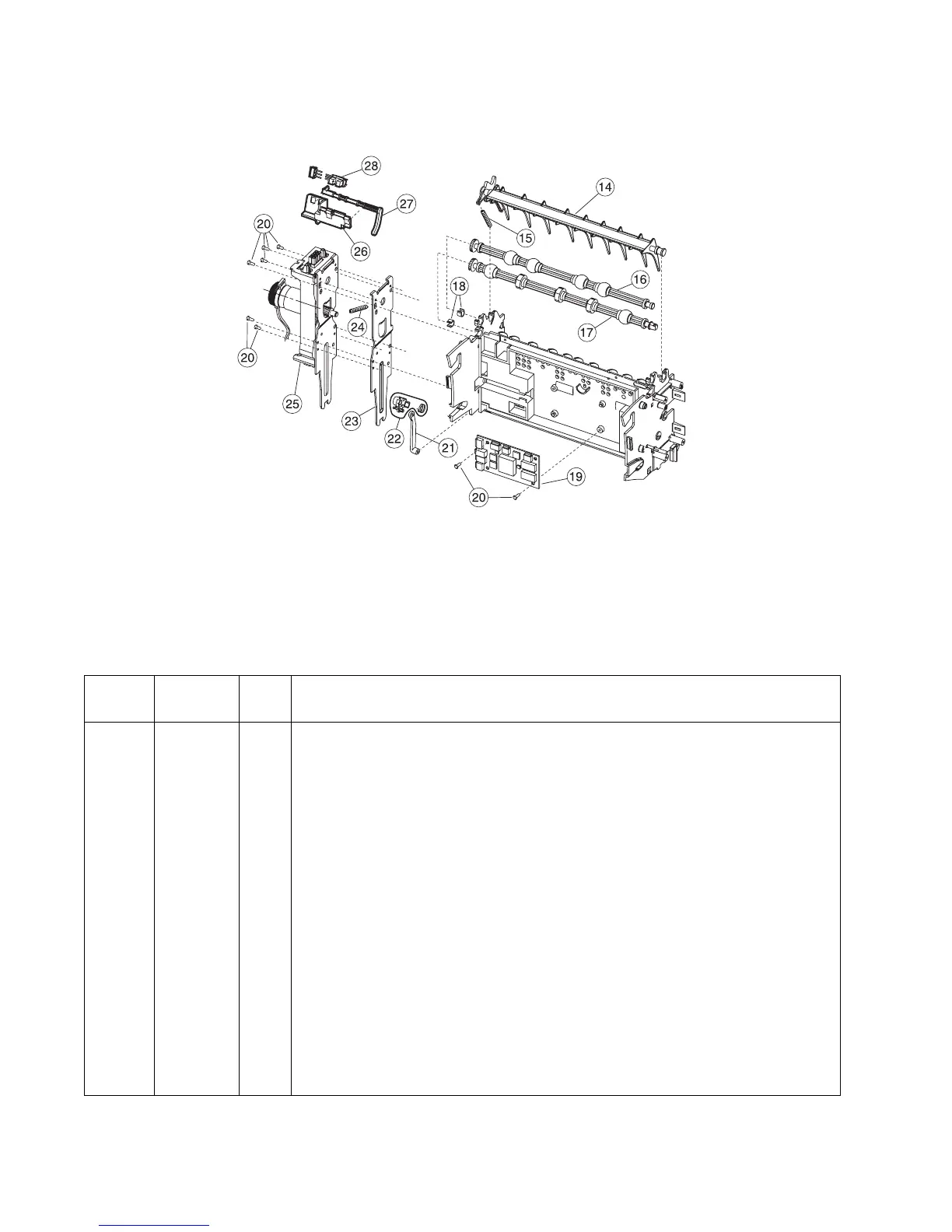

Assembly 26 (cont.): High-capacity output expander
Asm-
Index
Part
Number
Units Description
26-14 99A0107 2 Deflector, upper, also order 99A0104
15 99A0104 2 Spring, upper diverter
16 99A0369 1 Shaft asm, exit upper stacker asm
17 99A0052 1 Shaft asm, stacker lower exit upper stacker asm
18 12 Bearings, shaft PP 99A0572
19 99A1749 2 Board asm, high-capacity output stacker
20 31 Screws, PP 99A0263
21 99A1688 1 Arm, diverter
22 99A1689 1 Clutch asm, output stacker
23 99A1784 2 Bracket, attach
24 99A0415 2 Spring, swing arm
25 99A0914 2 Drive asm, output stacker DC motor
26 99A0409 1 Bracket, dual sensor mounting upper stacker asm
27 99A1613 1 Flag, bin full dual sensor upper stacker asm
28 99A0414 1 Sensor asm, bin full dual upper stacker asm
NS 99A1690 1 Belt, 95G lower stacker asm
