USING THE PROGRAM

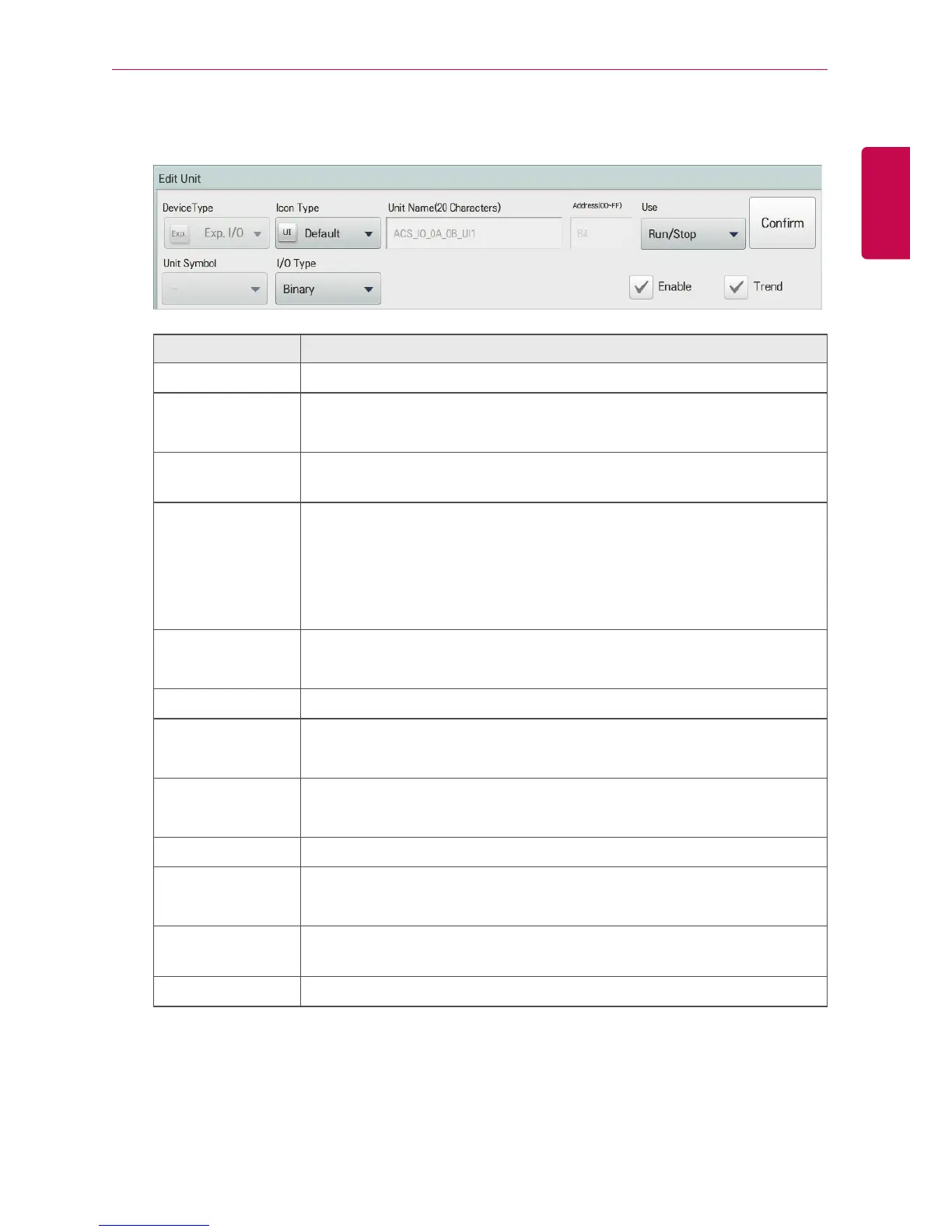

■ Exp.I/O Detail Setting
• UI
Item Description
Icon Type Select an icon type
Unit Name
(20 Characters)
Enter the device name.
y Up to 20 characters.
Address
It is automatically input according to Exp.I/O address, and it cannot be
changed.
Use
Select device usage
y Status information: run/stop, short/open, alarm/normal, close/open,
tun on/off, occupancy/vacancy
y Number information: temperature, humidity, open, level, operation
ratio, concentration, pressure
Unit Symbol*
Select unit symbol
y It is automatically selected according to the usage selection.
I/O Type Select I/O type (Binary or VOL, CUR, PT1000, NTC10K, NI1000)
Min.*
Input minimum value
y You can input up to 5 digits
Max.*
Input maximum value
y You can input up to 5 digits
Range* Select range if voltage on current input is required.
Correction*
Input correction value
y You can input up to 5 digits
Enable
During Exp.I/O registration, 14 Points are available for registration, the
enable check box must be selected to enable use.
Trend Save the value in the history at every designated interval (15 minutes).
* Only when I/O type is VOL, CUR, PT1000, NTC10K, or NI1000, the corresponding button is
displayed.
