USING THE PROGRAM
InterLocking
Associated device control is a function which interlocks more than one device and then controls
output movements when the input conditions are met.
In order to operate associated device control, you shall arrange the devices to be interlocked in a
single pattern and then apply the control setting. It is described here how to create and manage a
pattern and then proceed with associated device control.
Managing Program
The following explains how to register integrated devices as a program and how to modify or delete a
registered program.
Adding Program
You can add a program as follows.
1. In the main menu, click(touch) the [AutoLogic > InterLocking] menu icon.
2. Click(Touch) the [Add] button.

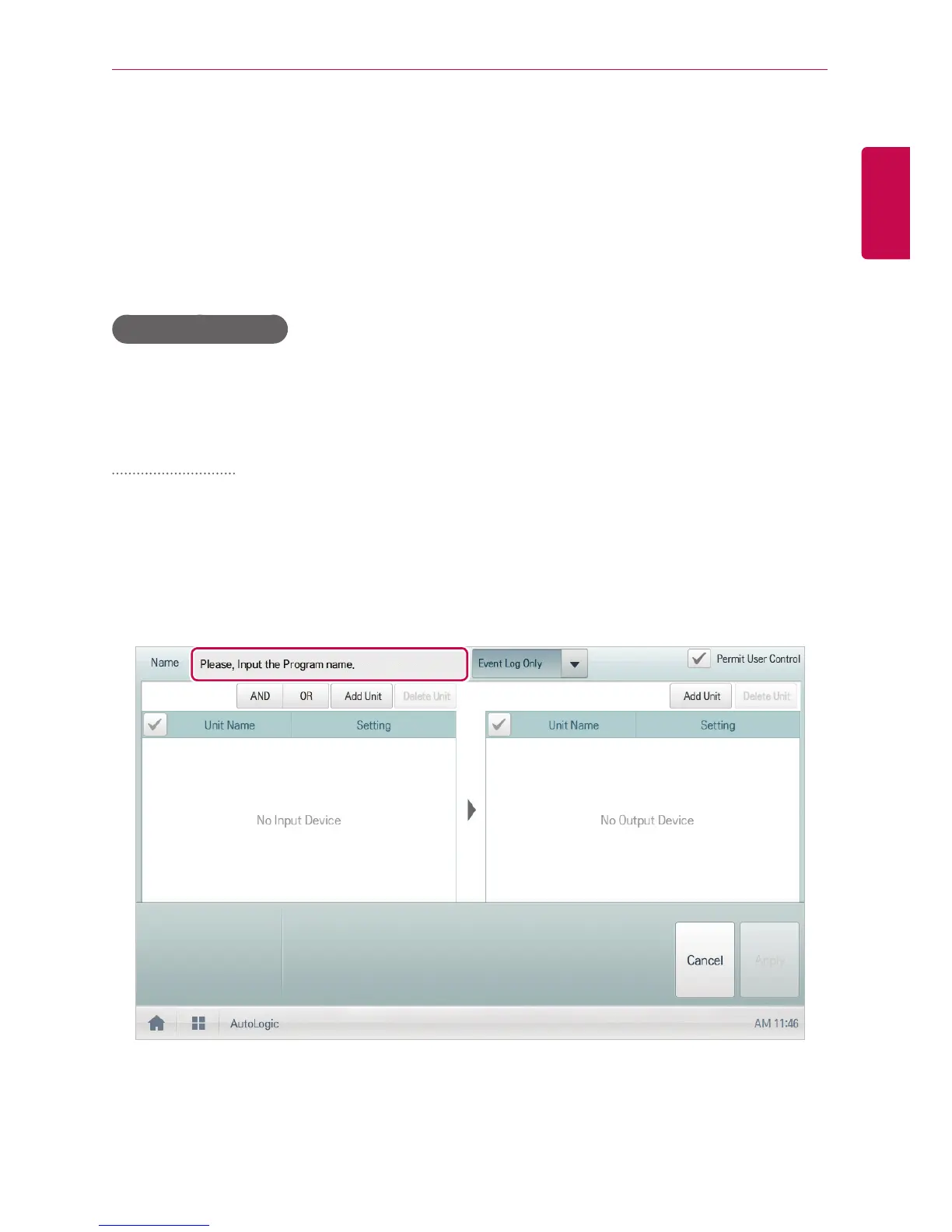

• A window to create a program is displayed.
3. Type a new program name in the program name input window.
To Next Page
