124
ENGLISH
USING THE
PROGRAM
Language
Conf
igures the language display
ed on the screen.
1.
In t
he ma
in m
enu, c
l
ic
k(touc
h
) th
e
[Envir
onment]
men
u icon.
2.
I
n th
e set
tin
gs li
st
, c
lic
k(tou
ch)
General Setting
.
3.
I
n th
e det
ai
le
d set
t
in
gs li
st
, c
lic
k(tou
ch)

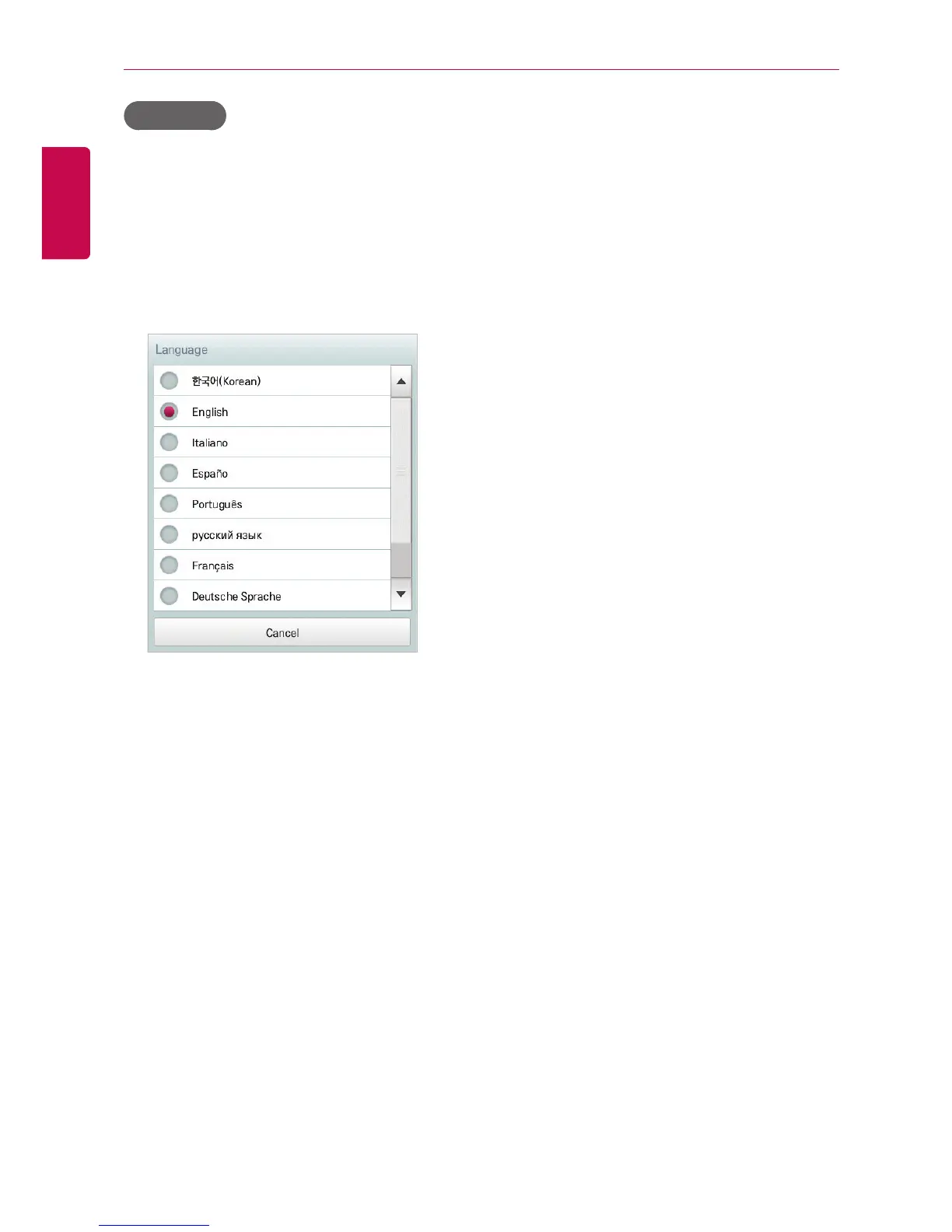

Language
.
4.
Clic
k(T
ouch
) a language y
ou want.
•
The selected language is
applied as the sy
stem language.
131
133
Table of Contents
Default Chapter
3
Explanatory Notes
3
Product Features
4
How to Use this Guide
5
Comparison of Models
6
Table of Contents
7
Safety Precautions
9
Installation
9
Operation
10
Disposal of Your Old Appliance
14
Starting
15
Login and Logout
15
Login
16
Logout
16
Home Screen Composition and Features
17
Emergency Situation Occurrence and Reset
18
Emergency Situation Reset
19
Using the Program
21
Control/Monitoring Screen Composition and Features
21
View Type
22
Simple
23
Monitoring Screen Colors and Icons
24
Device Status Icon
25
Control Device Icon
25
Device Control
27
Control Menu Per Device
28
Indoor Device
28
Indoor Unit Fine Control
29
Indoor 2Setpoint (Auto Mode)
31
Indoor 2Setpoint
32
2Set Auto Mode Icon
33
Erv
35
ERV Fine Control
36
ERV DX Fine Control
38
Ahu
40
View AHU Details
41
AHU Fine Control
42
AHU Easy Control
43
Registered Easy Control
43
New Easy Control Registration
44
Air-Cooled Scroll Chiller, Water-Cooled Scroll Chiller
46
View Water-Cooled Scroll Chiller Details
47
Water-Cooled Scroll Chiller Fine Control
48
Turbo Chiller, Screw Chiller
49
View Turbo Chiller, Screw Chiller Details
50
Turbo Chiller, Screw Chiller Fine Control
51
ABS Chiller
52
View ABS Chiller Details
53
ABS Chiller Fine Control
54
Dokit
55
AWHP / Hydro Kit
55
AWHP and Hydrokit Fine Control
56
Do
57
Ao
57
Registering Floor Plan
58
Checking Floor Plan
61
Editing the Floor Plan
62
Deleting the Floor Plan
64
Monitoring a Device
65
Schedule Screen Composition and Features
66
Creating Schedules
67
Checking Schedules
70
Editing Schedules
71
Deleting Schedules
72
Auto Logic
73
Peak Control
73
Editing Groups
74
Adding Groups
74
Changing Group Name
76
Deleting Groups
77
Configuring Peak Control
78
Configuring Priority
80
Checking Peak Control Status
81
Demand Control
82
Checking Demand Control Status
83
Time-Limit Operation
85
Configuring Time-Limit Operation
89
Interlocking
91
Managing Program
91
Adding Program
91
Energy Report
98
Statistics Screen Composition and Features
98
Querying Energy Report
100
Event Log Screen Composition and Features
102
Querying Event
104
Installing
105
Device Setting Screen Composition and Function
105
Registering Device
106
Registering Device Automatically
106
Registering Device Manually
108
Changing Device
110
Deleting Device
112
Setting Information of each Device
113
Odu, Erv, Erv DX
113
Idu
114
Exp.I/O
120
Exp.I/O Detail Setting
121
Managing Device
124
Cycle Monitoring
128
Outdoor Unit Cycle Information
128
Indoor Unit Cycle Information
129
Environment
130
General Setting
131
Language
132
Time Setting
133
Date Setting
133
Temperature Display
134
Initial Date for Statistics
135
Power Consumption Display
136
Setting up the Power Consumption Display
136
Gas Consumption Display
137
Setting up the Gas Consumption Display
137
Rates Set
138
Holiday Setting(Supercedes Day Schedule)
139
Adding Exception Date
139
Deleting Exception Date
139
Site Name Setup
140
Setting up the Site Name
140
Version Information
141
Screen Setting (AC Smart IV, AC Smart Bacnet Only)
142
Setting a Screen Saver
143
Screen Saver
143
Waiting Time (Minutes)
144
Speaker Setting
144
Monitor Power Settings
145
Turn off the Monitor Waiting Time (Minutes)
145
Calibrating the Screen
146
Advance Setting
147
LGAP Setting (AC Smart IV Only)
148
Peak/Demand Set
149
Set the Operation Mode
149
Temperature Difference for Setback/Autochangeover
150
Update S/W
151
DB Backup
152
Recovery DB
152
Auto Mode Option
153
Outdoor Unit Oil-Return Operation
153
System Restart
154
Customer Setting
155
Change Password
156
Add User
156
User Management
158
Deleting User Information
158
Editing User Information
159
Network Setting (ACP Bacnet, AC Smart IV, AC Smart Bacnet Only)
161
IP Address Settings
162
IP Address
162
Subnet Mask
163
Gateway
163
Main DNS
164
Sub DNS
164
HTTP Port Setting
165
E-Mail Setting
166
E-Mail Account Settings
167
E-Mail Settings
168
Email Subject
168
Recipient E-Mail
169
The Transmission Cycle after Error Occurs (Minutes)
169
Automatic Daily Error-Notification Mail
171
TMS Setting
172
TMS Configuration
173
TMS Server Address
174
TMS Server Port
174
Update Cycle (Seconds)
175
Site Address
175
Site Name
176
Site Code
176
Admin Name
177
Admin Contact
177
Channel Setting
178
ACP IV, ACP Bacnet
178
AC Smart IV, AC Smart Bacnet
179
Bacnet Setting (ACP Bacnet, AC Smart Bacnet Only)
180
