USING THE PROGRAM
Editing the Floor Plan
You can edit a registered floor plan.
1. In the main menu, click(touch) the [Control/Monitor] menu icon.
2. Select the device group you want to monitor from the group list.
• The monitoring screen for the device is displayed.

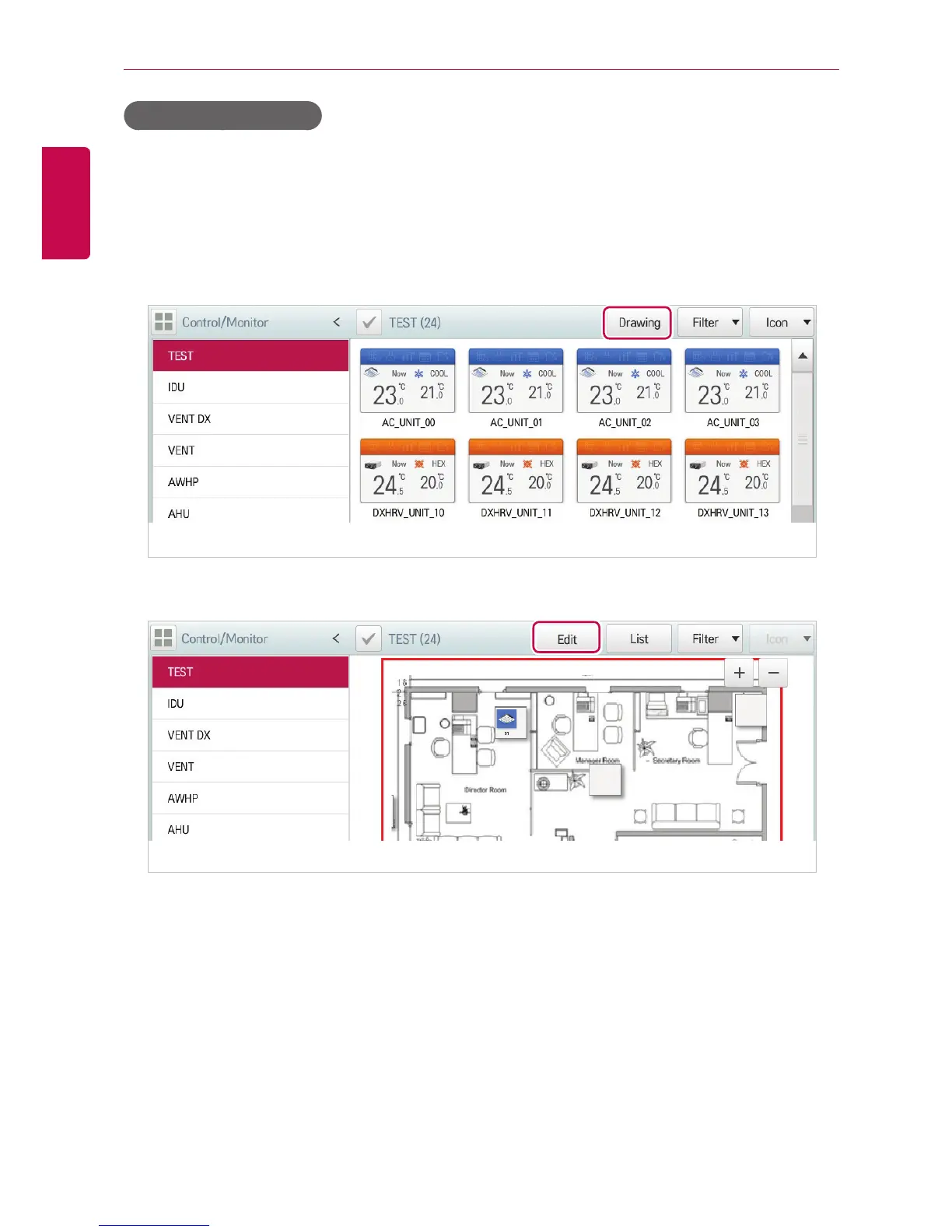

3. Click(Touch) [Drawing] button.
4. Click(Touch) [Edit] button.
5. To change floor plan, click(touch) [Change] button.
• The Open Floor Plan window is displayed.
6. Select a desired floor plan from the Open Floor Plan window, then click(touch) the [Confirm]
button.
• The floor plan image is displayed.
