Page 104 of 295
S540
Connections
6: Mains through 2
Male connection top entry,
female connection side entry
3: Motor supply
4: Mains through 2
Male connection top entry,
female connection side entry

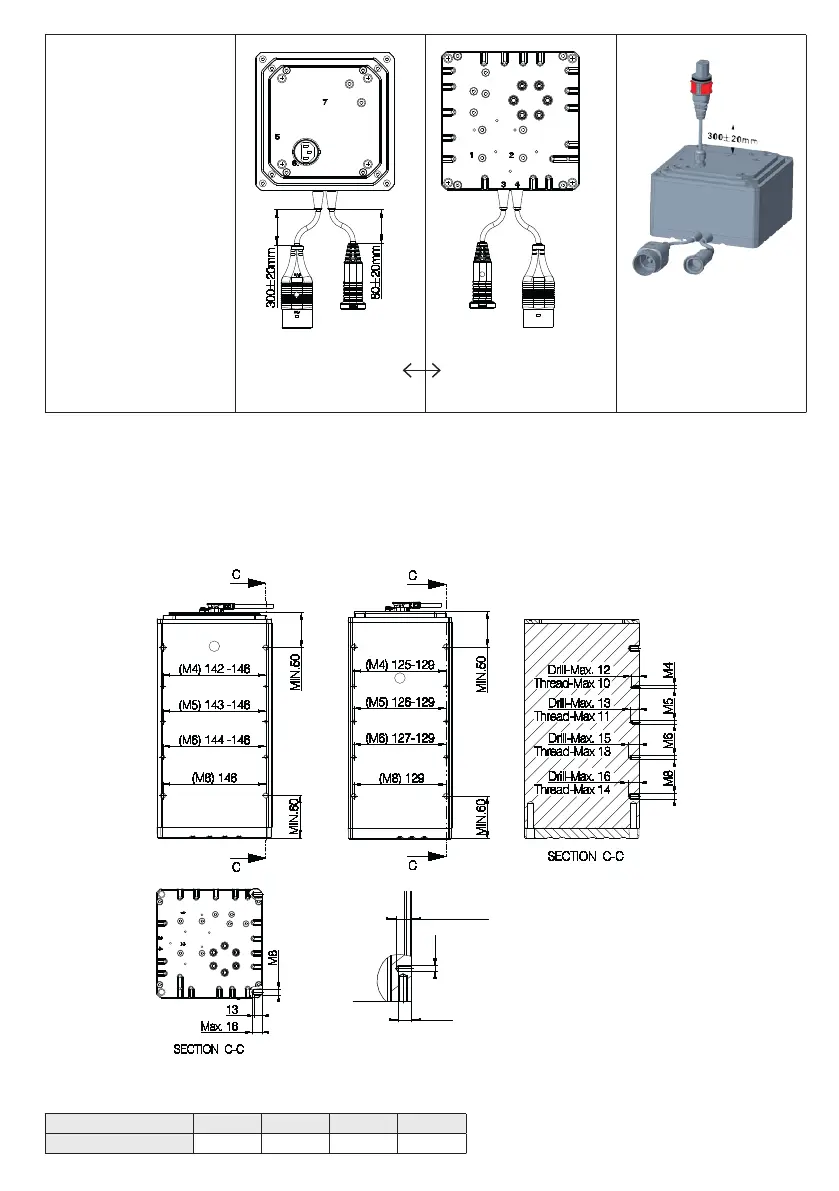

Mounting of a product on the side of an LC3
It is possible to mount a product on all 4 sides of the LC3 at the same time. However, it requires that the holes for mounting are placed with different
distances from the top and/or bottom plate. Otherwise the mounting screws will collide.
Minimum distance from the top and bottom plate must be observed.
Drawing no.: 1002w9005
General tolerance +/- 0,5 mm
A
A
Max. 16
Min. 45
Min. 35
13
M8
TOP
SECTION A-A
BOTTOM
3-stage
2-stage
Screw type M8 M6 M5 M4
Screw torque Nm 17 7 4 2
Screws used for mounting of a product on the side of the LC3 must be 8.8.
