General functionality– COL50
2
4
3
Steer
Push
11
General functionality – LIFT50
Battery on/off:
LIFT50 has a new and ergonomic battery design.
Please follow the mounting instructions of the control box COL50.
Do not mount the battery upside down.

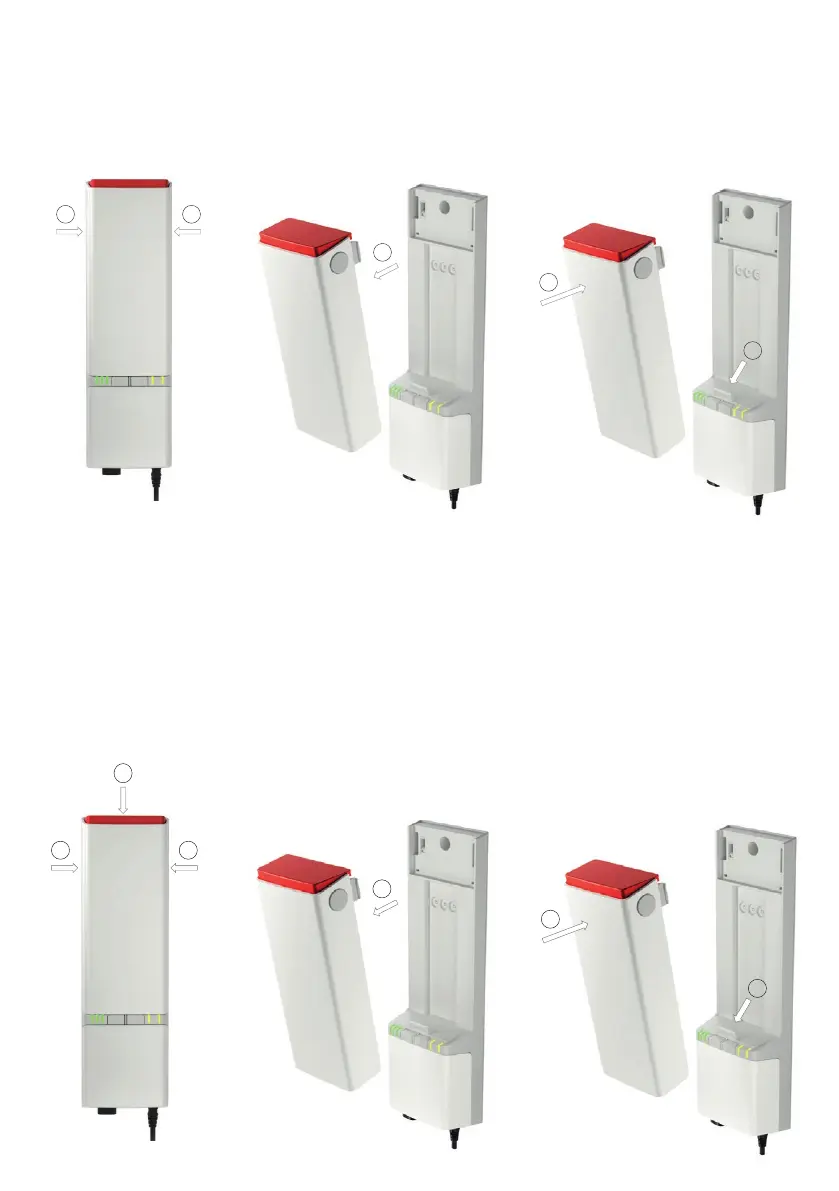

Emergency stop instructions
Emergency stop activation/deactivation:
The emergency stop is mounted on top of the BAL50 battery. It is readily available as the norm describes.
Operation to activate emergency stop
1) Push button on top of battery
To release emergency stop
Take off battery
2) Use thumb and index/middle finger to push
buttons on battery sides
3) Pull battery out
To replace the battery again
4) Grab battery on sides and steer battery base
over steering pin.
5) Push in place
This will release the emergency stop.
Remove battery:
1) Use thumb and index/middle finger to push buttons on battery sides
2) Pull battery out
Mounting battery:
3) and 4) Grab battery on sides and steer battery base over steering pin,
push in place
3
4
5
Steer
Push
1
22
