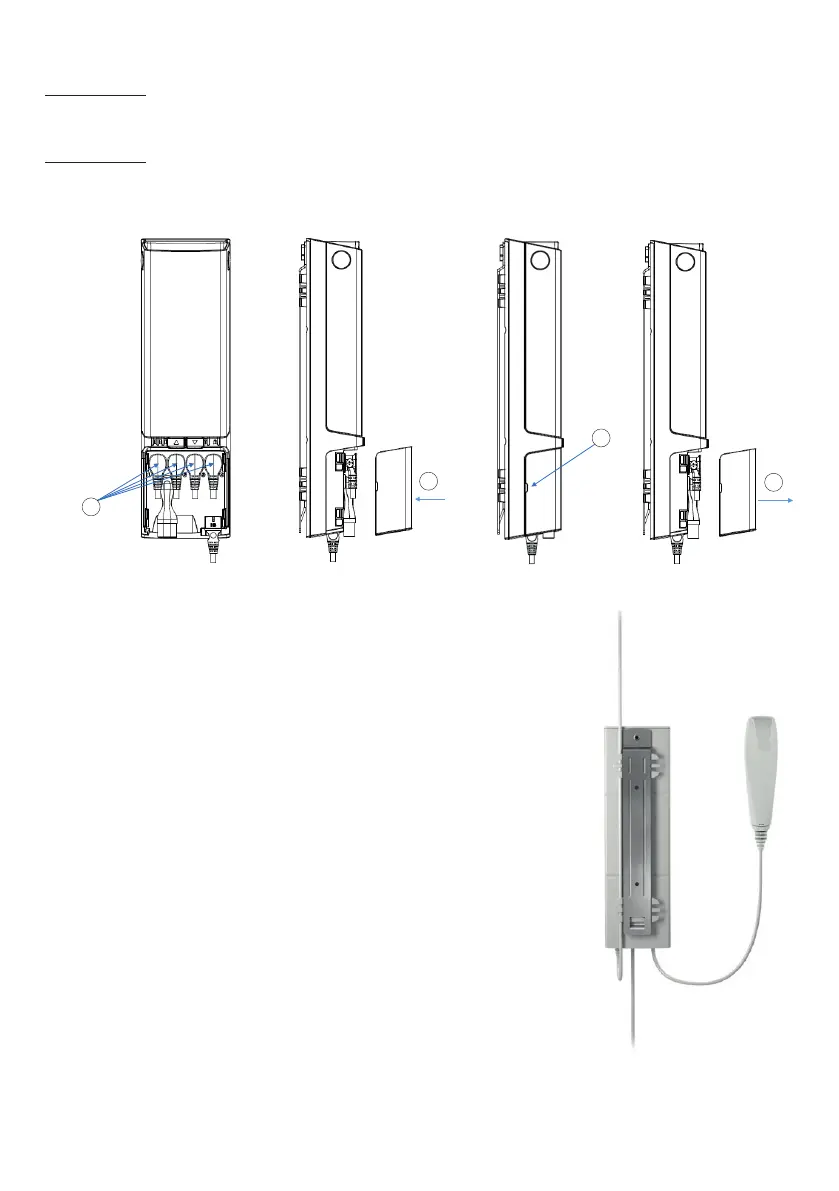

Cable mounting and cable cover
COL50 has a uniquely designed cable cover which also works as an integrated cable cover when closed.
To close cable cover
1) Mount cable plugs in control box (1)
2) Push cable cover directly over designated snaps (2)
To open cable cover
3) Insert flat head screwdriver in groove (3). Move screwdriver handle carefully towards the back of COL50. Cable cover is released
4) Pull cable cover straight out (4)
Cable routing and management
Cable management is possible on the COL50 backside. The wire grooves can be used for many
different purposes, for instance:
1) Guide cable for sling adjustment actuator upwards
2) Guide hand control cable up and out in low or high position to right or left side of patient lift
1
2
4
3
