Page 63 of 295
• LA31 with internal quick release types A and B is not designed for use in pull.
• The necessary release force on an actuator with 5mm pitch is 75 kg for 6 mm pitch = 50 kg.
• LA31 with quick release is always with brake (push).
• The flexible back fixtures (05 or 06) must be standard when the LA31 is equipped with quick release.
• When operating the QR function of QR types A and B, the QR must be activated all the way down. Otherwise the QR will no longer function.

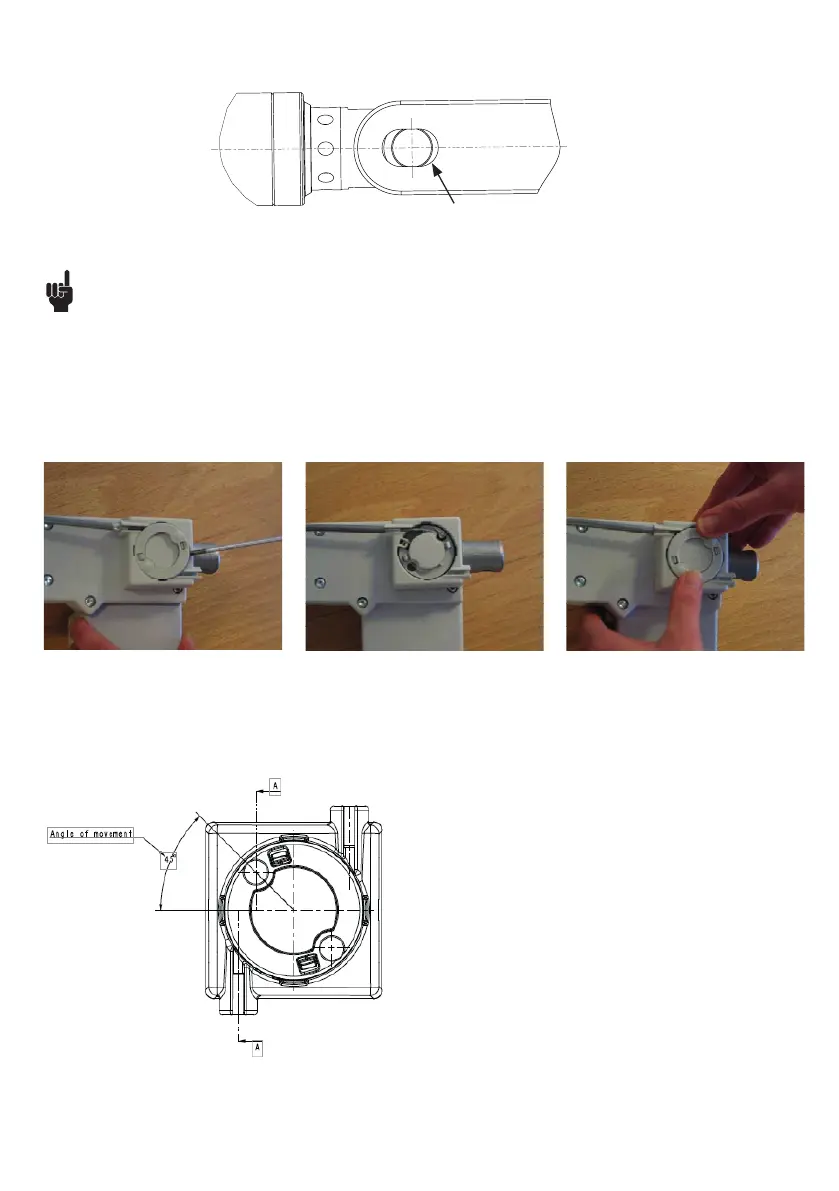

Mounting of the release cable:
Fig 1. Removal of QR cover.
Fig. 3. Replacement of QR cover.
Fig. 2. QR cover removed.
Use only light pressure near the snap-on
flanges to lift the cover.
Here the cover is removed and the cable mount-
ing can be seen.
Use only a small amount of pressure to replace
the QR cover.
Mounting bracket instructions:
Application mounting bracket
Piston rod
Note the recommended design for the mounting bracket hole.
Max. angle of movement:
Note: To ensure operation the Quick Release must be rotated
45
o
C (max.) due to tolerance/load variation. Some units may
operate before 45
o
C is reached.
To avoid damaging the QR, it should not go above 45
o
C.
Drawing no.: 031944
