Page 73 of 295
Make sure that the actuator is unloaded at its fully retracted
position!

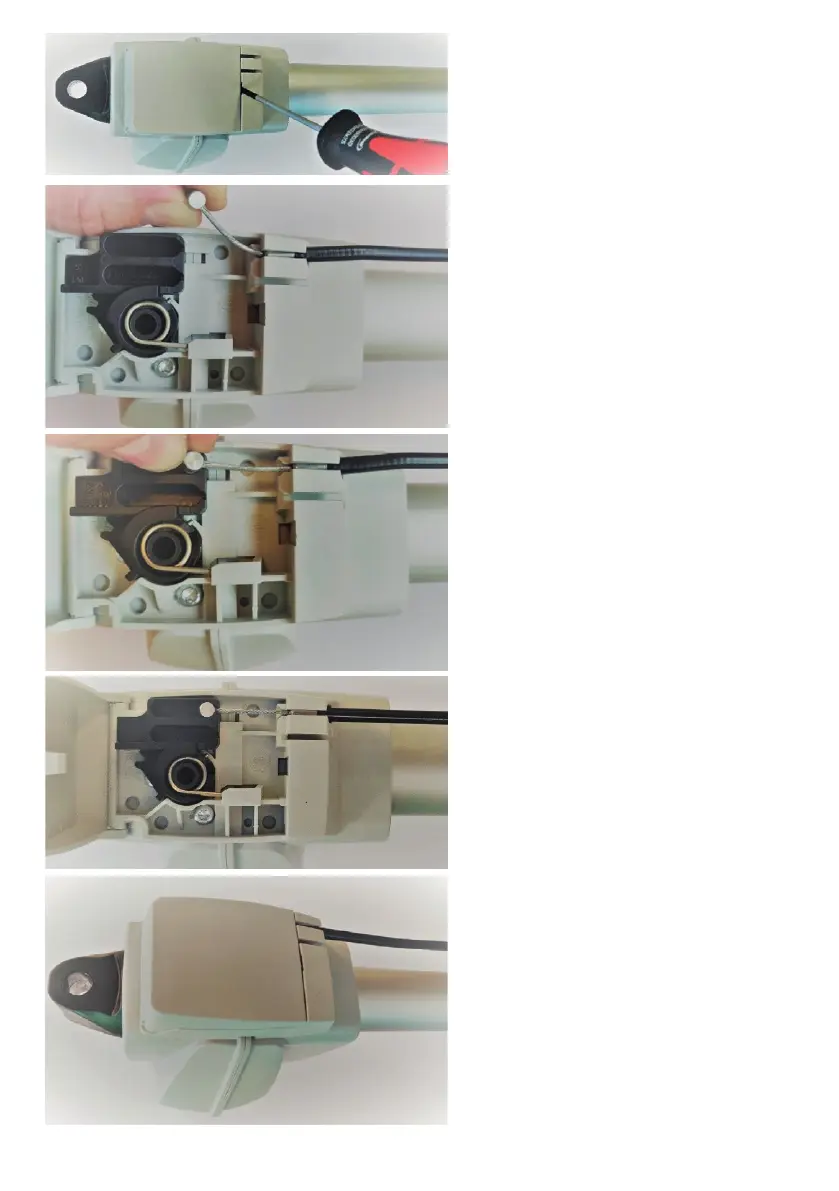

Open the quick release lid using a flat-head screwdriver.
Push and tip to release the lock.
Run the cable through the slot of the mounting hole for the jacket
collar. Pull the cable until the jacket collar is in place.
If needed, support the cable jacket by holding it so that it stays in
the mounting hole for the jacket collar.
Place the cylindrical cable end in the cable fixture.
Repeat the procedure if two release cables are used.
Close the lid.
Now test that the quick release is functional by pulling the cable
with the actuator extracted.
Approximate force required to operate the quick release:
55 N at an actuator load of 750 N
90 N at an actuator load of 4000 N
If the cable is equipped with a barrel adjuster mechanism at
the opposite cable end, then use it to adjust the cable to the
recommended cable length. See drawing no. 0404016-1.
Verify that the quick release mechanism is completely released
when the cable is not pulled. Also verify that the cable can be
pulled almost to the endstop.
When operating the quick release function, the quick release must be activated all the way down and not stopped halfway.
