Page 78 of 295
Fitting the plug/smart cable lock
Step 1:
The three flanges in this position indicate
that the “smart cable locking” device is
in the unlocked position.
Step 2:
Position and press the cable plug
into the socket.
Fig. 2
Step 3:
Hold around the lock flanges and turn the lock
either clockwise or anticlockwise.The cable is fully
locked when turned 90 °C.
Turn 90°
Fig. 3Fig. 1

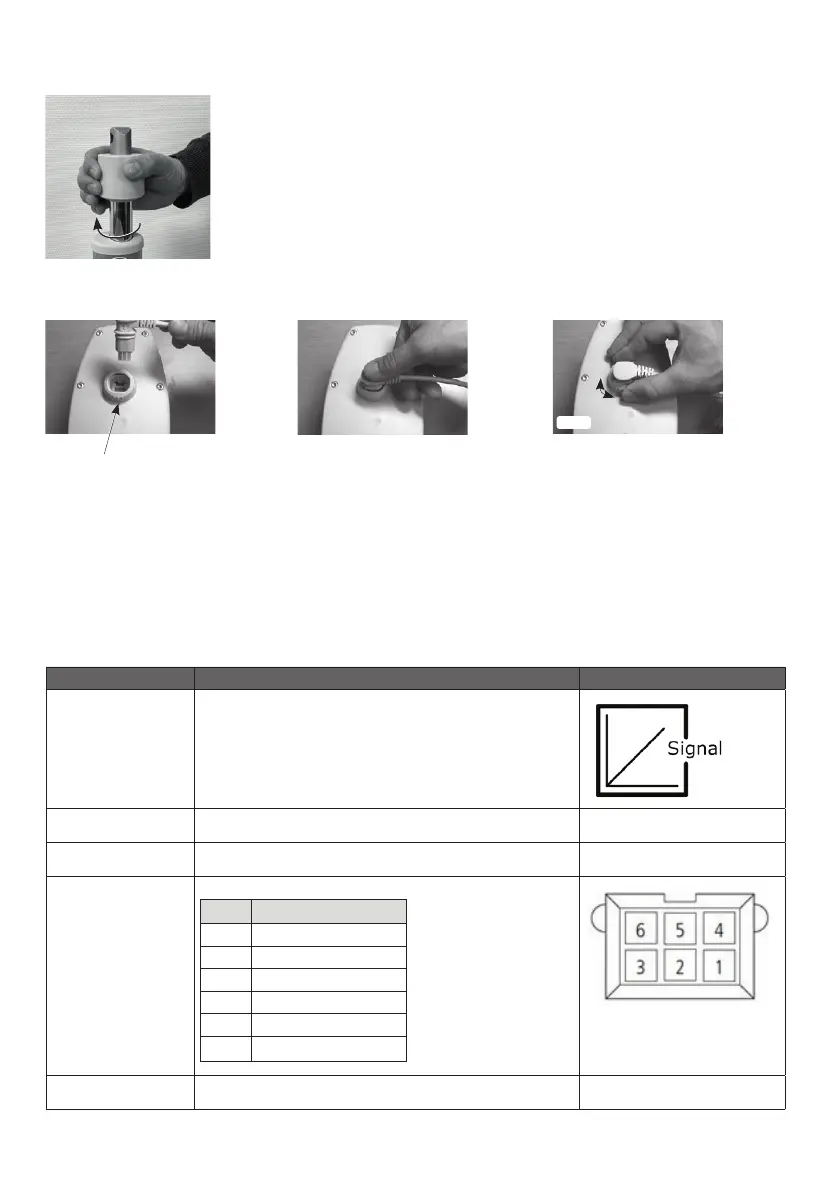

Fig. 1. Manual Lowering
In case of a power failure it is possible to mechanically lower a patient placed in a patient hoist.
When turning the manual lowering handle clockwise the actuator can be moved fully inwards.
Manual lowering:
The following pictures illustrate a) The manual lowering procedure and
b) How to fit and remove the plug connection using the “Smart cable lock”
Item Specification Comment
Description The actuator can be equipped with a potentiometer for precise positioning.
The potentiometer is a variable resistance, the magnitude of which varies
linearly with the position of the actuator rod.
Type ALPS RDC40, 0-10 kOhm ±30%, linearity ±1%
Input voltage 3.3 V recommended
Pin configuration LA44 Mini-fit plug cable (potentiometer)
Potentiometer
Pin 1 Pot GND
Pin 2 Vbus
Pin 3 M+ (Motor/Power)
Pin 4 Pot Position
Pin 5 Pot + (3V3)
Pin 6 M- (Motor/Power)
Combinations The potentiometer positioning cannot be combined with LA44IC.
Feedback specifications
Potentiometer
