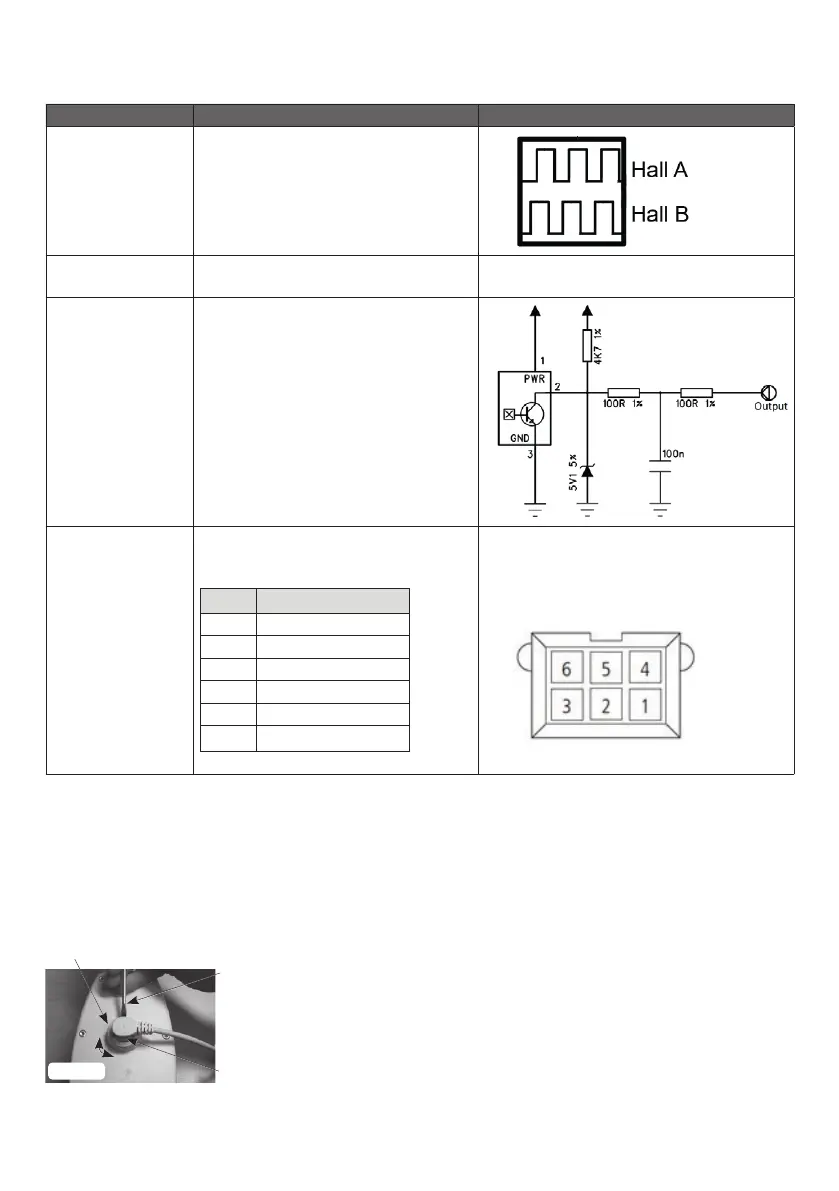

Item Specification Comment
Description The actuator can be equipped with Dual Hall that
gives a relative positioning feedback signal when the
actuator moves.
Input voltage 4-15V
The feedback circuit has to be powered 50 ms before driving
and until the actuator has stopped moving
Current Maximum 20 mA.
See diagram.
Pin configuration LA44 Mini-Fit plug cable (Hall)
with feedback
Hall
Pin 1 Hall GND
Pin 2 Vbus
Pin 3 M+ (Motor/Power)
Pin 4 Hall A
Pin 5 Hall B
Pin 6 M- (Motor/Power)
PCBA header top view
Feedback specifications
Hall
Unlocking the plug/smart cable lock
Using a tool, release the lock (must be from the side shown) by pushing the tap (through
the small slot in the side of the lock).
At the same time, turn the lock 90 ºC in either direction to release the plug connection.
Flanges in locked position
Fig. 1
Press here with tool
No tap on this side
Turn to open
