Page 93 of 295

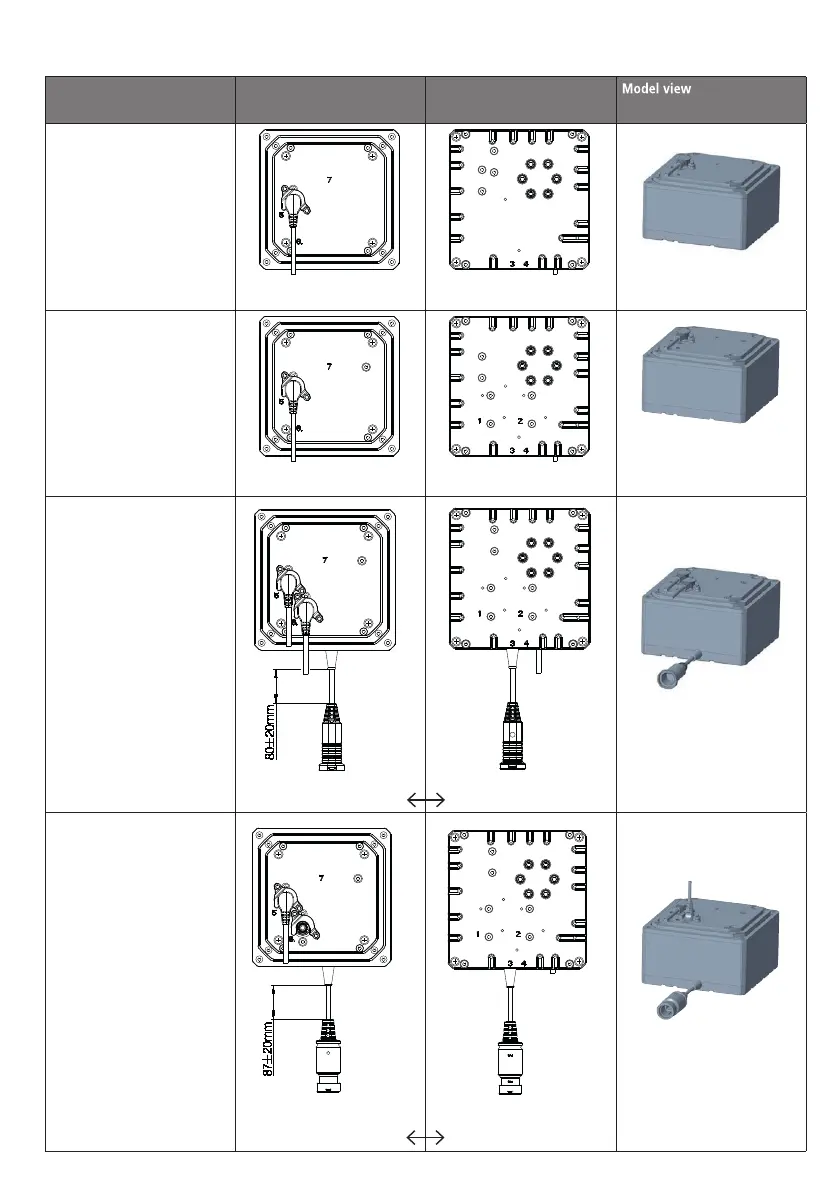

Cable connections overview
3-stage is used as examples but variants are also applicable for 2-stage. This overview shows all possible cable connections, but please notice that
some variants are upon request.
Variant
Top plate
Drawing no.:1002W9005
Side entry
Drawing no.:1002W9005
T000
Connections 5: Motor
T001
Connections
5: Motor
T100
Connections 5: Motor
6: Minifit through 3: Minifit through
T200
Connections 5: Motor
6: HB through 3: HB through
Including protective grounding cable
