5. Enable the X or Ysetting and select the decimationwindow value.
6. Save the job in the Toolbar by clicking the Save button .
7. Check that the laser profiling is satisfactory.

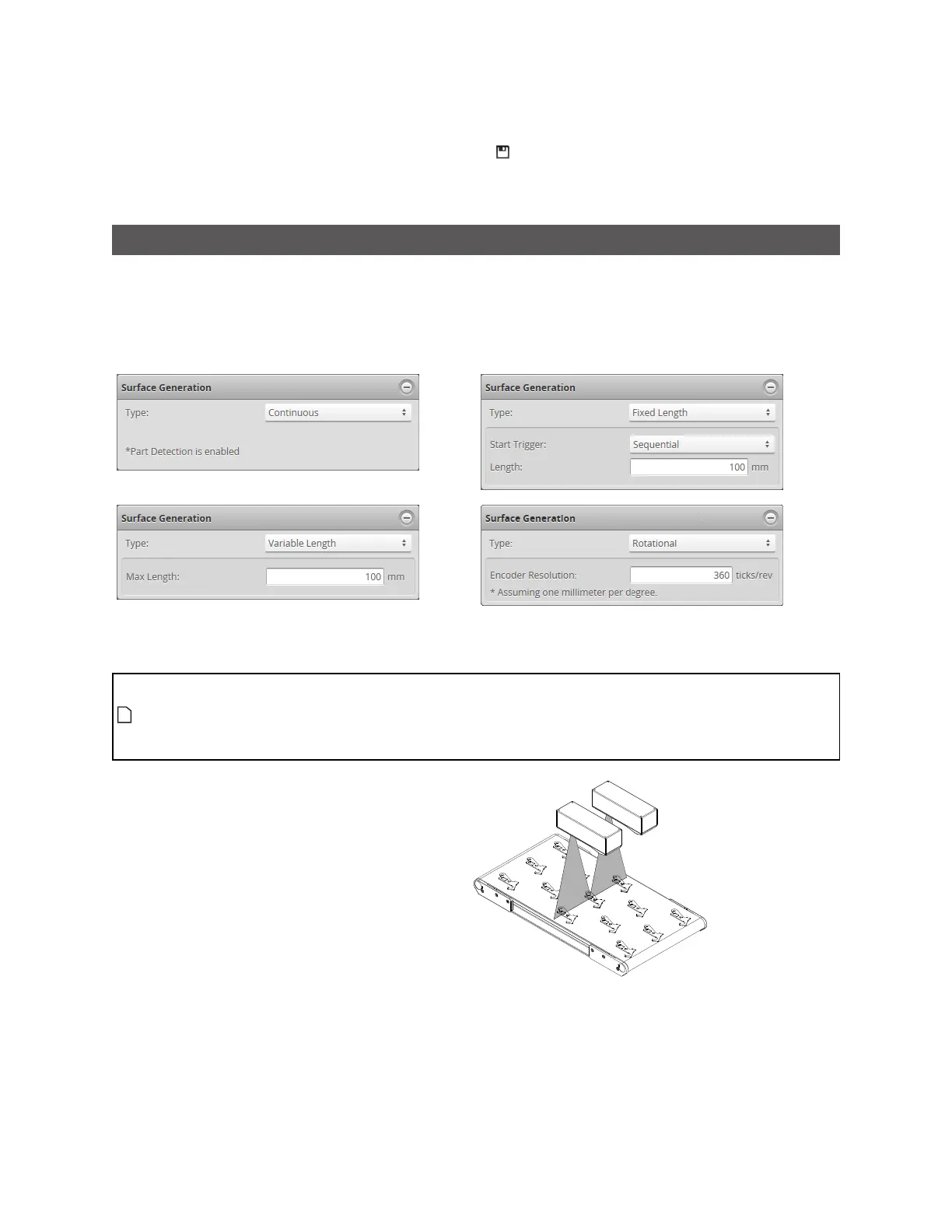

Surface Generation
The sensor can generate a surface by combining a series of profiles gathered along the direction of
travel.
The sensor uses different methods to generate the data, depending on the needs of the application.
Data generation is configured in the Surface Generation panel on the Scan page.
The types in the table below correspond to the Type setting in the panel.
When Type is set to Continuous, part detection is automatically enabled. When Type is set to
any of the other settings, part detection can be enabled and disabled in the Part Detection
panel. For descriptions of the settings that control part detection logic, Part Detection on page
137.
Continuous: The sensor
continuously generates surfaces of
parts that are detected under the
sensor. This type is typically used
when the transport system
continuously feeds material or
parts under a sensor. The materials
have a distinguishable start and
stop edge.
