Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 241
Parameter Description

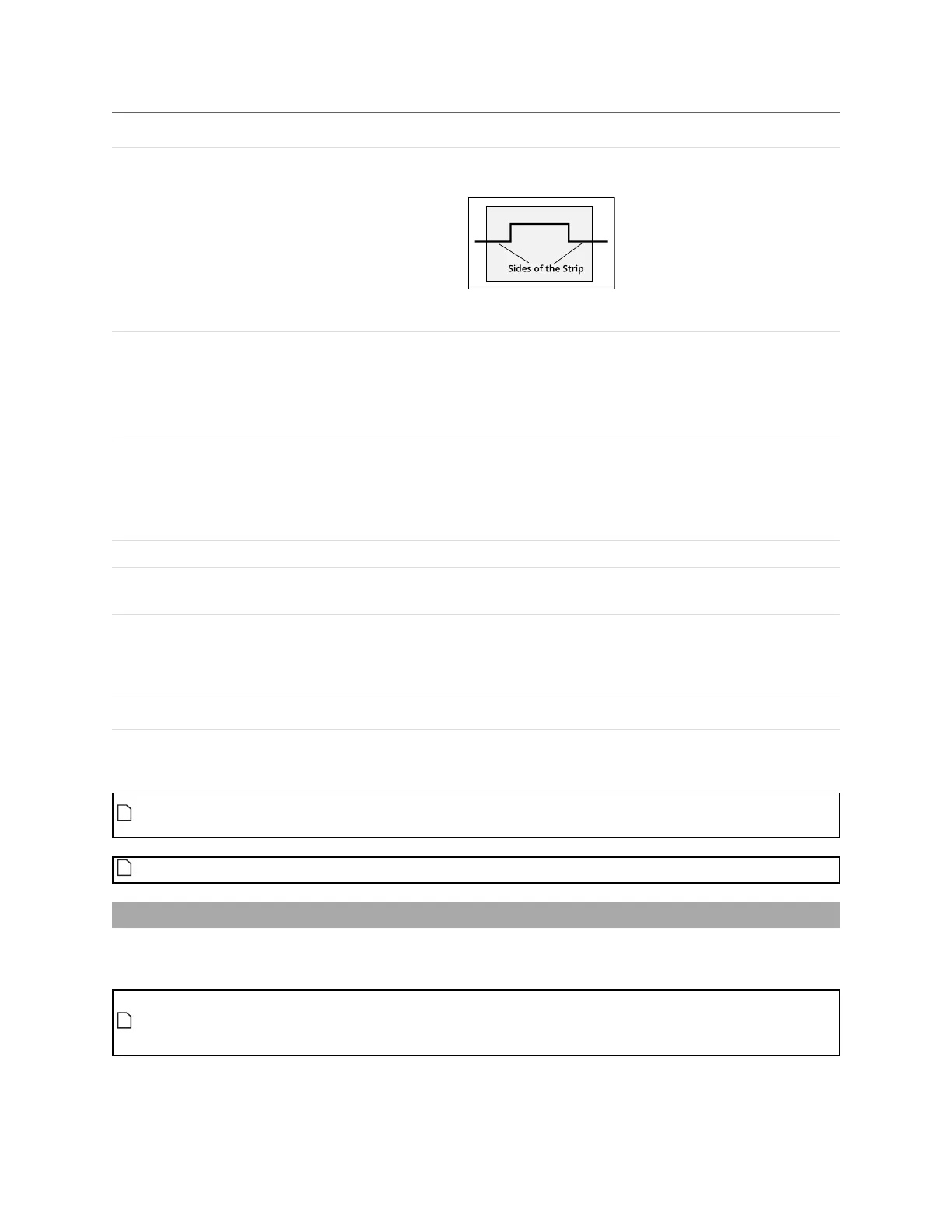

Region The measurement region defines the region in which to search for the strip. If possible, the
region should be made large enough to cover the base on the left and right sides of the strip.
For more information, see Regions on page 184.
Location
(Strip Height, Strip X, and
Strip Z measurements only)
Specifies the strip position from which the measurements are performed.
Left - Left edge of the strip.
Right - Right edge of the strip.
Center - Center of the strip.
Select Type Specifies how a strip is selected when there are multiple strips within the measurement area.
Best - The widest strip.
Index Left - 0-based strip index, counting from left to right.
Index Right - 0-based strip index, counting from right to left.
Index 0-based strip index.
Filters The filters that are applied to measurement values before they are output. For more
information, see Filters on page 192.
Decision The Max and Min settings define the range that determines whether the measurement tool
sends a pass or fail decision to the output. For more information, see Decisions on page 191.
Anchor Description
X or Z Lets you choose the X or Z measurement of another tool to
use as a positional anchor for this tool.
Anchoring
A measurement must be enabled in the other tool for it to be available as an anchor. The anchor
measurement should also be properly configured before using it as an anchor.
For more information on anchoring, see Measurement Anchoring on page 194.
Script
A Script measurement can be used to program a custom measurement using a simplified C-based
syntax. A script measurement can produce multiple measurement values and decisions for the output.
The DimensionPositionScript tool can be used whether Uniform Spacing is enabled or not, that
is, with either resampled or unresampleddata. For more information on the Uniform Spacing
setting and resampled data, see Spacing (Data Resampling) on page 59.
