Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 79
l See sensor messages in the log.
l See frame information.
l Change the interface language.
l Switch to Quick Edit mode.

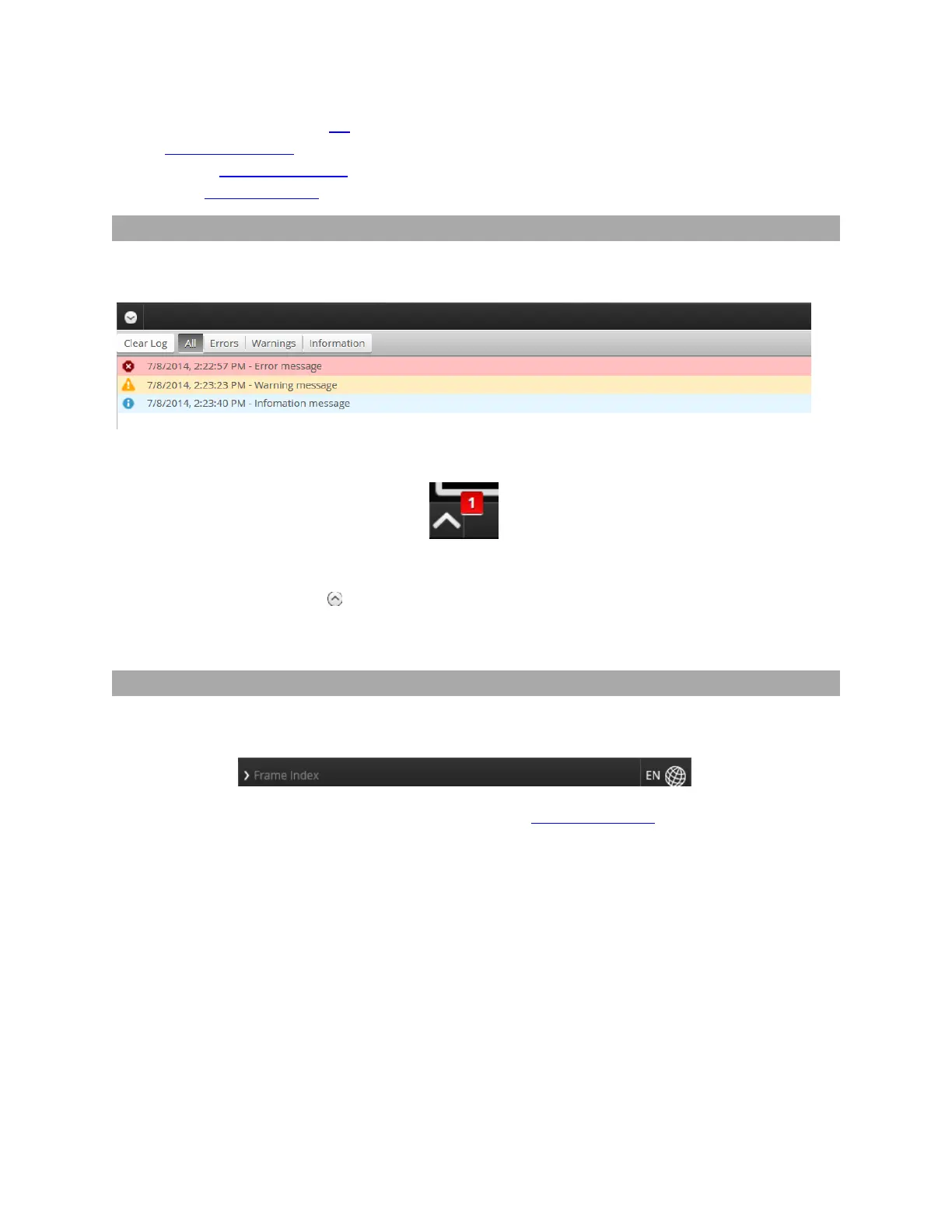

Log
The log, located at the bottom of the web interface, is a centralized location for all messages that the
Gocator displays, including warnings and errors.
A number indicates the number of unread messages:
To use the log:
1. Click on the Log open button at the bottom of the web interface.
2. Click on the appropriate tab for the information you need.
Frame Information
The area to the right of the status bar displays useful frame information, both when the sensor is
running and when viewing recorded data.
This information is especially useful when you have enabled recording filtering. If you look at a recording
playback, when you have enabled recording filtering, some frames can be excluded, resulting in variable
"gaps" in the data.
The following information is available:
Frame Index: Displays the index in the data buffer of the current frame. The value resets to 0 when the
sensor is restarted or when recording is enabled.
Master Time: Displays the recording time of the current frame, with respect to when the sensor was
started.
Encoder Index: Displays the encoder index of the current frame.
Timestamp: Displays the timestamp the current frame, in microseconds from when the sensor was
started.
