Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 222
Intersect
The Intersect tool determines intersect points and angles. Gocator compares the measurement value
with the values in Min and Max to yield a decision. For more information on decisions, see Decisions on
page 191.
The Intersect tool's measurements require two fit lines, one of which is a reference line set to the X axis (z
= 0), the Z axis (x = 0),or a user-defined line.
See Adding and Configuring a Measurement Tool on page 182 for instructions on how to add
measurement tools.
Measurements, Features, and Settings

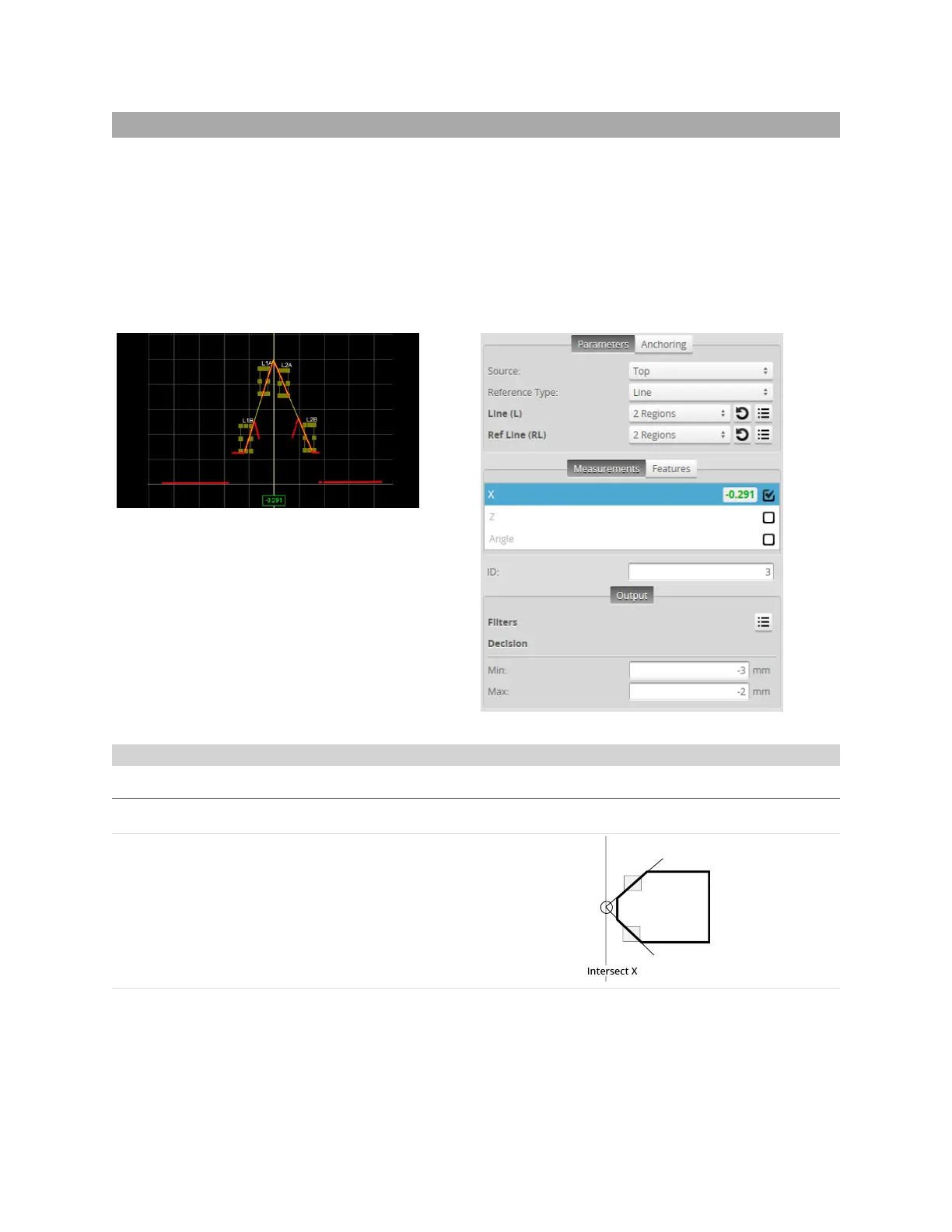

Measurement Illustration
X
Finds the intersection between two fitted lines and
measures the X axis position of the intersection point.
Measurements
