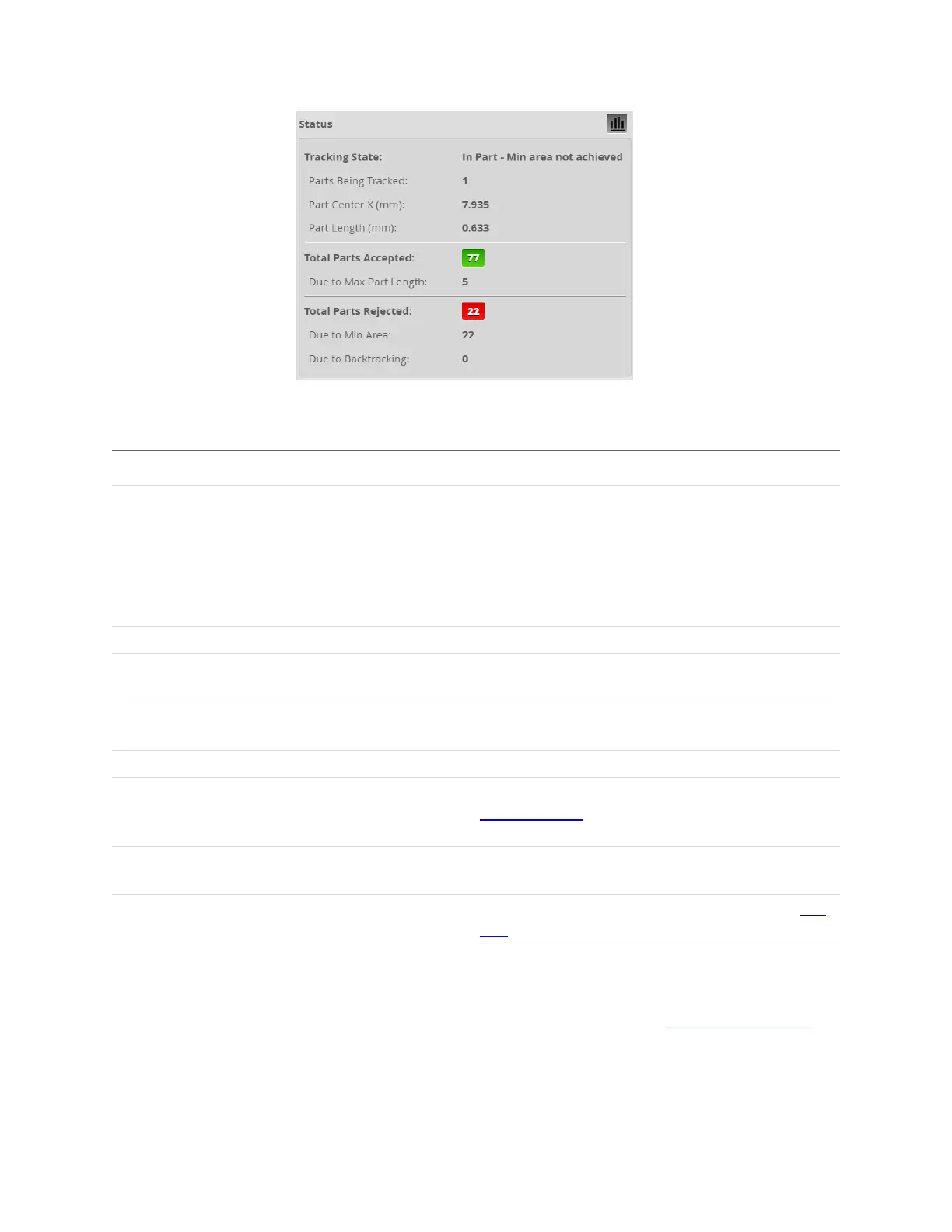

The following part detection status information is available:
Status Indicator Description
Tracking State Part detection state for largest currently tracking part. One
of the following:
l Not In Part
l In Part, Min area not achieved
l In Part, Min area achieved
l In Gap, Min area not achieved
l In Gap, Min area achieved
Parts Being Tracked The number of parts the engine is currently tracking.
Part Center X The center of the partial part, midway between the
minimum X and maximum X detected for the part.
Part Length The length of the part. In cases of backtracking, the number
decreases.
Total Parts Accepted The number of parts that meet the part detection criteria.
Due to Max Part Length The number of parts accepted because they have reached
Max Part Length. If too many parts are being accepted,
increase Max Part Length.
Total Parts Rejected The number of parts that fail to meet the part detection
criteria.
Due to Min Area The number of parts rejected because they are below Min
Area. If too many parts are being rejected, reduce Min Area.
Due to Backtracking The number of parts rejected due to backtracking, for
example, when the user reverses the direction of the
transport mechanism while the sensor is actively scanning a
part. Only applicable when the encoder trigger behavior has
been set to Bi-Directional.
Part Detection Diagnostics
