Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 281
Parameter Description

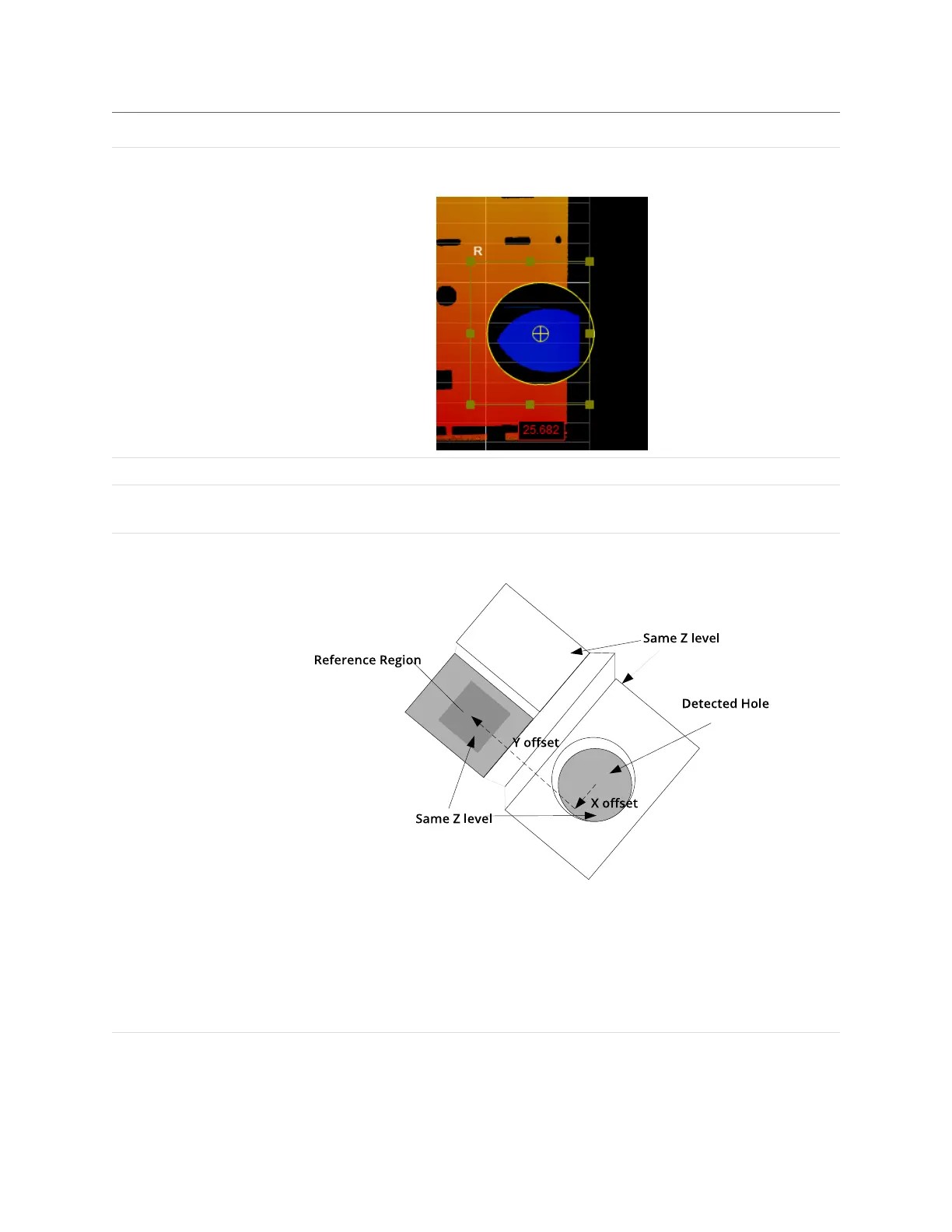

Partial Detection Enable if only part of the hole is within the measurement region. If disabled, the hole must be
completely in the region of interest for results to be valid.
Depth Limit Data below this limit (relative to the surface) is excluded from the hole calculations.
Region The region to which the tool's measurements will apply. For more information, see Regions on
page 184.
Reference Region The tool uses the reference regions to calculate the Z position of the hole. It is typically used in
cases where the surface around the hole is not flat.
When this option is set to Autoset, the algorithm automatically determines the reference
region. When the option is not set to Autoset, you must manually specify one or two reference
regions. The location of the reference region is relative to the detected center of the hole and
positioned on the nominal surface plane.
When Reference Region is disabled, the tool measures the hole's Z position using all the data
in the measurement region, except for a bounding rectangular region around the hole.
