Gocator Line Profile Sensors: User Manual
Getting Started • 47
its status will be updated in the System panel.
The firmware on Main and Buddy sensors must be the
same for Buddy assignment to be successful. If the
firmware is different, connect the Main and Buddy sensor
one at a time and follow the steps in Firmware Upgrade on
page 99 to upgrade the sensors.

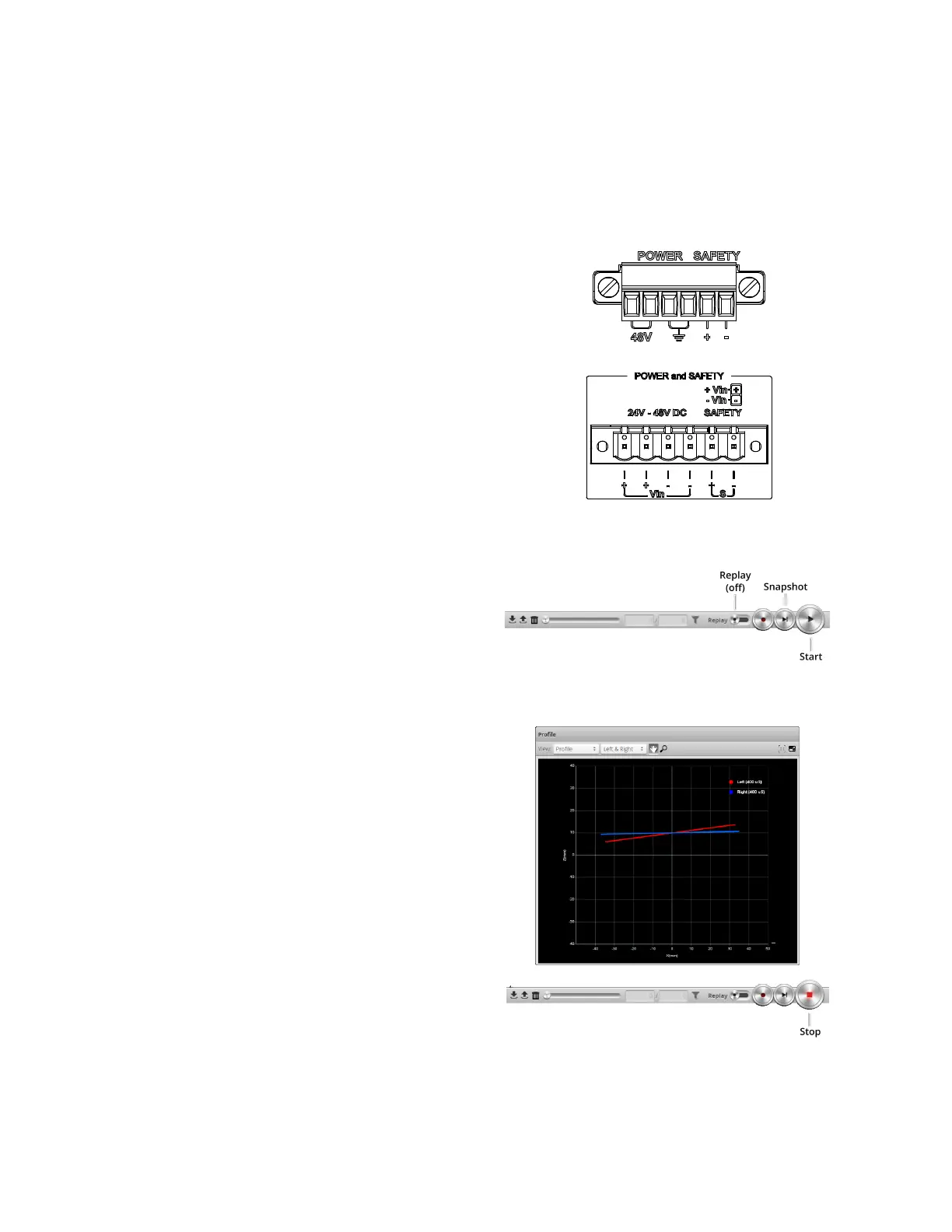

11. Ensure that the Laser Safety Switch is enabled or the
Laser Safety input is high.
Master 400/800/1200/2400
Master 810/2410
12. Ensure that Replay mode is off (the slider is set to the
left).
13. Go to the the Scan page.
14. Press the Start or the Snapshot button on the Toolbarto
start the sensors.
The Start button is used to run sensors continuously,
while the Snapshot button is used to trigger a single
profile.
15. Move a target into the laser plane.
If a target object is within the sensor's measurement
range, the data viewer will display the shape of the target,
and the sensor's range indicator will illuminate.
If you cannot see the laser, or if a profile is not displayed
in the Data Viewer, see Troubleshooting on page 581.
16. Press the Stop button if you used the Start button to start
the sensors.
The laser should turn off.
