What causes barrel indexing signal SQ2 missing error on LNS TRYTON 107 Industrial Equipment?
If your LNS Industrial Equipment is showing 'AL08 – BARREL INDEXING SIGNAL SQ2 MISSING !', the suggested solutions are: * Adjust or replace switch SQ2. * Adjust the barrel locking assembly. * Press the STOP key on the remote control to reset the alarm.
What to do when transfer device back position signal SQ6 is always present on LNS TRYTON 107 Industrial Equipment?
If your LNS Industrial Equipment displays 'AL16 - TRANSFER DEVICE BACK POSITION SIGNAL SQ6 ALWAYS PRESENT!', you can: * Adjust or replace switch SQ6. * Remove the obstruction keeping the transfer device from reversing to the home position. * Press STOP key on the remote control to reset the alarm.
How to fix AL01 emergency stop line open error on LNS Industrial Equipment?
If the LNS Industrial Equipment displays the error 'AL01 – EMERGENCY STOP LINE OPEN !', you should: * Check the states of the emergency stop buttons of barfeed and lathe. * Check the wiring according to the Electrical drawings. * Check the PLC connection. * Press the STOP key on the remote control to reset the alarm.
What to do if transfer device back position signal SQ6 is missing on LNS TRYTON 107?
If your LNS Industrial Equipment displays 'AL15 - TRANSFER DEVICE BACK POSITION SIGNAL SQ6 MISSING!', you can: * Adjust or replace switch SQ6. * Remove the obstruction keeping the transfer device from reversing to the home position. * Press STOP key on the remote control to reset the alarm.
What to do if transfer device front position signal SQ5 is missing on LNS Industrial Equipment?
If your LNS Industrial Equipment shows 'AL13 – TRANSFER DEVICE FRONT POSITION SIGNAL SQ5 MISSING !', you can: * Adjust or replace switch SQ5. * Remove the obstruction keeping the transfer device from advancing all the way forward. * Press STOP key on the remote control to reset the alarm.
What to do if bar stock is not extracted from the collet on LNS TRYTON 107 Industrial Equipment?
To fix the 'AL32 – BAR STOCK NOT EXTRACTED FROM THE COLLET !' error on your LNS Industrial Equipment, you can: * Remove any obstruction from the proximity switch SQ4 detection range. * Check the correct functionning of the remnant extraction device. * Check the collet function and state. * Check the function of proximity switch SQ4. * Adjust or replace switch SQ4.
What happens if the PLC battery is low on LNS Industrial Equipment?
To resolve the 'AL43 – PLC BATTERY LOW !' error on your LNS Industrial Equipment, replace the battery as soon as possible. Note: do not power down the bar feeder until the battery has been replaced, as failure to do so will result in loss of PLC program.
What to do if the pusher lost the bar stock while moving back to home position on LNS TRYTON 107?
If your LNS Industrial Equipment displays 'AL30 – PUSHER LOST THE BAR STOCK WHILE MOVING BACK TO HOME POSITION !', the suggested solutions are: * Check the collet function and state. * Make sure the collet internal diameter is the right size for bar stock. * Remove any excess burrs on the bar before loading.
How to fix bar feeder retracted error on LNS TRYTON 107 Industrial Equipment?
If the 'AL04 – BAR FEEDER RETRACTED OR NOT LOCKED IN ITS WORKING POSITION' error appears on your LNS Industrial Equipment, you can: * Put the bar feed back into working position and tighten down the locking screw so that the bar feed cannot move out of its working position. * Adjust or replace switch SQ10. * Press the STOP key on the remote control to reset the alarm.
How to resolve bar magazine empty error on LNS TRYTON 107 Industrial Equipment?
If the LNS Industrial Equipment displays the error 'AL35 – BAR MAGAZIN EMPTY !', load bar stock into the barrel.
Details manual organization: page numbers, chapter titles, and model identification.
Covers copyright, liability disclaimers, and trademark information.
Manufacturer's declaration of compliance with EU directives and harmonized standards.
Essential safety guidelines for installation, operation, and maintenance of the bar feeder.
Description of safety mechanisms like covers, switches, and emergency stop, including layout.

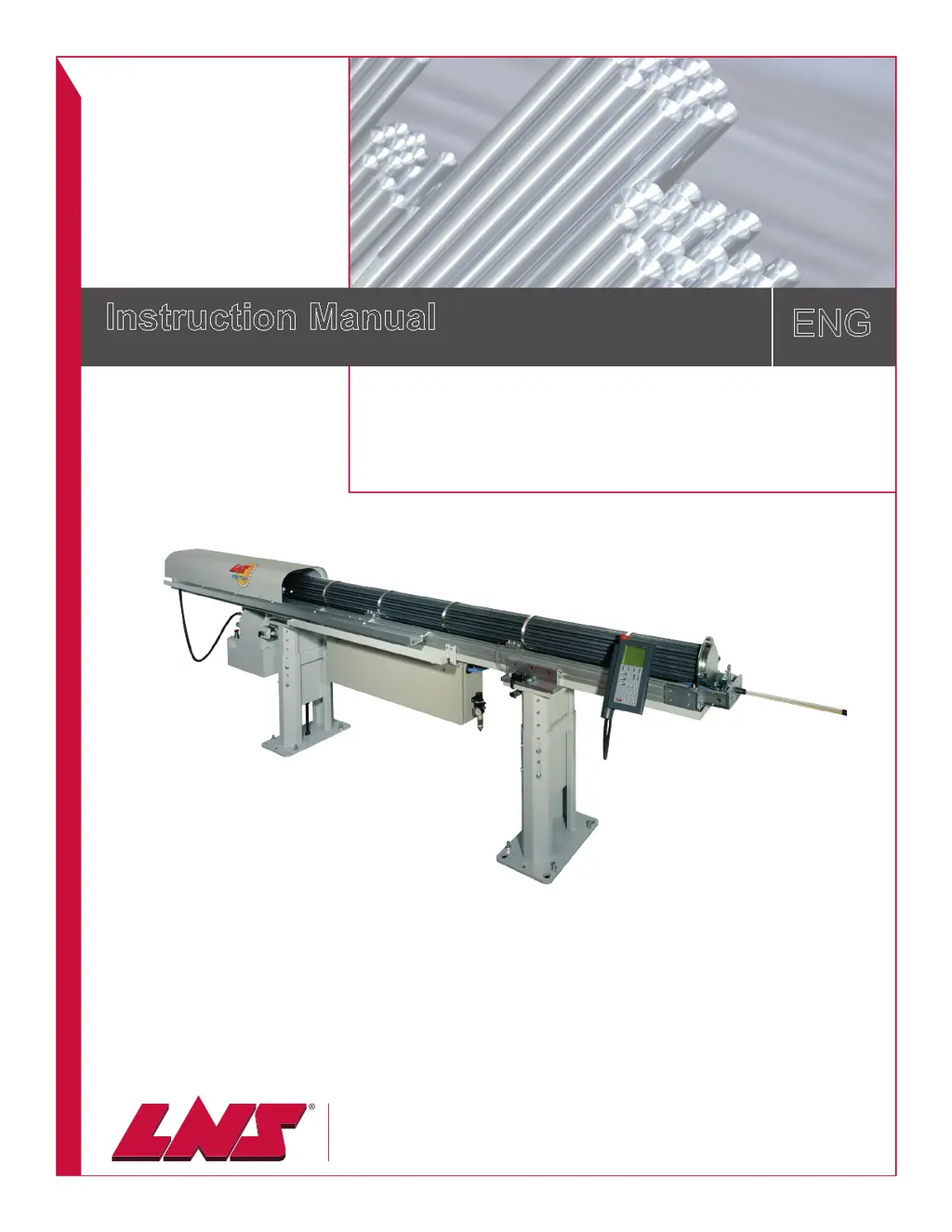

Introduction to the TRYTON 107/112 bar loader and its features.
Technical specifications and dimensions for various models like Tryton 112 CNC and 107 CAMES/CNC.
Diagrams showing space requirements for installing the bar feed system.
Diagram identifying all major components of the bar feed system.
Covers delivery, packaging, and unpacking procedures, including safety warnings.
Guidance on lifting the bar feeder with a hoist or forklift, including essential safety measures.
Procedure for aligning and mounting the bar feeder, including leveling and anchoring.
Instructions for securing the bar feed system to the ground using anchor points.
Steps for connecting the bar feeder to the lathe and compressed air.
Overview of electrical components and safety precautions for handling electrical parts.
Diagram identifying electrical components: remote control, cabinet, motors, switches, detectors.
Description of the stationary control for manual adjustments and its functions.
Information on wiring the hydraulic pump motor according to supply voltage.
Layout and description of components within the electrical control cabinet.
Details on interface connections, power supply, and signals between lathe and bar feeder.
Schematic diagrams illustrating the electrical circuits of the bar feed system.
Overview of pneumatic elements and their functions in the bar feeder system.
Description, layout, connection, and settings of the air filtering and pressure regulation unit.
Description, layout, manual operation, and air pressure switch for the pneumatic system.
Schematic diagram of the pneumatic system, showing valves and air flow.
Description and layout of hydraulic components for creating an oil film for bar guidance.
Information on the hydraulic filter, including part numbers and assembly details.
Description and layout of the barrel, including options like the hybrid barrel.
Description and layout of the connector, which lodges the pusher and feeds hydraulic fluid.
Description and layout of the pusher, its components, and article numbers for different diameters.
Description and layout of the movable vise, used for inserting and extracting material.
Description and procedure for using the optional loading arm to move the bar feeder.
Diagram and parts list for the cable drive assembly used for bar advancement.
Procedure for powering the bar feed system on and off, including safety precautions.
Description of the remote control interface, its segments, and functions.
Steps for setting up the bar feeder, including adjusting bar stock diameter, shape, and part length.
Procedures for making mechanical adjustments like changing collets, setting jaws, and end-of-bar position.
Procedure for changing collets and capacities for the hybrid barrel option.
Accessing and configuring parameters like language, setup functions, position, application, and misc. functions.
Accessing service parameters for configuring the bar feed system and interface, protected by password.
Description of the automatic production cycle and its steps.
Analysis of factors influencing bar feeder performance, including installation, alignment, and bar quality.
List of PLC alarms, their descriptions, and troubleshooting solutions.
Procedures for maintaining hydraulics, pneumatics, battery, mechanics, and cleaning the bar feed system.
Form for ordering spare parts or additional equipment for the bar feeder.
Example of CNC programming code for operating the bar feeder with a lathe.
Contact information and website links for LNS support in different regions.
