OPTIONAL ADAPTERS
Logicube Forensic Falcon™ User’s Manual 139

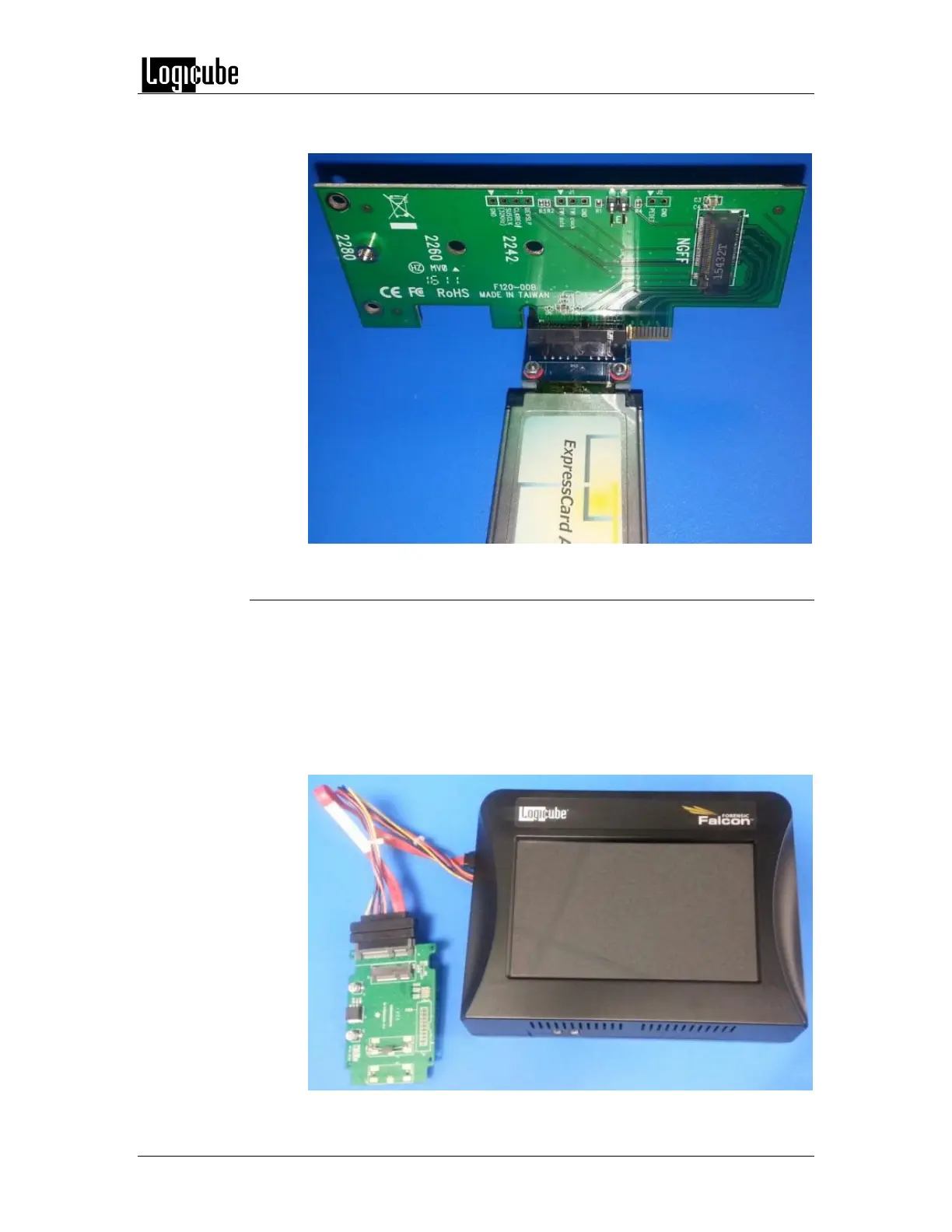

3. Connect the Mini PCIe to PCIe Adapter (F-ADP-MINI-PCIE) to the PCI
Express Card Adapter (F-ADP-PCI-EXP).
12.3.4 mSATA SSDs
mSATA SSDs require the mSATA to SATA Adapter (F-ADP-Z-MSATA) which
connects directly to any of the SAS/SATA cables supplied with the Falcon.
mSATA SSDs can be used as Source drives or Destination drives.
1. Connect the SSD to the mSATA to SATA Adapter (F-ADP-Z-MSATA).
2. Connect mSATA to SATA Adapter (F-ADP-Z-MSATA) to the desired
SAS/SATA port on the Falcon. The following ports can be used:
SAS_S1, SAS_S2, SAS_D1, or SAS_D2.
