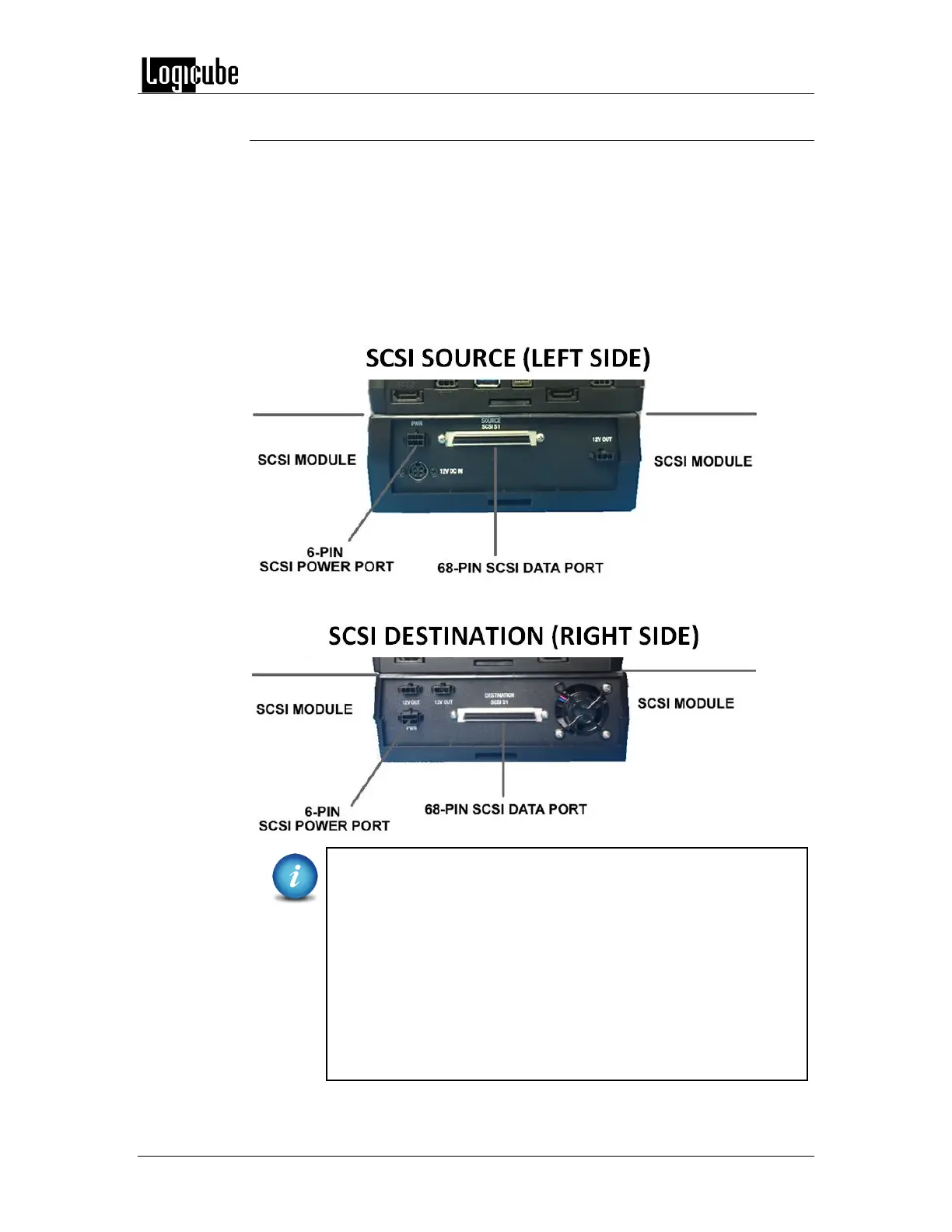

13.3.1 Connecting SCSI Source and Destination Drives
SCSI Source drives must be connected to the left side of the SCSI module. SCSI
Destination drives must be connected to the right side of the SCSI module.
Two cables are required to connect one standard 68-pin SCSI drive:
 68-pin data cable
 Drive power cable (CBL-EXT-PWR-04)
Simply connect the two cables to the SCSI module and connect the other side of
the cables to the SCSI drive.
50-pin and 80-pin adapters are available. Please contact Logicube
Sales to purchase these adapters.
For 50-pin drives, connect the 50-pin adapter between the 68-pin
data cable and the drive. To power 50-pin drives, connect the
drive power cable directly to the drive.
For 80-pin drives, connect the 80-pin adapter between the 68-pin
data cable and the 80-pin drive. To power 80-pin drives, connect
the drive power cable to the 80-pin adapter. The 80-pin drive has
a Single Connector Attachment (SCA) which provides the
transmission of both data and power.
