LSI GS550 Installer And User Manual

42
42
The GS550 System
The GS550 System
3.7
3.7
Display Settings
Display Settings
Program the display for operator preferences in
menu 3) DISPLAY SETTINGS.
3.7a Weight Units
The weight units for load display may be selected
according to operator preference. Length units are
associated with weight units by default; see the
table below.
1. Go to MENU 3A) WEIGHT UNITS.
2. Use Up and Down to select the weight units for
load display.
3. Press Menu to save changes, then press Next to
advance to the language adjustment page or
press Exit twice to return to the operation display.
Table: Weight Units
3.7b Wind Units
The wind units for wind display may be selected
according to operator preference.
1. Go to Menu 3B) WIND UNITS.
2. Use Up and Down to select the wind units for
wind display.
3. Press Menu to save changes, then Next to
advance to the language adjustment page or
press Exit twice to return to the operation display.
3.7c Language
Future versions of the GS550 will include different
display language options.
1. Go to menu 3C) DISPLAY LANGUAGE.
2. Press Up and Down to change the display
language.
3.7d Light Intensity
Adjust the intensity off the LEDs (light emitting
diodes) to facilitate viewing in bright sunlight or in
reduced visibility.
1. Go to menu 3D) LIGHT INTENSITY ADJUSTMENT.
2. Use Up and Down to adjust the intensity of the
lights.
3. Press Menu to save changes, then press Next to
advance to the contrast adjustment page or press
Exit twice to return to the operation display.
3.7e Contrast
Adjust the LCD contrast to optimize visibility.
1. Go to menu 3E) LCD CONTRAST ADJUSTMENT.
2. Use Up and Down to adjust the display
contrast.
3. Press Next to advance to the backlight
adjustment page or press Exit twice to return to
the operation display.
3.7f Backlight Mode
Adjust the LCD backlight control mode to conform
to viewing and power supply conditions.
1. Go to menu 3F) BACKLIGHT MODE.
2. Use Up and Down to select the backlight
control mode. The LCD backlight can be always
on, always off or on a four second timer. In the
four second timer mode the backlight will come
on for four seconds when any button is pressed.
3. Press Menu to save changes, then press Next to
advance to the backlight adjustment page or press
Exit twice to return to the operation display.
3.8
3.8
System Diagnostic
System Diagnostic
Diagnose system issues with the sub menus of
menu 5) SYSTEM DIAGNOSTIC.
3.8a System Sensors Diagnostic
1. Go to menu 5A1).
2. Use Back and Next to select the sensor.
3. Press Enter to see sensor data.
V: xxxx B: xx%
T: xx.x° P: xx R: xx%
Sensor value
Battery level
Radio power received
by the display
Radio power emitted
Internal temperature

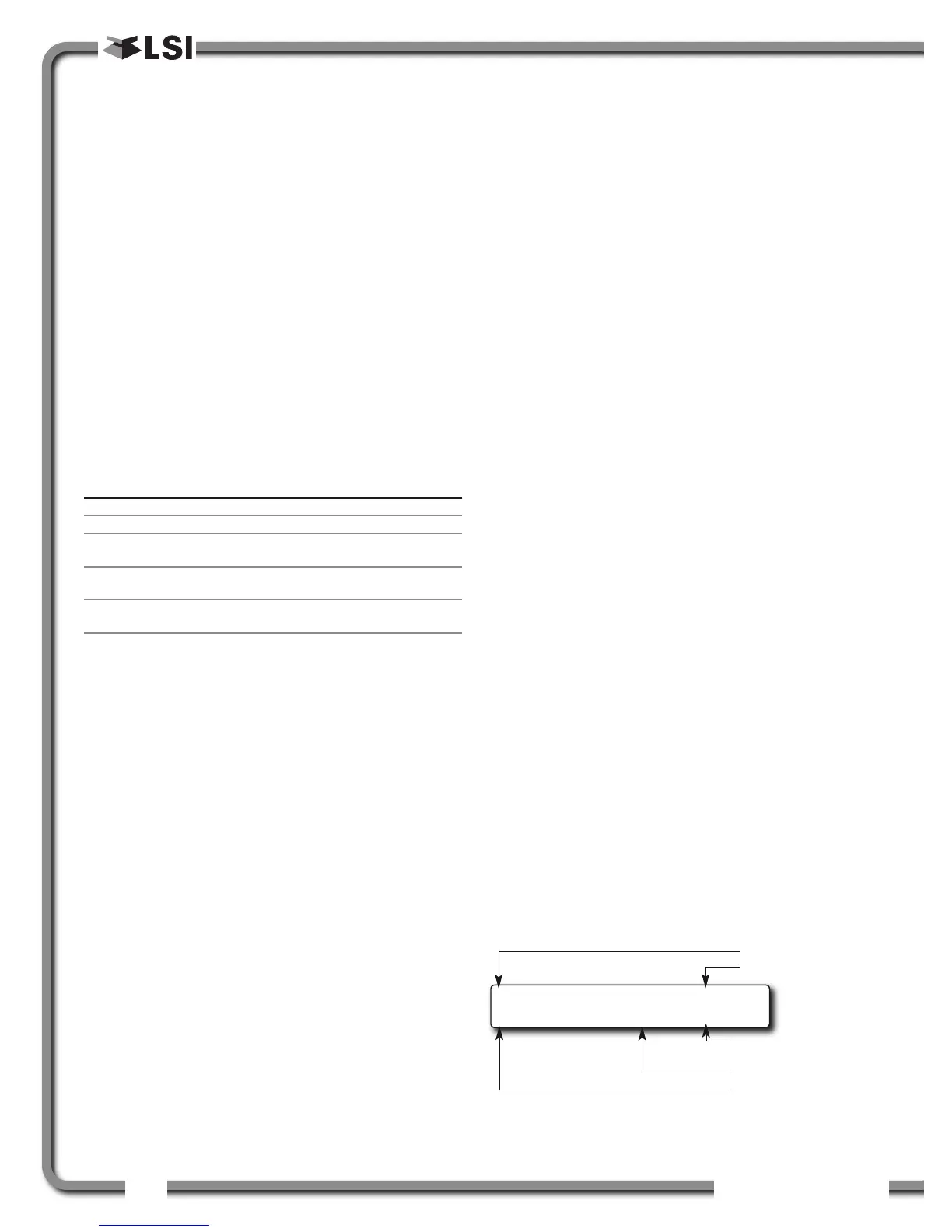

Figure: Sensor diagnostic data
Unit Equivalent Weight Length Unit
Notes
Pound (lb) 1 lb 0.4536 kg Foot (ft.)
Kilogram (kg) 2.205 lb 1 kg Metre (m)
Short ton (T) 2000 lb 907.2 kg Foot (ft.)
United States
Long ton (T) 2240 lb 1016 kg Foot (ft.)
United Kingdom
Tonne (t) 2205 lb 1000 kg Metre (m)
International System (SI)
