LSI GS550 Installer And User Manual

6
6

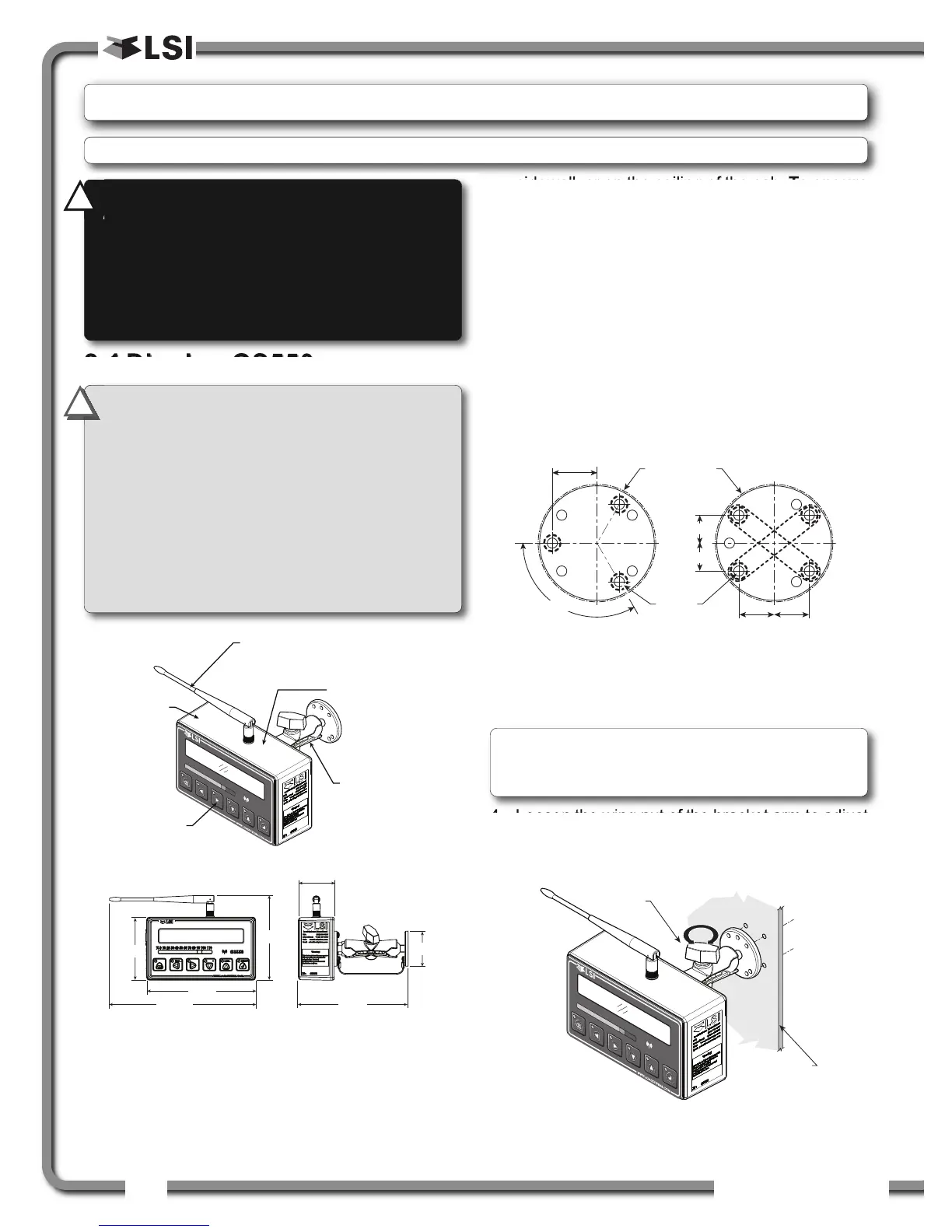

The GS550 System
The GS550 System
2.1
2.1
Display GS550
Display GS550
2.1a Mounting Bracket
1. Determine the mounting location; the display
may be installed either inside or outside the
cab. It can be mounted on the dash, on a
sidewall, or on the ceiling of the cab. To ensure
reliable radio communication between
sensors and the GS550, the antenna should
not be in contact with metal and should
have a direct and clear line of sight to the
sensor antenna. The mounting bracket
requires a flat surface of at least 2.5 inches in
diameter on both sides and where the back of
the surface is accessible in order to tighten the
nuts.
2. Drill 1/4 inch boltholes through the mounting
surface with a 1/4 inch bit following either the
two, three, or the four holes configuration.
3. Install the display with bolts. Add washers and lock
nut behind the mounting surface and tighten
sufficiently (bolts, nuts and washers not included).
4. Loosen the wing nut of the bracket arm to adjust
display orientation to facilitate viewing by the
operator and then tighten it back up.
TAR.
LIM.
MENU
GS550
%
010203040506070809010
0
110
Cab mounting
surface
Wing
Nut
Figure: Display mounting bracket footprint. Not to scale.
Figure: Install the display and adjust orientation
TAR.
LIM.
MENU
GS550
%
0 10 2030 40 50 607
0 80 90 100110
10.13
7.56
7.64
2.51
4.38
5.84
2.44
Adjustable
Ram-Bracket
with dual ball joints.
Part number:
LB002B
Rugged
aluminium
enclosure
Two way radio
system
Waterproof
design
Field replaceable
antenna
Part number: TA008
Figure: Display GS550
Figure: Display dimensions (inches). Not to scale.
0.750 0.750
0.906
ø0.218
ø2.5 in. min.
flat surface
120° TYP
0.594
0.594
IMPORTANT! Do not crack or puncture
the membrane fascia. The GS550 display is
splash and rain proof. Waterproofing depends in
part on the integrity of the membrane.
IMPORTANT! Do not power wash the
display. The GS550 display is not designed to
withstand high-pressure washing devices that
can erode the membrane fascia seal or create
fissures in the membrane fascia. Power washing
the display voids warranty coverage.
!
!
Note: If the nuts are on the outside of the cab,
caulk with silicone between the washers and the
cab to prevent water entry.
WARNING! Installation must be made in
compliance with
LSI
LSI instructions and using
LSI
LSI supplied components only. Failure to
install all parts, or replacing parts or
components with parts or components not
supplied by
LSI
LSI, may lead to system failure,
serious injury or death.
!
!
Note: Refer to the Operation section for detailed menu navigation instructions for all calibration procedures
2.
2.
INSTALLATION
INSTALLATION
