7.2b Ensuring Safe Operation in
Hazardous Areas
7.2c Product Repair And Servicing
LSI
LSI products have no replaceable or user
serviceable parts except the antenna and the
batteries. Suggested load cell maintenance
instructions are described in the Maintenance
section of this manual. For any other suspected
problems, damage or required servicing, please
contact your closest
LSI
LSI office.
7.3
7.3

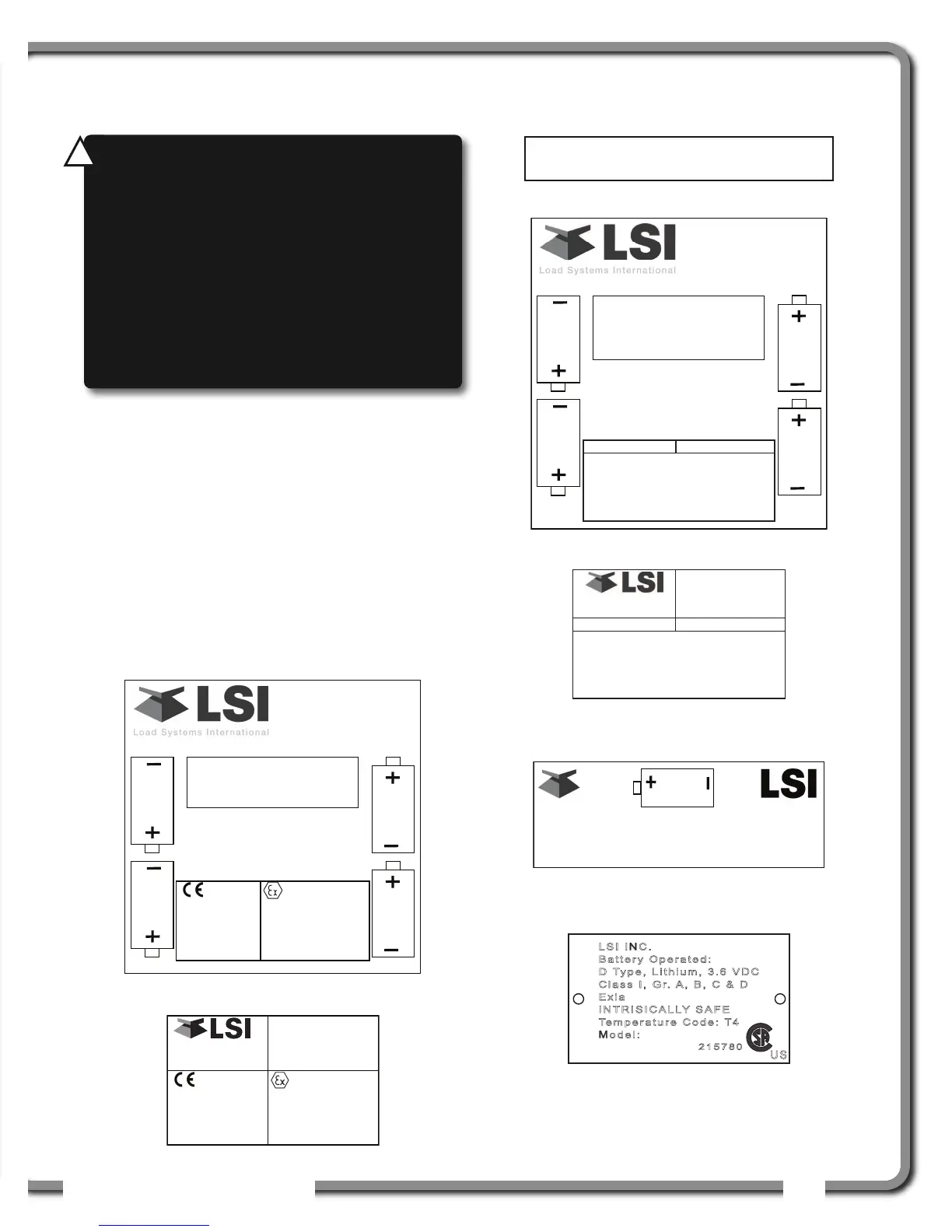

Equipment Markings
Equipment Markings
ATEX Part number (end with CSA-CE)
GS050;
GCxxx, GS001, GS002, GS005, GS010, GS020;
GS020;
FCC
GS050;
GCxxx, GS001, GS002, GS005, GS010, GS020;
Inside Battery Boxes: GCxxx, GS001, GS002,
GS005, GS010, GS020 (ATEX and FCC);
Intrinsically safe sensors have the following
stainless steel plate, p/n UB223;
Ignition hazard: "WARNING - POTENTIAL
ELECTROSTATIC CHARGING HAZARD”
WARNING!
•Equipment must be correctly installed
according to the instructions desbribed in
this manual and need to be installed in
locations providing adequate protection
from impact and external damage.
•Always make sure the system works
properly. Test all componenents before
using the crane. A description of display
status and warning lights is available in the
Operation section of this manual.
!
!
C
C
W
ARNING
!
Read the operator’s manual.
Test before every use.
Batteries: replace with “C” size alkaline
Duracell model #PC1400.
T
EST
: the light on the bottom must flicker red
and green when the cable is cycled in and out.
International:
+1 281 664 1330
Built in 2008
4495 Hamel Blvd,
suite 110, Québec,
QC, Canada
Serial number is on
the front
II 1 G Ex ia IIC T150
08ATEX0068 X Issuer: 0344
Exia IIC T150
WARNING – DO NOT
REPLACE BATTERY WHEN AN
EXPLOSIVE GAS
ATM OSPHERE MAY BE
PRESENT
C
C
Model №: GS050-CSA-CE
Anti-Two-Block
Switch
Load Systems
International Inc
Model №: GC012-CSA-CE
Load Cell 5.4 t (12 000 lb)
Single part line pull capacity
Please read reference
manual for details
Built in 2008
4495 Hamel Blvd, suite
110, Québec, QC,
Canada
Serial number is on the
front
II 1 G Ex ia IIC T4
08ATEX0068 Issuer: 0344
Exia IIC T4
WARNING – DO NOT
REPLACE BATTERY WHEN AN
EXPLOSIVE GAS ATMOSPHERE
MAY BE PRESENT
C
C
WARNING!
Read the operator’s manual.
Test before every use.
Batteries: “C” size lithium 3.6V or alkaline.
TEST: the light on the bottom must flicker red
and green when the cable is cycled in and out.
USA: (888) 819 4355
International: +1 281 664 1330
IC:7076A-ICGS050 FCC ID: QVBGS050
* This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any
interference received, including interference that
may cause undesired operation.
C
C
Model №: GS050
Anti-Two-Bloc
k
Switch
Load Systems
International Inc
Model №: GC012
Load Cell 12 000 lb
Single part line pull capacity
IC: 7076A-ICGS000 FCC ID: QVBGS000
* This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received,
including interference that may cause undesired
operation.
(ub219)
See manual for details.
Replace with Tadiran TL5930 lithium 3.6V battery. Use
non-corrosive RTV sensor safe silicone only. The use of other
silicones may void the warranty.
International Sales & Service (Houston, USA): 281-664-1330
LSI INC.
Battery Operated:
D Type, Lithium, 3.6 VDC
Class I, Gr. A, B, C & D
Exia
INTRISICALLY SAFE
Temper a t ure Co d e: T 4
Model:
215780
C US
