LSIS XEC-DR32H User Manual

Chapter 7 Input/Output Specifications

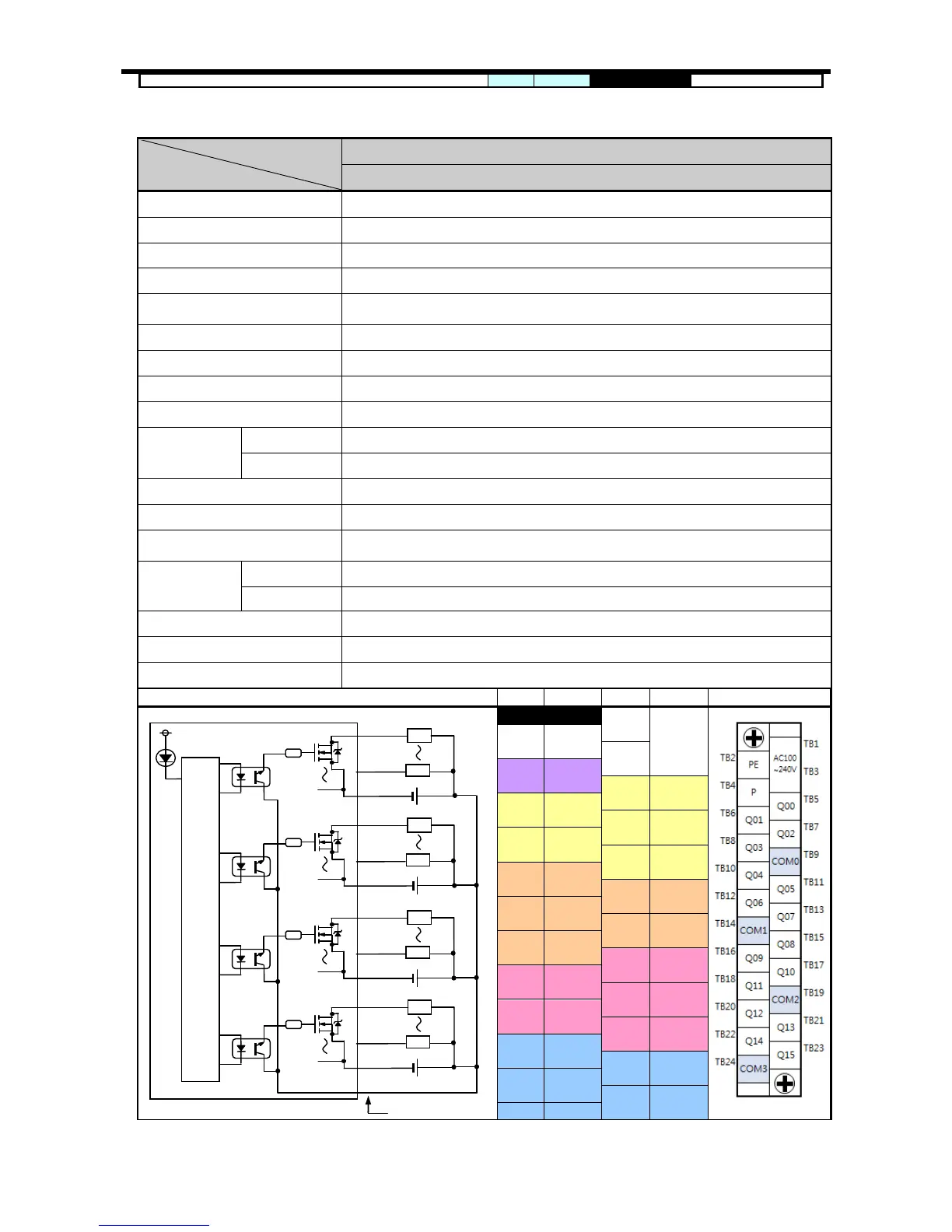

7.3.3 XEC-DN32H output unit (Sink type)
Model
Specification
Main unit
XEC-DN32H(/DC)
Output point 16 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Range of load voltage DC 10.2 ~ 26.4V
Max. load current
General output : 0.5A / 1 point
Output for positioning (%QX0.0.0~%QX0.0.3), 0.1A/1 point, 2A / 1COM
Off leakage current 0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
On max. voltage drop
DC 0.4V or less
Surge killer Zener diode
Response time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 4 point / COM
Proper cable size
Strand wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
Internal consumption
current
400 ㎃ (When all output are on)
External power
supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current
25 ㎃ or less (When connecting DC24V)
Operation indicator Output On, LED On
External connection method 24 point connecting connector (M3 X 6 screw)
Weight 500g
Circuit configuration
No.
Contact
No.
Contact
Type
TB1
AC100
~240V
TB2 PE
TB3
TB4 P
TB5 00
TB6 01
TB7 02
TB8 03
TB9 COM0
TB10 04
TB11 05
TB12 06
TB13 07
TB14 COM1
TB15 08
TB16 09
TB17 10
TB18 11
TB19 COM2
TB20 12
TB21 13
TB22 14
TB23 15
TB24
COM3
I
N
T
E
R
N
A
l
C
I
R
C
U
I
T
Terminal block no.
TB04
DC12/24V
R
TB05
TB08
TB09
DC12/24V
R
TB10
TB13
TB14
DC12/24V
R
TB15
TB18
TB19
DC12/24V
R
TB20
TB23
TB24
DC5V
7-11
