LSIS XEC-DR32H User Manual

Chapter 7 Input/Output Specifications

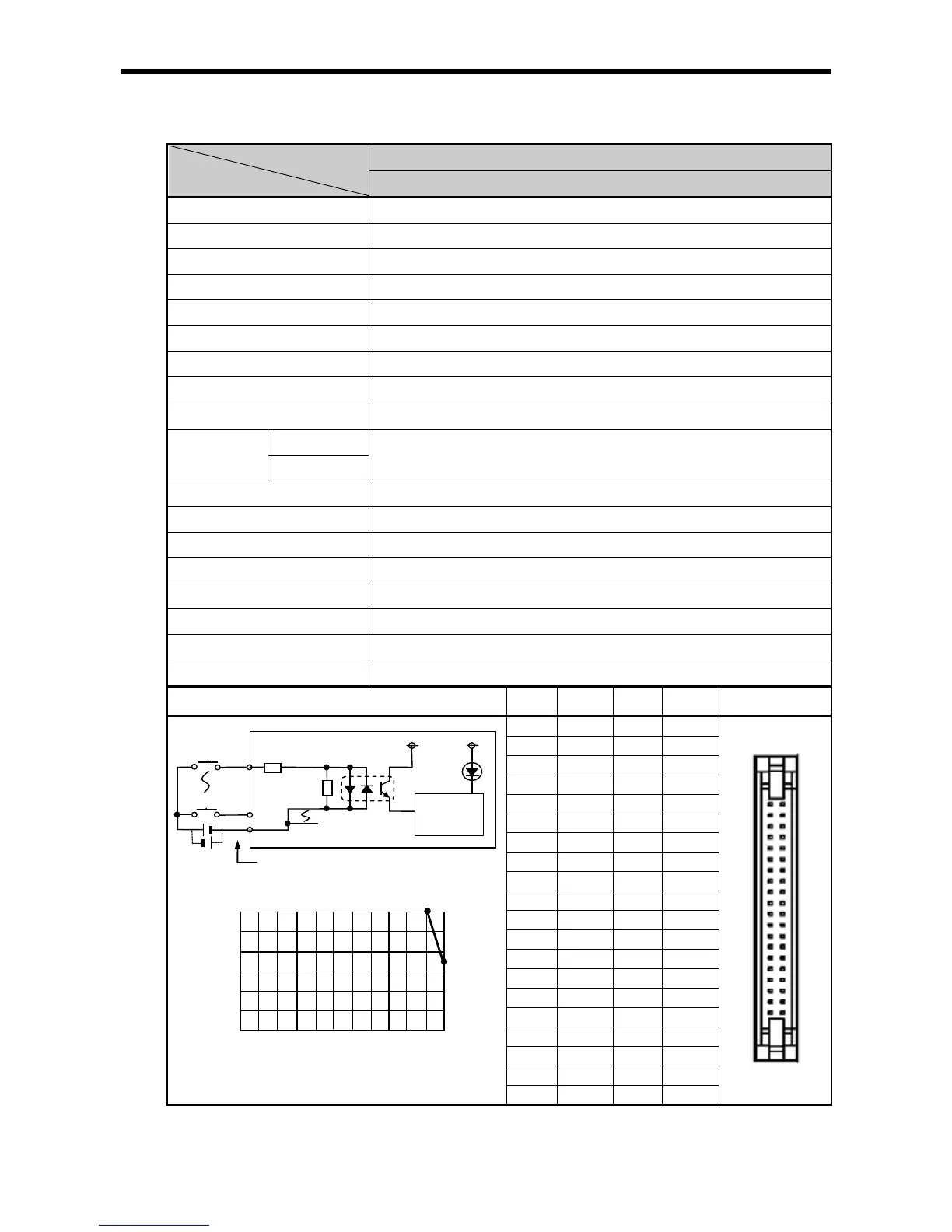

7.4.3 32 point DC24V input module (Source/Sink type)
Model
Specification
DC input module
XBE-DC32A
Input point 32 point
Insulation method Photo coupler insulation
Rated input voltage DC24V
Rated input current
About 4 ㎃
Operation voltage range DC20.4~28.8V (ripple rate < 5%)
Input Derating Refer to Derating diagram
On Voltage/Current
DC 19V or higher / 3 ㎃ or higher
Off Voltage/Current
DC 6V or less / 1
㎃
or less
Input resistance
About 5.6 ㏀
Response
time
Off → On
1/3/5/10/20/70/100 ㎳ (set by CPU parameter) Default:3 ㎳
On → Off
Insulation pressure AC 560Vrms / 3 Cycle (altitude 2000m)
Insulation resistance
10 ㏁ or more by Mega ohmmeter
Common method 32 point / COM
Proper cable size
0.3 ㎟
Current consumption 50 ㎃ (when all point On)
Operation indicator Input On, LED On
External connection method 40 pin connector
Weight 60g
Circuit configuration No.
Contact
No.
Contact
Type
B20
00
A20
10
B19
01
A19
11
B18
02
A18
12
B17
03
A17
13
B16
04
A16
14
B15
05
A15
15
B14
06
A14
16
B13
07
A13
17
B12
08
A12
18
B11
09
A11
19
B10
0A
A10
1A
B09
0B
A09
1B
B08
0C
A08
1C
B07
0D
A07
1D
B06
0E
A06
1E
B05
0F
A05
1F
B04
NC
A04
NC
B03
NC
A03
NC
B02
COM
A02
COM
B01
COM
A01
COM
DC28.8V
DC24V
Internal
circuit
R
1F
0
B20
COM
Photo coupler
Terminal block no.
B03
B02
R
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B09
B08
B07
B06
B05
B04
B03
B02
B01
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A09
A08
A07
A06
A05
A04
A03
A02
A01
100
80
60
40
0
10
20
30
40
50
55
℃
On rate (%)
Ambient temperature
(℃)
90
70
50
Input Derating diagram
7-18
