Chapter 2 System Configuration

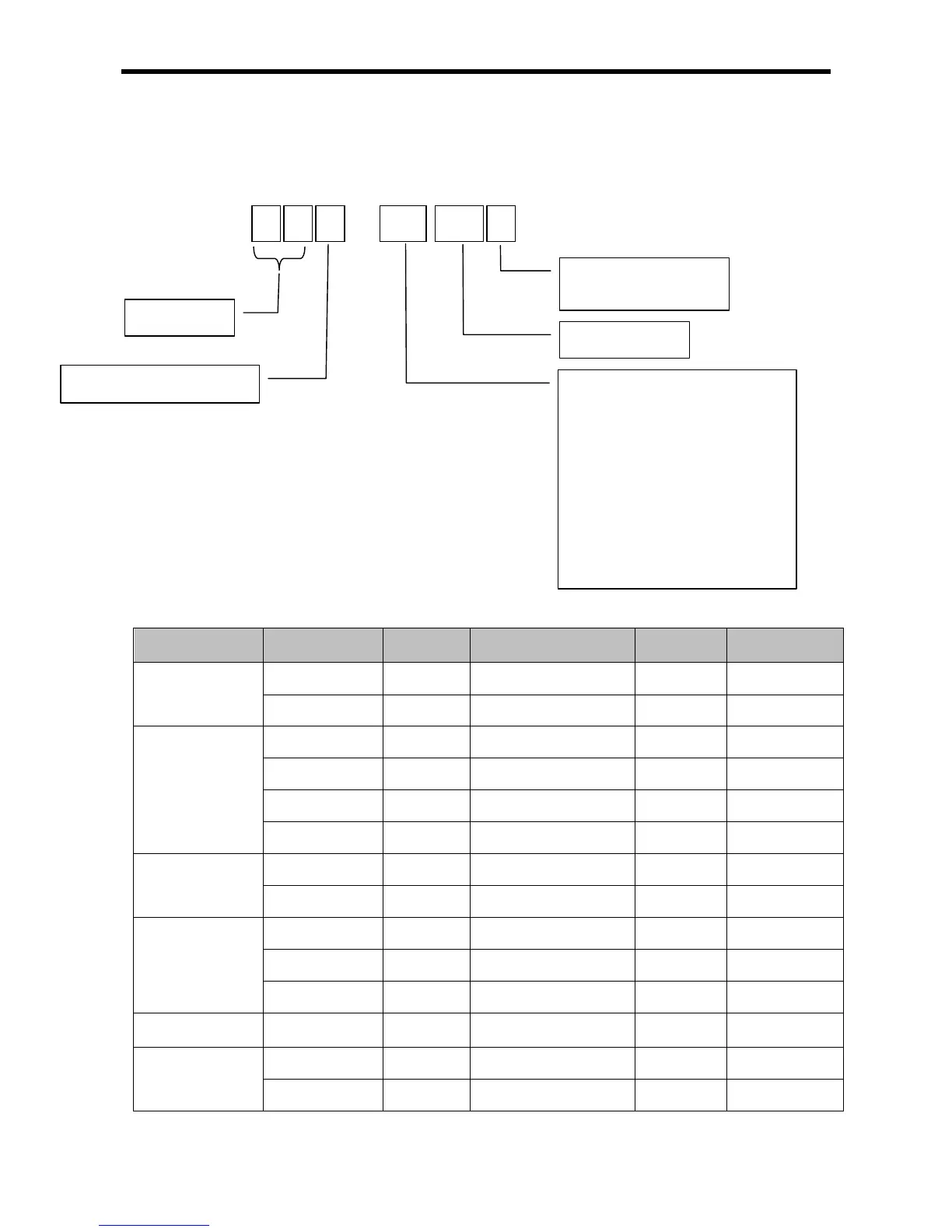

2.3.3 Classification and type of special module
Special module is classified as follows.
Classification Name
No. of
input ch.
Input type
No. of
output ch.
Output type
Analog input
XBF-AD04A 4 Voltage/Current None -
XBF-AD08A 8 Voltage/Current None
Analog output
XBF-DC04A None - 4 Current
XBF-DC04B None - 4 Current
XBF-DV04A None - 4 Voltage
XBF-AH04A 2 Voltage/Current 2 Voltage/Current
RTD input
XBF-RD04A 4 PT100/JPT100 None -
XBF-RD01A 1 PT100/JPT100 None -
TC input
XBF-TC04S 4 K, J, T, R None -
XBF-TC04RT 4 PT100/JPT100 4 Transister
XBF-TC04TT 4 K, J, T, R 4 Transister
Positioning
module
XBF-PD02A - Line Driver 2 Voltage
High Speed
Counter
XBF-HD02A 2 Line Driver
XBF-HO02A 2 Open Collector
X B F
-
AD X X A
Analog input (AD)
Analog voltage output (DC)
Analog current output (DV)
Analog combined module (AH)
RTD input (RD)
Thermocouple input (TC)
Line driver positioning module (PD)
No. of IO point
XGB series
Expansion special module
Non-insulation type (A)
Insulation type (S)
2-6
