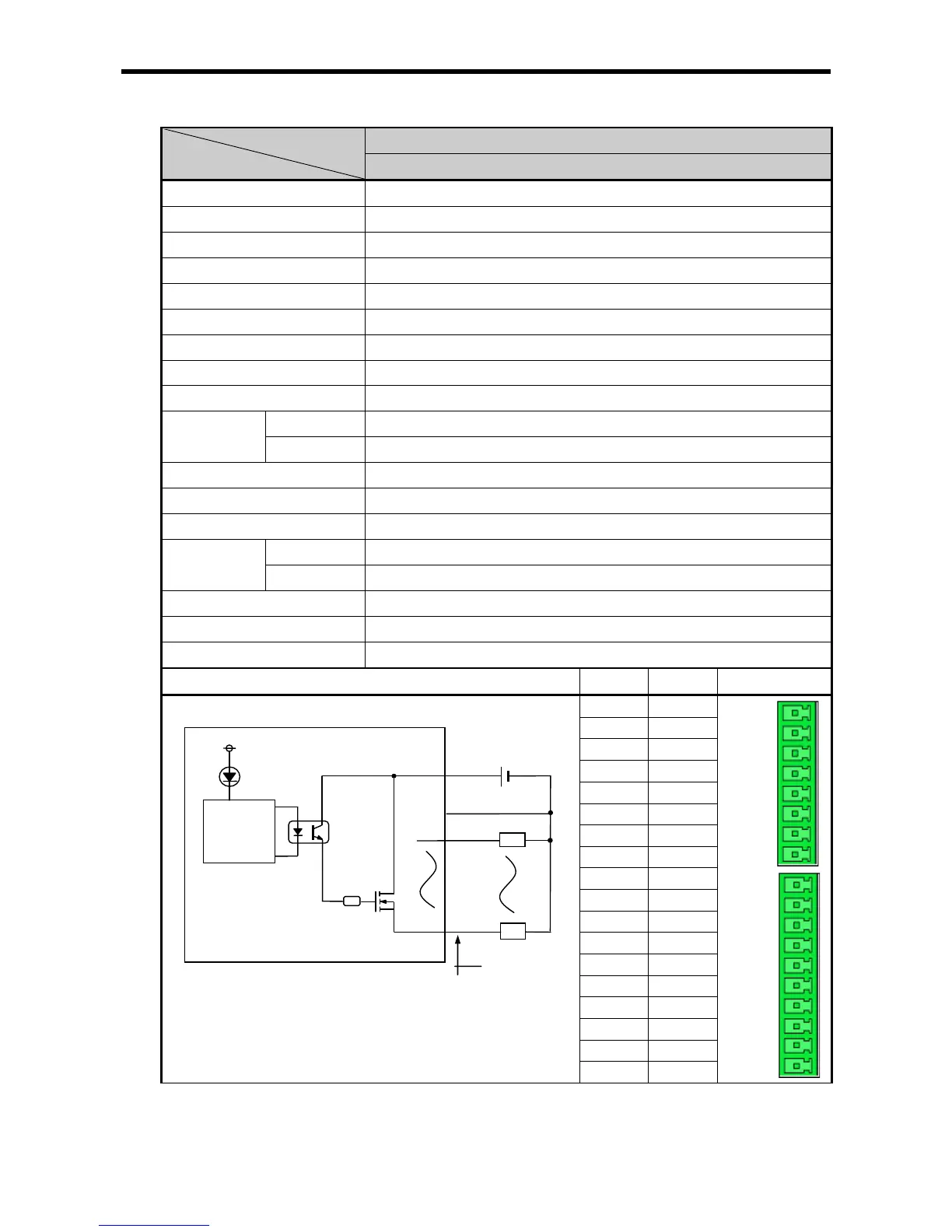

Transistor output module
XBE-TP16A
Output point 16 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Load voltage range DC 10.2 ~ 26.4V
Max. load voltage 0.5A / 1 point, 2A / 1COM
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop (On) DC 0.4V or less
Surge absorber Zener Diode
Response
time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 16 point / COM
Proper cable size
Stranded wire 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
Current consumption
60 ㎃ (when all point On)
External
power supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current 10 ㎃ or less (DC24V connection)
Operation indicator Output On, LED On
External connection method 8 pin connector + 10 pin connector
Weight 40g
Circuit configuration No.
Contact
Type
