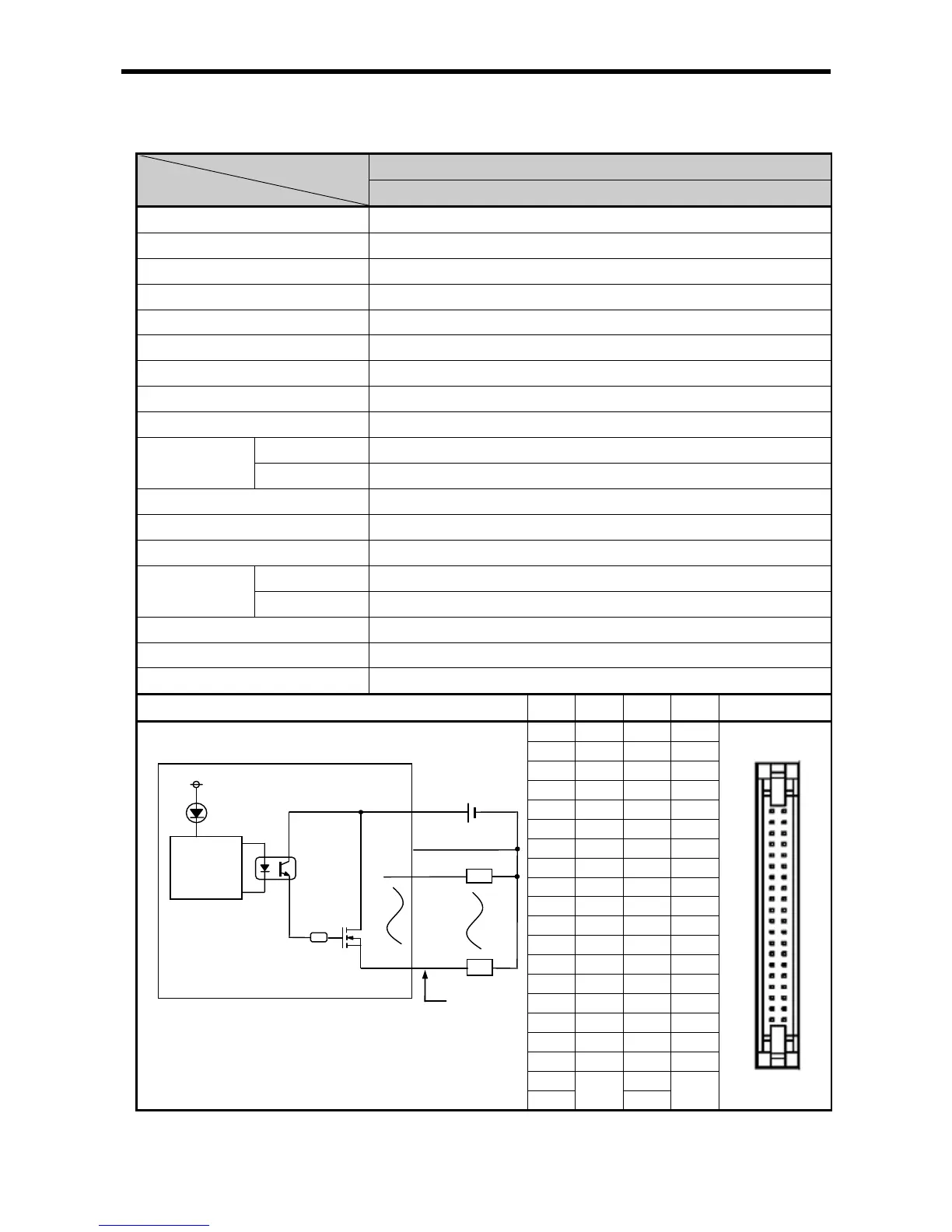

Transistor output module
XBE-TP32A
Output point 32 point
Insulation method Photo coupler insulation
Rated load voltage DC 12 / 24V
Load voltage range DC 10.2 ~ 26.4V
Max. load voltage 0.2A / 1 point, 2A / 1COM
Off leakage current
0.1 ㎃ or less
Max. inrush current
4A / 10 ㎳ or less
Max. voltage drop (On) DC 0.4V or less
Surge absorber Zener diode
Response time
Off → On
1 ㎳ or less
On → Off
1 ㎳ or less (Rated load, resistive load)
Common method 32 point / COM
Proper cable size
0.3 ㎟
Current consumption
120 ㎃ (when all point On)
External power
supply
Voltage
DC12/24V ± 10% (ripple voltage 4 Vp-p or less)
Current 20 ㎃ or less (DC24V connection)
Operation indicator Output On, LED On
External connection method 40 pin connector
Weight 60g
Circuit configuration No.
Contact
No.
Contact
To Next Page
