Chapter 5 Program Configuration and Operation Method
5.3.2 STOP mode
This is the mode in stop state without Program operation. It is available to transmit the program through XG5000
only in Remote STOP mode.
(1) Processing at Mode Change
Clear the output image area and execute output refresh.
(2) Operation Processing Contents
(a) Executes I/O refresh.
(b) Examines the normal operation or missing of built-in module.
(c) Communication service or other internal processing.
5.3.3 DEBUG mode
This is the mode to detect Program error or trace the operation process and the conversion to this mode is
available only in STOP mode. This is the mode to check the program execution state and the contents of each
data and verify the program.
(1) Processing at mode change
(a) Initializes the data area at the beginning of mode change.
(b) Clears the output image area and execute input refresh.
(2) Operation processing contents
(a) Executes I/O refresh.
(b) Debug operation according to setting state.
(c) After finishing Debug operation by the end of Program, execute output refresh.
(d) Examine the normal operation or missing of built-in module.
(e) Executes communication service or other service.

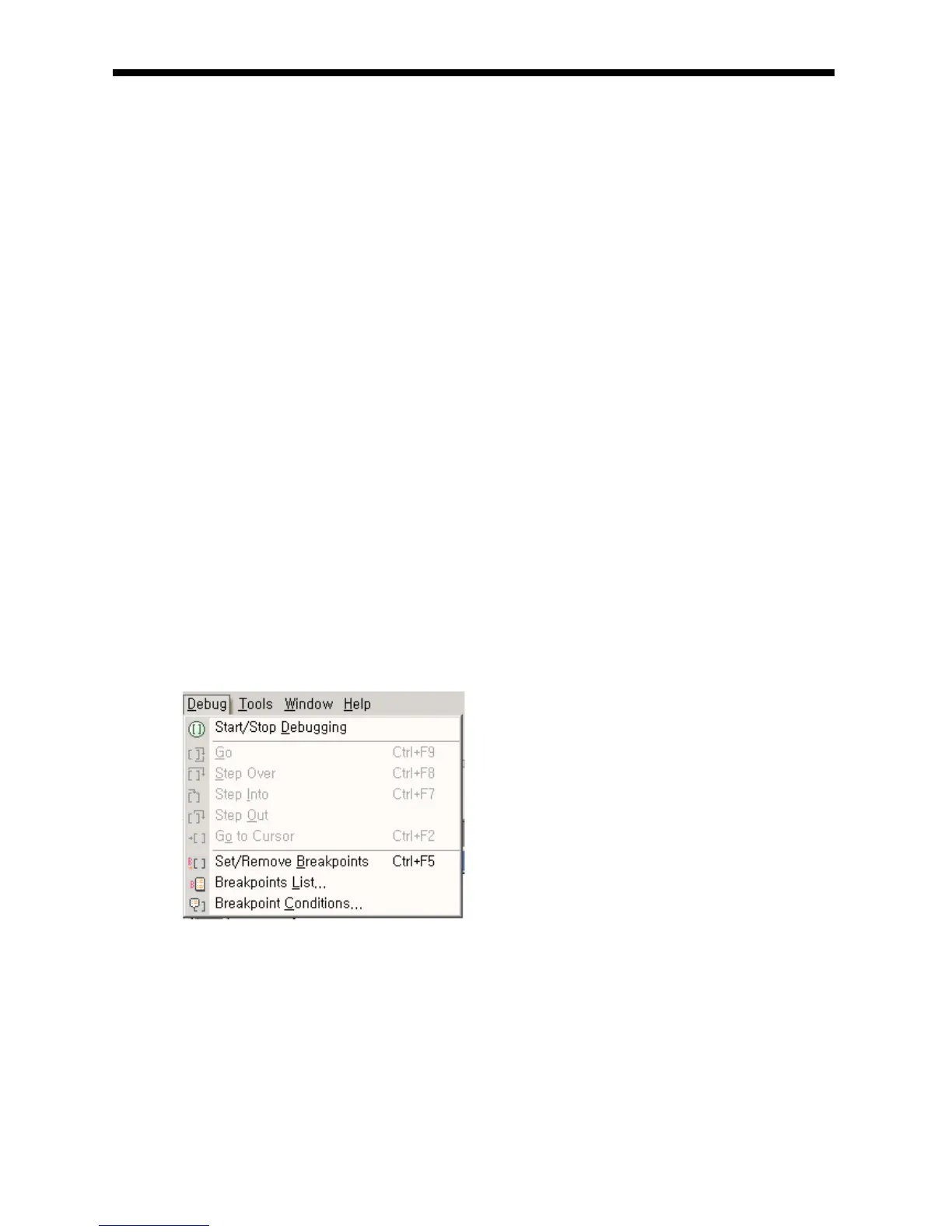

(3) Debug operation
It describes debug mode.
5- 20
